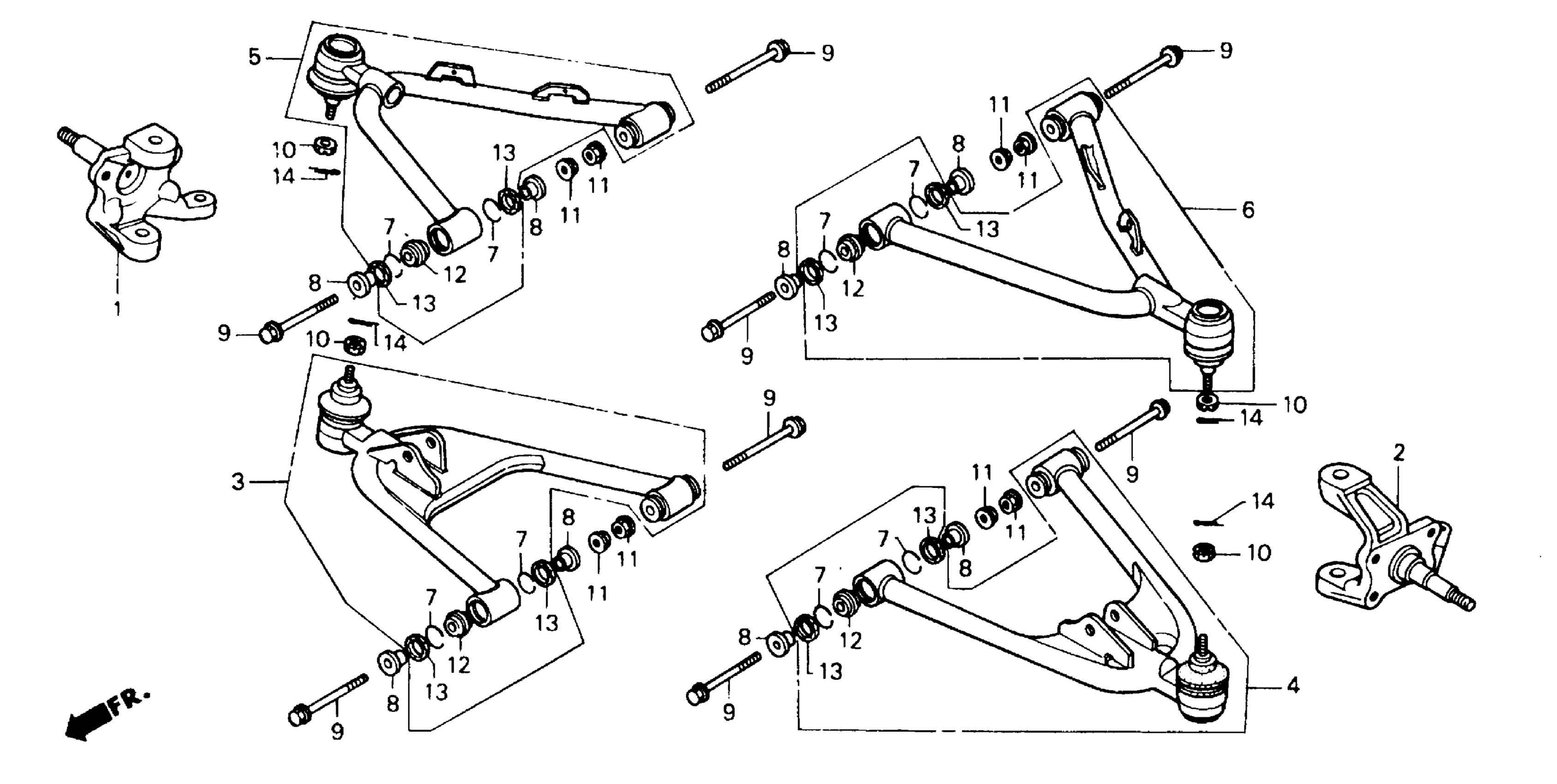

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 FRONT ARM Diagram

#

Description
Price

1

KNUCKLE, R. FR. This part replaces 51210-HE0-000.

51210-HE0-010

Unavailable

1

KNUCKLE, R. FR.

51210-HE0-010

Unavailable

2

KNUCKLE, L. FR. This part replaces 51220-HE0-000.

51220-HE0-010

Unavailable

2

KNUCKLE, L. FR.

51220-HE0-010

Unavailable

3

ARM ASSY., R. FR. (LOWER)

51350-HE0-000

Unavailable

4

ARM ASSY., L. FR. (LOWER)

51360-HE0-000

Unavailable

5

ARM ASSY., R. FR. (UPPER) This part replaces 51370-HE0-000.

51370-HE0-670

Unavailable

5

ARM ASSY., R. FR. (UPPER)

51370-HE0-670

Unavailable

6

ARM ASSY., L. FR. (UPPER) This part replaces 51380-HE0-000.

51380-HE0-670

Unavailable

6

ARM ASSY., L. FR. (UPPER)

51380-HE0-670

Unavailable

7

RING, STOPPER

51393-HB9-670

$4.98

8

COLLAR, FR. ARM PIVOT

51394-HC0-000

$11.26

9

BOLT, FLANGE (10X62)

90183-HC0-770

$10.50

10

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

11

NUT, CASTLE (10MM) NUT, SELF-LOCK (10MM)

90320-601-000

$9.85

12

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$38.29

12

BEARING, SPECIAL (10MM) (IKO)

91077-HB9-672

$38.29

13

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

$3.92

14

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

14

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

14

PIN, COTTER (3.0X45)

94201-30450

$1.49
