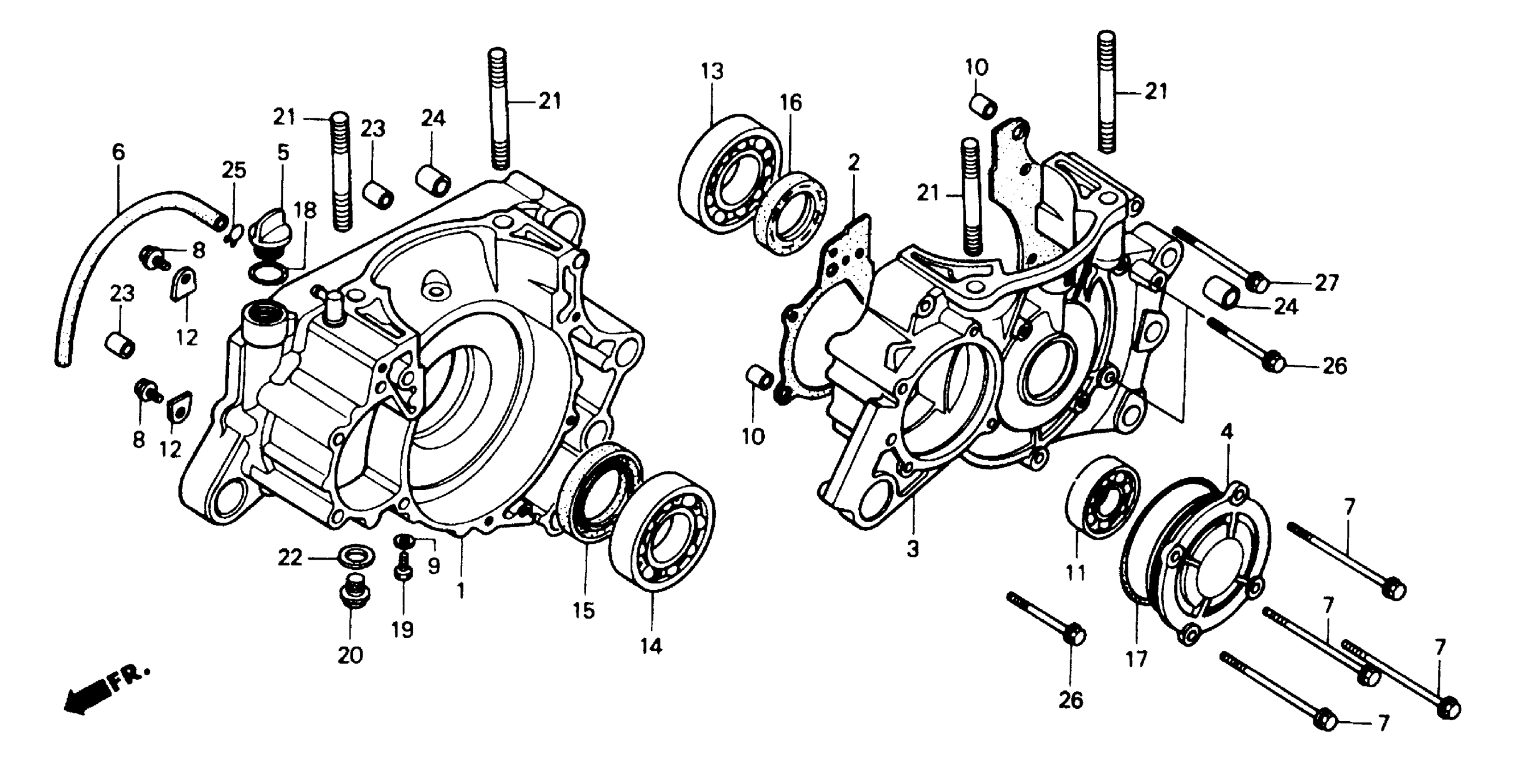

Honda FL400RA (89) PILOT, JPN, VIN# JH3TE160-KK000044 TO JH3TE160-KK004102 CRANKCASE Diagram

CRANKCASE, R. (NOT AVAILABLE)

11100-HE0-000

Unavailable

GASKET, CRANKCASE

11191-HE0-P00

Unavailable

GASKET, CRANKCASE This part replaces 11191-HE0-000.

11191-HE0-P00

Unavailable

GASKET, CRANKCASE This part replaces 11191-HE0-010.

11191-HE0-P00

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-HE0-000

Unavailable

HOLDER, BALANCER BEARING

11361-HE0-000

Unavailable

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

TUBE, BREATHER

17103-HE0-000

Unavailable

BOLT, FLANGE (6X96)

90003-PC9-000

$7.74

BOLT, SPECIAL FLANGE (6X14)

90028-MA6-000

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

PIN, DOWEL (10X28)

90701-HE0-000

Unavailable

BEARING, RADIAL BALL (S6205) (KOYO)

91002-HE0-003

$16.79

BEARING, RADIAL BALL (S6205) (KOYO) This part replaces 91002-HE0-004.

91002-HE0-003

$16.79

PLATE, BEARING SETTING

91012-HE0-000

Unavailable

BEARING, RADIAL BALL (6306) (C3)

91032-HE0-005

Unavailable

BEARING, RADIAL BALL (S6306 C3) (FUJIKOSHI)

91033-HE0-005

Unavailable

OIL SEAL (42X65X11) (ARAI)

91203-HE0-003

Unavailable

OIL SEAL (30X45X8) (ARAI)

91203-KS6-004

$15.27

OIL SEAL (30X45X8) (ARAI) This part replaces 91204-HE0-003.

91203-KS6-004

$15.27

O-RING (74.5X2.5) This part replaces 91301-PH8-000.

91301-PH8-005

$10.25

O-RING (74.5X2.5)

91301-PH8-005

$10.25

O-RING (74.5X2.5) This part replaces 91301-PH8-010.

91301-PH8-005

$10.25

O-RING (16MM)

91303-800-000

$2.23

BOLT, RECESSED (6X28)

92301-06028-0A

Unavailable

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

BOLT 2, STUD (10X45)

92900-10045-3B

$2.15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (10X16)

94301-10160

$2.28

PIN A, DOWEL (14X20)

94301-14200

$2.28

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X80)

95701-06080-00

$2.34
