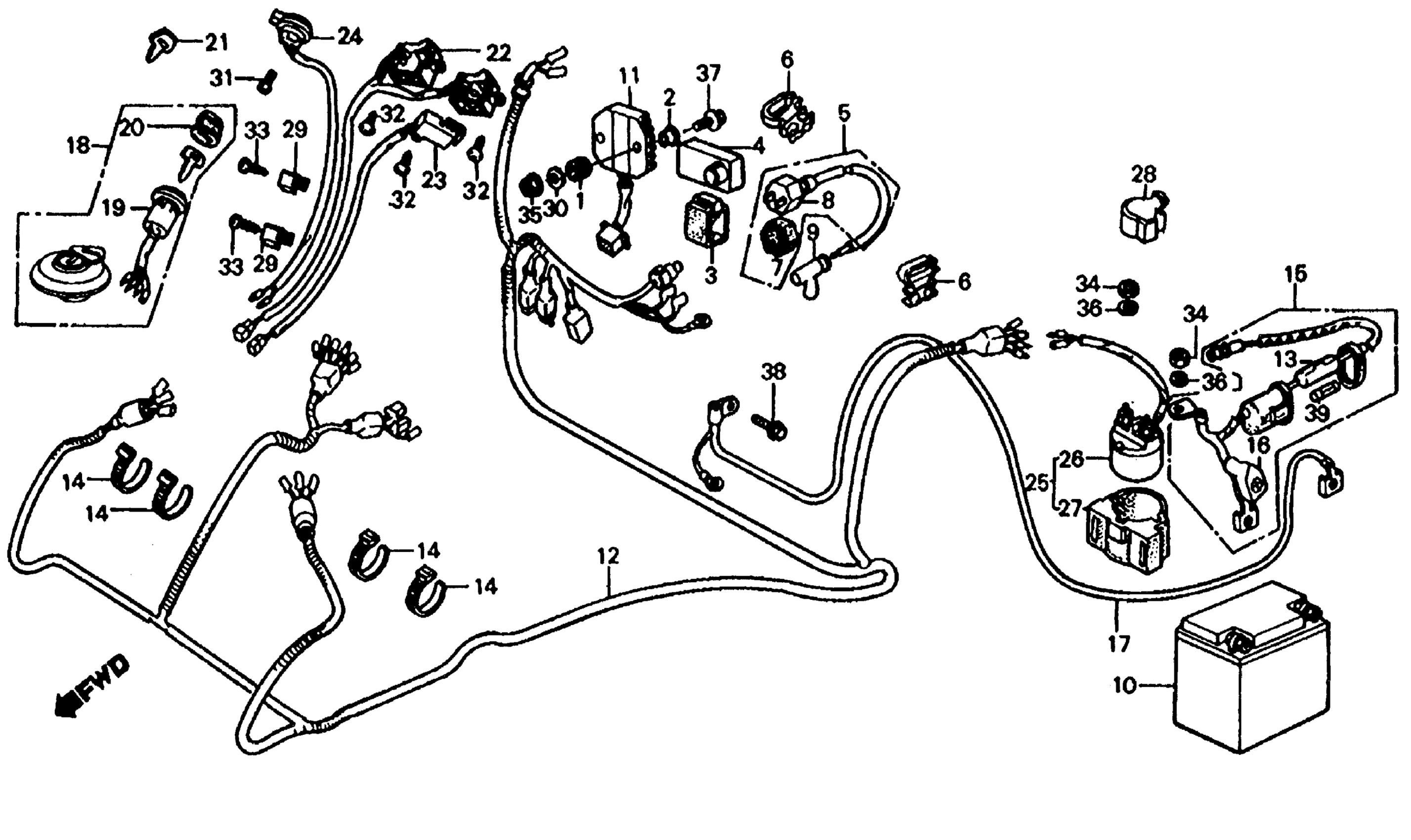

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 WIRE HARNESS + IGNITION COIL + SWITCH - BATTERY Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.77

2

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.08

2

COLLAR, FUEL TANK SETTING This part replaces 17535-166-000.

17535-KE7-000

$3.08

3

RUBBER, IGNITION CONTROL MODULE

30401-VM0-000

$3.92

4

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-VM0-771

Unavailable

5

COIL ASSY., IGNITION

30500-VM0-000

Unavailable

6

CLAMP, IGNITION CABLE

30505-VM0-003

Unavailable

7

SUSPENSION, IGNITION COIL This part replaces 30506-KK4-000.

30506-VM6-000

Unavailable

7

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

8

COIL, IGNITION

30510-KT0-405

$69.43

8

COIL, IGNITION This part replaces 30510-VM0-000.

30510-KT0-405

$69.43

8

COIL, IGNITION This part replaces 30510-402-720.

30510-KT0-405

$69.43

9

CAP ASSY., NOISE SUPPRESSOR

30700-VM0-013

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-017.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-681.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-682.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-683.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-685.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HA0-686.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HF1-677.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-HF1-678.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-KM1-830.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-KM1-832.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-KM1-834.

31500-HS0-AK1AH

Unavailable

10

BATTERY (YTX12-BS) This part replaces 31500-723-981.

31500-HS0-AK1AH

Unavailable

11

RECTIFIER ASSY., REGULATOR

31600-KC2-405

Unavailable

11

RECTIFIER ASSY., REGULATOR This part replaces 31600-VM0-000.

31600-KC2-405

Unavailable

12

WIRE HARNESS (NOT AVAILABLE)

32100-VM0-000

Unavailable

13

CASE, FUSE CONNECTOR

32111-230-000

$4.09

14

BAND, WIRE (NOT AVAILABLE)

32161-VM0-770

Unavailable

15

CABLE, BATTERY RELAY (NOT AVAILABLE)

32401-VM0-770

Unavailable

16

COVER, BATTERY TERMINAL

32412-VM0-000

Unavailable

17

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-VM0-000

Unavailable

18

LOCK SET This part replaces 35010-VM0-000.

35010-VM0-020

Unavailable

18

LOCK SET This part replaces 35010-VM0-010.

35010-VM0-020

Unavailable

18

LOCK SET

35010-VM0-020

Unavailable

19

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-VM0-003

Unavailable

20

CAP, COMBINATION SWITCH KEY (NOT AVAILABLE)

35113-VM0-000

Unavailable

21

KEY,BLANK (NO.1) This part replaces 35121-086-811.

35121-GW0-731

$8.47

21

KEY,BLANK (NO.2) This part replaces 35122-086-811.

35122-GW0-731

Unavailable

22

SWITCH ASSY., HEADLIGHT (NOT AVAILABLE)

35200-VM0-770

Unavailable

23

SWITCH ASSY., STARTER (NOT AVAILABLE)

35250-VM0-003

Unavailable

24

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

35300-VM0-003

Unavailable

25

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE) | Use from Frame SN FC106845 This part replaces 35850-VM0-770.

35850-VM0-771

Unavailable

25

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE) | Use from Frame SN FC106845

35850-VM0-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC | Use up to Frame SN FC106844 This part replaces 35850-HB3-000.

35850-HB3-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC This part replaces 35850-HB3-000.

35850-HB3-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC | Use up to Frame SN FC106844

35850-HB3-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC | Use up to Frame SN FC106844 This part replaces 35851-VM0-770.

35850-HB3-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC | Use up to Frame SN FC106844 This part replaces 35851-VM0-771.

35850-HB3-771

Unavailable

26

SWITCH ASSY., STARTING MAGNETIC This part replaces 35851-VM0-771.

35850-HB3-771

Unavailable

27

RUBBER, MAGNETIC SHOCK

35856-425-000

$9.79

28

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-VM0-000

Unavailable

29

CLAMP, STEERING WHEEL WIRE

53125-VM0-770

Unavailable

30

WASHER (6MM)

90501-MA6-000

Unavailable

31

SCREW, PAN (3X5)

93500-03005-0H

Unavailable

32

SCREW, TAPPING (4X10)

93901-34220

$0.78

33

SCREW, TAPPING (4X12)

93901-34320

$0.81

34

NUT, HEX. (6MM)

94002-06000-0S

$1.19

35

NUT, FLANGE (6MM)

94050-06000

$0.59

36

WASHER, SPRING (6MM)

94111-06800

$1.03

37

BOLT, FLANGE (6X30) This part replaces 95700-06030-00.

95701-06030-00

$1.71

37

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

38

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.03

38

BOLT, FLANGE (8X12)

95701-08012-00

$1.03

39

FUSE B (15A)

98200-21500

$0.97
