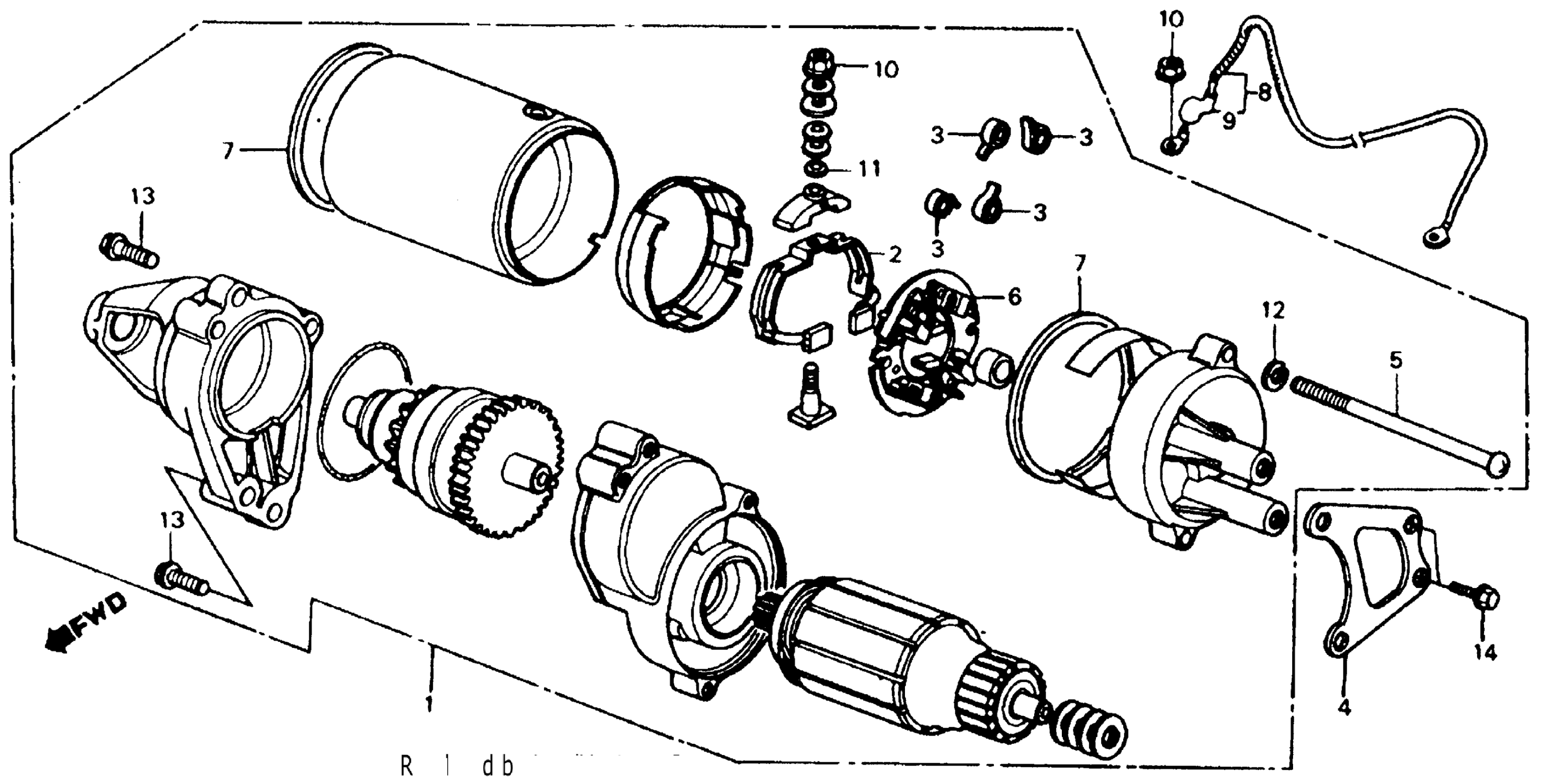

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. This part replaces 31200-VM0-003.

31200-VM0-405

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$28.39

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MA6-000.

31201-KG7-000

$28.39

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.22

4

STAY, STARTER MOTOR (NOT AVAILABLE)

31204-VM0-000

Unavailable

5

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

Unavailable

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

Unavailable

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

7

RING, SEAL

31207-179-711

$3.93

8

CABLE, STARTER MOTOR (NOT AVAILABLE)

32402-VM0-000

Unavailable

9

COVER, TERMINAL

32413-VM0-000

Unavailable

10

NUT-WASHER (6MM)

90071-MB0-000

$1.88

11

O-RING

91320-MB0-000

$2.20

12

WASHER, SPRING (5MM)

94111-05000

$1.03

13

BOLT, FLANGE (6X25)

95701-06025-08

$1.64

13

BOLT, FLANGE (6X25) This part replaces 95900-06025-08.

95701-06025-08

$1.64

14

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

14

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
