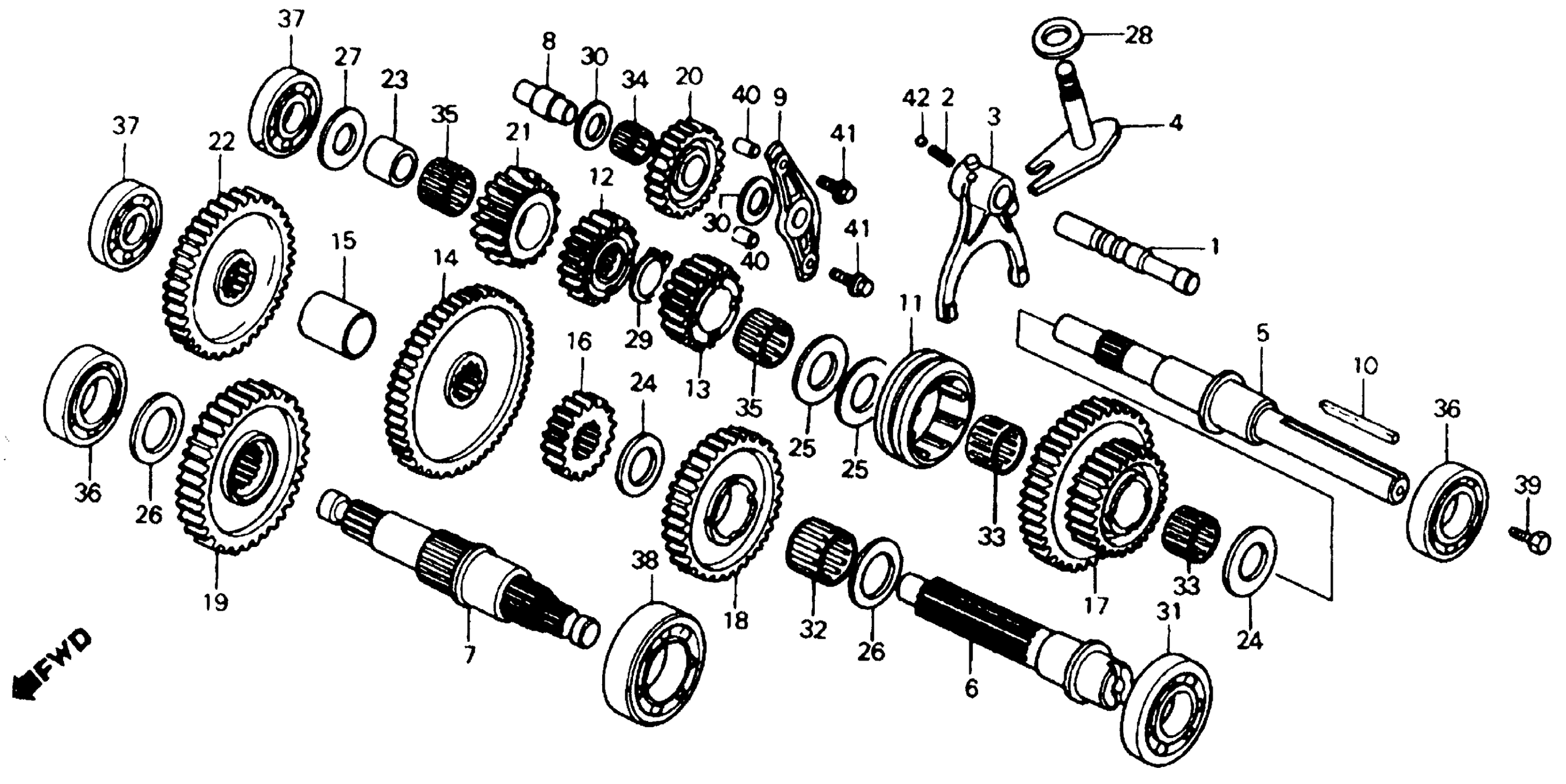

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 REDUCTION PRIMARY SHAFT + COUNTERSHAFT Diagram

#

Description
Price

1

SHAFT, SHIFT FORK (NOT AVAILABLE)

24111-VM0-000

Unavailable

2

SPRING, BALL SETTING This part replaces 24271-719-010.

24271-765-000

$2.10

2

SPRING, BALL SETTING

24271-724-000

Unavailable

2

SPRING, BALL SETTING

24271-765-000

$2.10

3

FORK, REDUCTION SHIFT (NOT AVAILABLE)

24511-VM0-770

Unavailable

4

ARM, GEARSHIFT

24516-VM0-000

Unavailable

5

SHAFT, PRIMARY (NOT AVAILABLE)

40511-VM0-000

Unavailable

6

COUNTERSHAFT (NOT AVAILABLE)

40513-VM0-000

Unavailable

7

SHAFT, FINAL (NOT AVAILABLE)

40515-VM0-000

Unavailable

8

SHAFT, REVERSE

40517-VM0-000

Unavailable

9

PLATE, REVERSE SHAFT

40518-VM0-000

Unavailable

10

KEY, SPECIAL (NOT AVAILABLE)

40527-950-000

Unavailable

11

SELECTOR, GEAR (NOT AVAILABLE) This part replaces 41151-VM0-000.

41151-VM0-020

Unavailable

11

SELECTOR, GEAR (NOT AVAILABLE) This part replaces 41151-VM0-010.

41151-VM0-020

Unavailable

11

SELECTOR, GEAR (NOT AVAILABLE)

41151-VM0-020

Unavailable

12

HUB, SELECTOR (NOT AVAILABLE) | Use up to Engine SN 2007191 This part replaces 41152-VM0-000.

41152-VM0-010

Unavailable

12

HUB, SELECTOR (NOT AVAILABLE) | Use from Engine SN 2007192

41152-VM0-010

Unavailable

13

GEAR, PRIMARY (18T) (C) (NOT AVAILABLE) | Use up to Engine SN 2010774 This part replaces 41155-VM0-000.

41155-VM0-020

Unavailable

13

GEAR, PRIMARY (18T) (C) (NOT AVAILABLE) | Use from Engine SN 2010775 This part replaces 41155-VM0-010.

41155-VM0-020

Unavailable

13

GEAR, PRIMARY (18T) (C) (NOT AVAILABLE)

41155-VM0-020

Unavailable

14

GEAR, COUNTERSHAFT (50T) (C)

41161-VM0-000

Unavailable

15

COLLAR, COUNTERSHAFT (NOT AVAILABLE)

41165-VM0-000

Unavailable

16

GEAR, COUNTERSHAFT (17T) (B) (NOT AVAILABLE)

41171-VM0-000

Unavailable

17

GEAR, PRIMARY (A.B. 24T.39T) (NOT AVAILABLE)

41180-VM0-770

Unavailable

18

GEAR, COUNTERSHAFT (31T) (A) (NOT AVAILABLE)

41201-VM0-000

Unavailable

19

GEAR, FINAL (37T) (NOT AVAILABLE)

41211-VM0-000

Unavailable

20

GEAR, REVERSE (23T) (NOT AVAILABLE)

41221-VM0-000

Unavailable

21

GEAR, PRIMARY (18T) (D) (NOT AVAILABLE) | Use up to Engine SN 2010774 This part replaces 41225-VM0-000.

41225-VM0-020

Unavailable

21

GEAR, PRIMARY (18T) (D) (NOT AVAILABLE) | Use from Engine SN 2010775 This part replaces 41225-VM0-010.

41225-VM0-020

Unavailable

21

GEAR, PRIMARY (18T) (D) (NOT AVAILABLE)

41225-VM0-020

Unavailable

22

GEAR, COUNTERSHAFT (44T) (D)

41231-VM0-000

Unavailable

23

COLLAR, PRIMARY SHAFT

41245-VM0-000

Unavailable

24

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

25

WASHER, THRUST (22X40X1)

90452-VM0-000

Unavailable

26

WASHER, THRUST (30X40X2) (NOT AVAILABLE)

90455-VM0-000

Unavailable

27

WASHER, THRUST (17.5MM) This part replaces 90457-VM0-000.

90539-VD6-000

Unavailable

27

WASHER, THRUST (17.5MM)

90539-VD6-000

Unavailable

28

WASHER, THRUST (14X30X2.5) (NOT AVAILABLE)

90458-VM0-000

Unavailable

29

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

30

WASHER (12MM)

90608-072-000

$3.80

31

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

31

BEARING, RADIAL BALL (63/28) This part replaces 91022-VM0-008.

91009-HC0-003

$31.43

32

BEARING, NEEDLE (30X35X20) This part replaces 91023-VM0-004.

91025-KT7-003

$22.11

32

BEARING, NEEDLE (30X37X20)

91025-KT7-003

$22.11

33

BEARING, NEEDLE (25X31X17) (NOT AVAILABLE)

91024-VM0-004

Unavailable

34

BEARING, NEEDLE (15X19X12) (NOT AVAILABLE)

91025-VM0-004

Unavailable

35

BEARING, NEEDLE (22X27X20)

91007-HB3-013

$24.08

35

BEARING, NEEDLE (22X27X20) This part replaces 91026-VM0-004.

91007-HB3-013

$24.08

35

BEARING, NEEDLE (22X27X20) This part replaces 91026-VM0-008.

91007-HB3-013

$24.08

36

BEARING, RADIAL BALL (6206) This part replaces 91034-VM0-008.

96100-62060-00

$23.53

36

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53

37

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

37

BEARING, BALL (6303) (KOYO) This part replaces 91035-VM0-008.

91011-MB0-003

$30.64

38

BEARING, RADIAL BALL (6207) This part replaces 91036-VM0-008.

96100-62070-00

$37.75

38

BEARING, RADIAL BALL (6207)

96100-62070-00

$37.75

39

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

39

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

39

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

40

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

41

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

41

BOLT, FLANGE (6X32) This part replaces 95900-06032-08.

95701-06032-08

$1.89

42

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
