- FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015
REAR SWINGARM

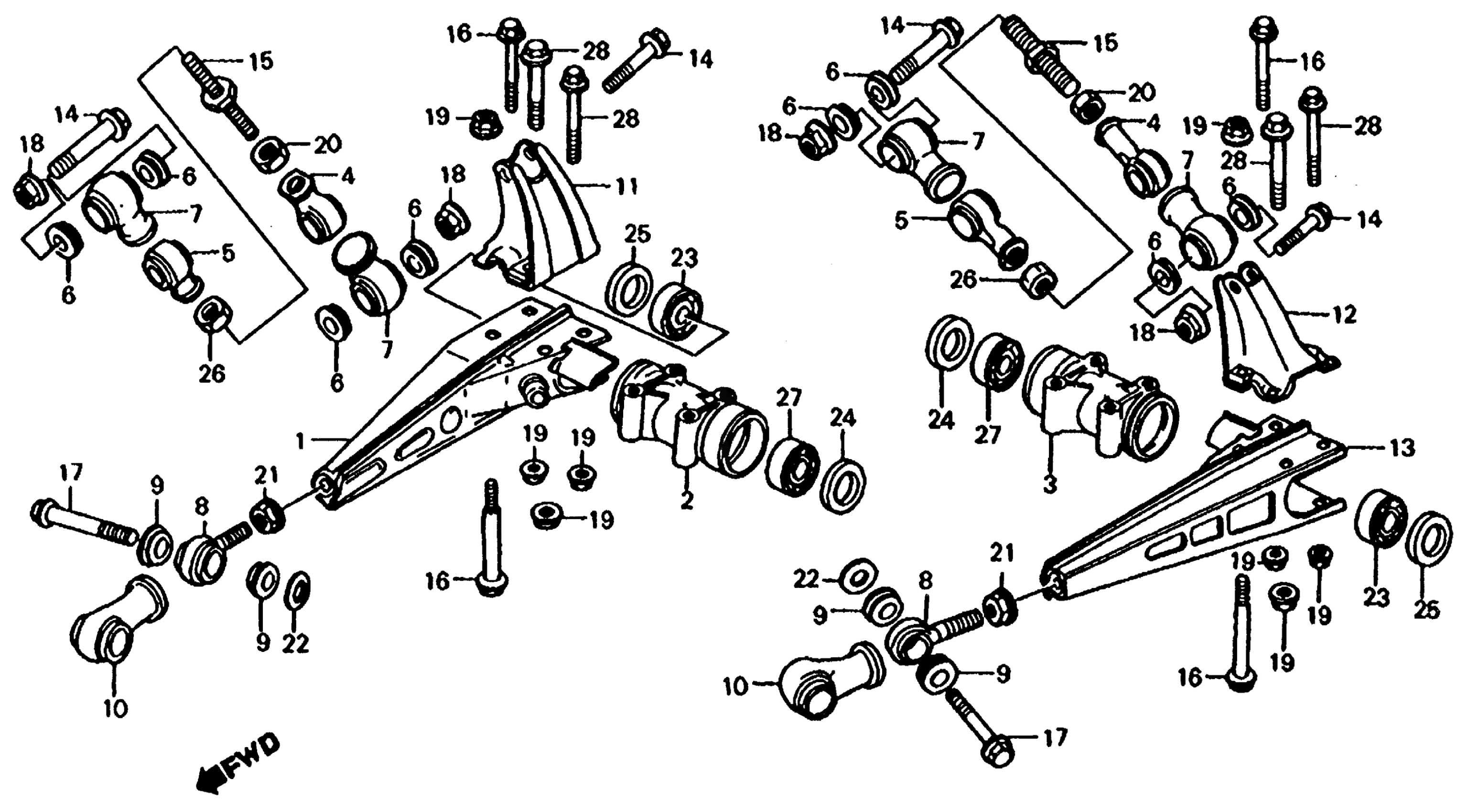

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 REAR SWINGARM Diagram
#
Description
Price
1
ARM, R. RADIUS *YR111MU* (GLAMIS GOLD METALLIC-U) (NOT AVAILABLE)
52100-VM0-770ZA
Unavailable
2
HOLDER, R. BEARING (NOT AVAILABLE)
52101-VM0-770
Unavailable
3
HOLDER, L. BEARING (NOT AVAILABLE)
52103-VM0-770
Unavailable
4
ROD END (14MM) (NOT AVAILABLE)
52115-VM0-003
Unavailable
5
ROD END (14MM) (NOT AVAILABLE)
52116-VM0-770
Unavailable
6
COLLAR, SWINGARM PIVOT (NOT AVAILABLE)
52117-VM0-000
Unavailable
7
BOOT, ROD END (NOT AVAILABLE)
52118-VM0-003
Unavailable
8
ROD END (16MM) (NOT AVAILABLE)
52125-VM0-770
Unavailable
9
COLLAR, ROD END (16MM) (NOT AVAILABLE)
52127-VM0-770
Unavailable
10
BOOT, ROD END (16MM) (NOT AVAILABLE)
52128-VM0-770
Unavailable
11
STAY, R. ARM (UPPER) *NH105* (MAT BLACK)
52135-VM0-770ZA
Unavailable
12
STAY, L. ARM (UPPER) *NH105* (MAT BLACK) (NOT AVAILABLE)
52145-VM0-770ZA
Unavailable
13
ARM, L. RADIUS *YR111MU* (GLAMIS GOLD METALLIC-U) (NOT AVAILABLE)
52200-VM0-770ZA
Unavailable
14
BOLT, FLANGE (14X60)
90114-VM0-770
Unavailable
15
BOLT, ARM (UPPER) (NOT AVAILABLE)
90119-VM0-770
Unavailable
16
BOLT, FLANGE (12X105)
90128-KA3-730
Unavailable
17
BOLT, FLANGE (16X110)
90135-VM0-770
Unavailable
20
NUT, L. (M14X1.5)
90307-VM0-770
Unavailable
21
NUT (M16X1.5)
90308-VM0-770
Unavailable
22
SPACER, RADIUS ARM PIVOT (NOT AVAILABLE)
90405-VM0-770
Unavailable
23
BEARING, BALL (6205) (KOYO) (NOT AVAILABLE)
91052-VM0-771
Unavailable
23
BEARING, BALL (6205) (KOYO) (NOT AVAILABLE) This part replaces 91052-VM0-772.
91052-VM0-771
Unavailable
24
DUST SEAL (36X55X8) (NOK)
91252-VM0-003
Unavailable
24
DUST SEAL (36X55X8) (NOK) This part replaces 91252-VM0-004.
91252-VM0-003
Unavailable
25
DUST SEAL (32X52X7) This part replaces 91253-VM0-003.
91253-VM0-004
Unavailable
25
DUST SEAL (32X52X7)
91253-VM0-004
Unavailable
28
BOLT, FLANGE (12X95)
96400-12095-08
Unavailable
