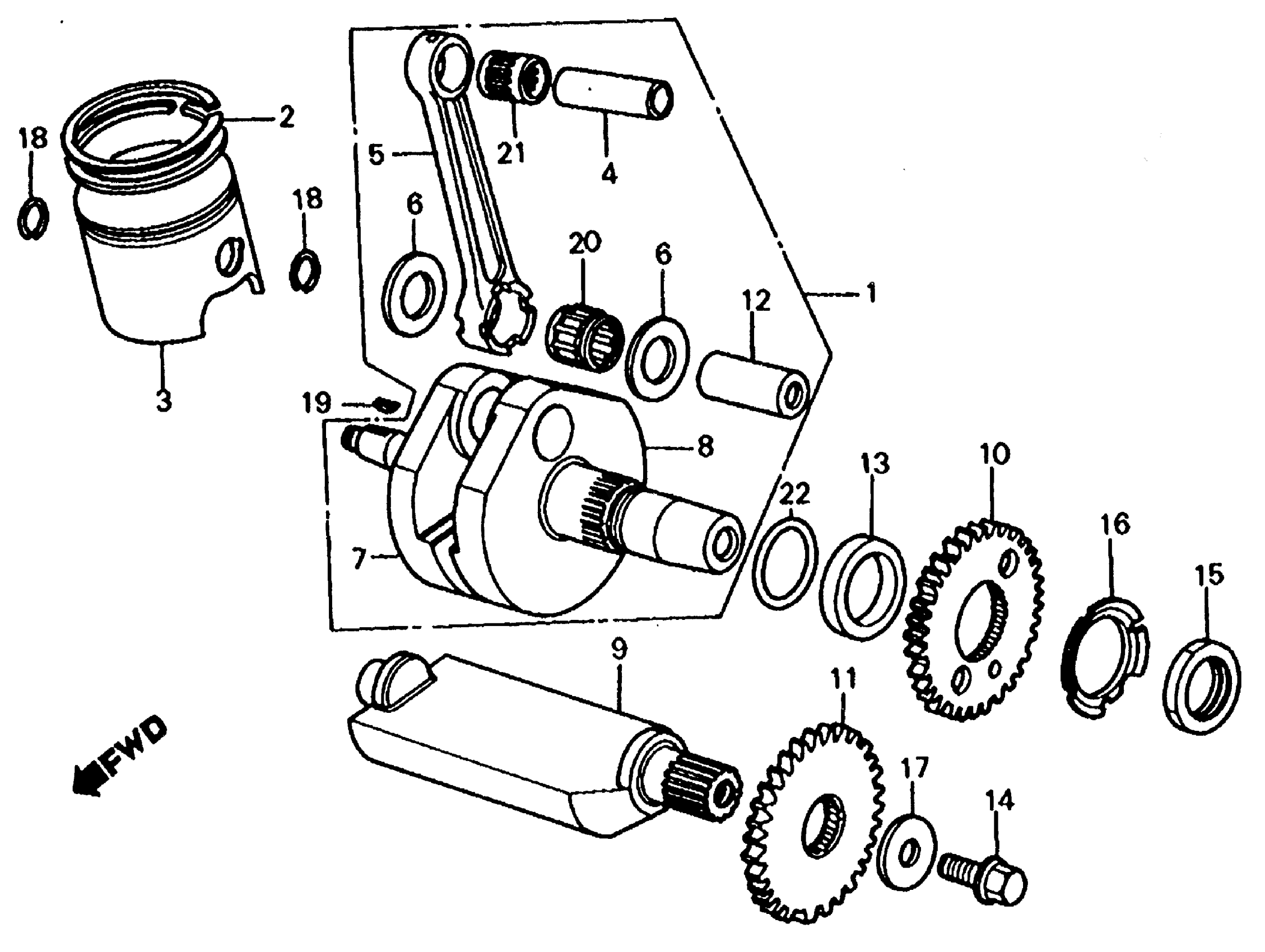

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 PISTON + CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-VM0-010

Unavailable

2

RING SET, PISTON This part replaces 13011-VM0-305.

13011-VM0-681

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) This part replaces 13012-VM0-305.

13012-VM0-681

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13012-VM0-681

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) This part replaces 13013-VM0-305.

13013-VM0-681

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13013-VM0-681

Unavailable

3

PISTON KIT D (NOT AVAILABLE)

06131-VM0-305

Unavailable

3

PISTON KIT D (NOT AVAILABLE) This part replaces 13101-VM0-772.

06131-VM0-305

Unavailable

3

PISTON (OS 0.25)

13102-VM0-315

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE)

13103-VM0-315

Unavailable

4

PIN, PISTON This part replaces 13111-KA4-770.

13111-KSK-730

$19.78

4

PIN, PISTON This part replaces 13111-KZ3-000.

13111-KSK-730

$19.78

5

ROD, CONNECTING

13201-KA4-700

Unavailable

5

ROD, CONNECTING This part replaces 13201-430-300.

13201-KA4-700

Unavailable

6

WASHER, CONNECTING ROD SIDE

13202-357-300

Unavailable

7

CRANKSHAFT, R. (NOT AVAILABLE)

13311-VM0-310

Unavailable

8

CRANKSHAFT, L. (NOT AVAILABLE)

13321-VM0-310

Unavailable

9

WEIGHT, BALANCER

13351-VM0-000

Unavailable

10

GEAR, BALANCER DRIVE (NOT AVAILABLE)

13355-VM0-000

Unavailable

11

GEAR, BALANCER DRIVEN (NOT AVAILABLE)

13356-VM0-000

Unavailable

12

PIN A, CRANKSHAFT (NOT AVAILABLE)

13381-VM0-770

Unavailable

12

PIN B, CRANK (NOT AVAILABLE)

13382-VM0-770

Unavailable

12

PIN C, CRANK (NOT AVAILABLE)

13383-VM0-770

Unavailable

13

COLLAR, DRIVE GEAR (NOT AVAILABLE)

13617-VM0-000

Unavailable

14

BOLT, SPECIAL (10X20) (NOT AVAILABLE)

90001-961-000

Unavailable

15

NUT, HEX. (32MM)

90202-VM0-000

Unavailable

16

WASHER, LOCK (32MM) (NOT AVAILABLE)

90461-VM0-000

Unavailable

17

WASHER, SPRING (10MM)

90481-430-000

$6.19

18

CLIP, PISTON PIN (1.2X18)

90601-430-000

$3.28

19

KEY, WOODRUFF

90741-413-000

$2.56

20

BEARING 1, CONNECTING ROD LARGE END

91011-VM0-008

Unavailable

20

BEARING 2, CONNECTING ROD LARGE END

91012-VM0-008

Unavailable

20

BEARING 3, CONNECTING ROD LARGE END

91013-VM0-008

Unavailable

21

BEARING, CONNECTING ROD SMALL END

91015-KZ3-003

$20.37

21

BEARING, CONNECTING ROD SMALL END This part replaces 91015-VM0-008.

91015-KZ3-003

$20.37

22

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

22

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

22

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

22

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

22

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21
