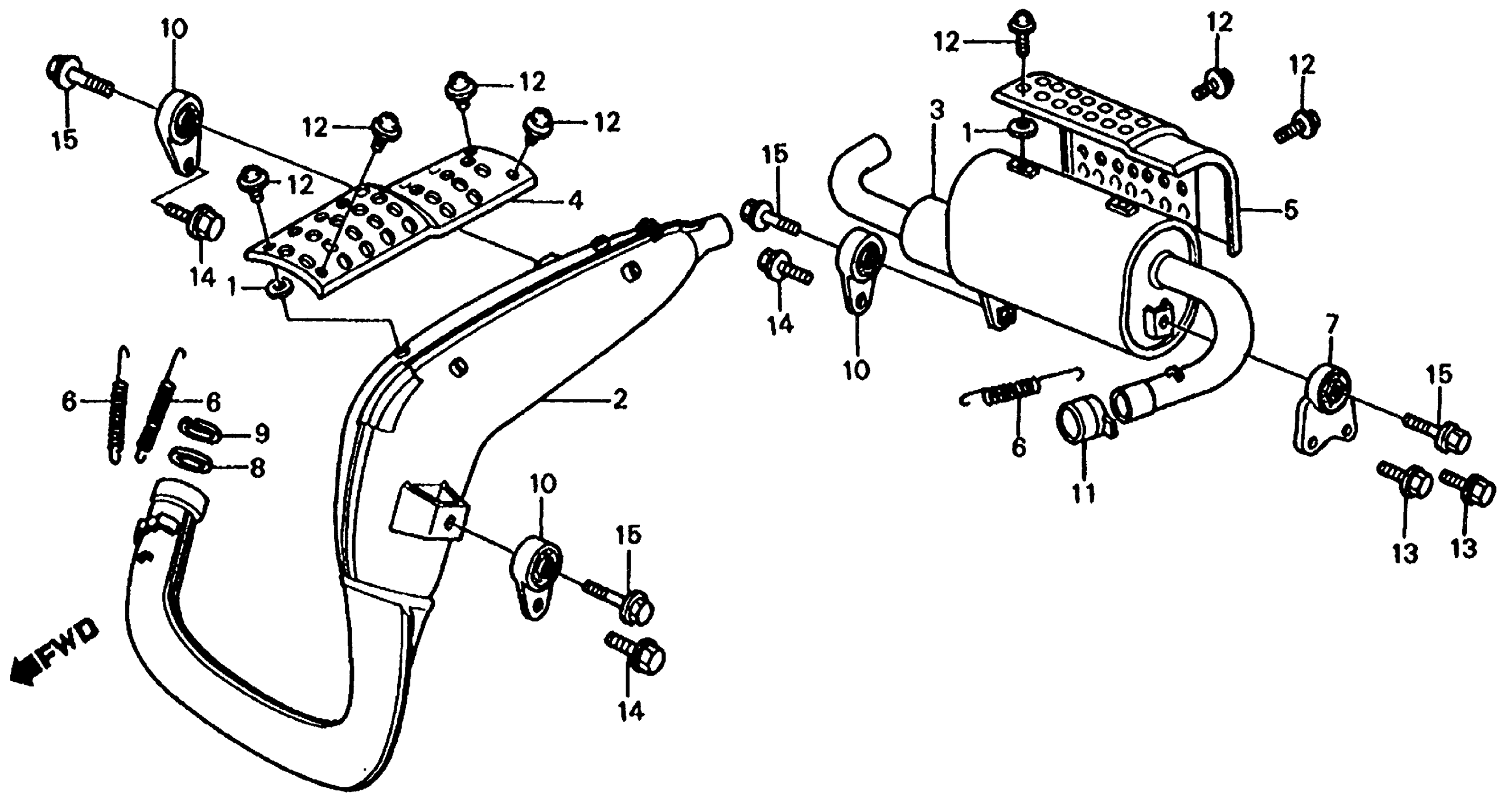

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 MUFFLER Diagram

#

Description
Price

1

GASKET, PROTECTOR

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

1

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

2

MUFFLER, MAIN

18300-VM0-772

Unavailable

3

MUFFLER, SUB (NOT AVAILABLE)

18310-VM0-772

Unavailable

4

PROTECTOR, MAIN MUFFLER (NOT AVAILABLE)

18319-VM0-003

Unavailable

5

PROTECTOR, SUB (OUTER)

18321-VM0-003

Unavailable

6

SPRING, EX. PIPE

18332-430-700

$13.02

7

STAY ASSY., MUFFLER (NOT AVAILABLE)

18352-VM0-770

Unavailable

8

GASKET, EX. PIPE This part replaces 18352-961-000.

18352-961-010

Unavailable

8

GASKET, EX. PIPE

18352-961-010

Unavailable

9

RING, EX.

18358-961-003

Unavailable

10

STAY, CHAMBER SETTING (NOT AVAILABLE)

18359-VM0-770

Unavailable

11

SEAL, MUFFLER (NOT AVAILABLE)

18363-VM0-000

Unavailable

12

SCREW-WASHER (6X10) This part replaces 90110-VM0-000.

93893-06010-00

$1.49

12

SCREW-WASHER (6X10) This part replaces 90136-425-871.

93893-06010-00

$1.49

12

SCREW-WASHER (6X10)

93893-06010-00

$1.49

13

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

13

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

14

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

14

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

15

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

15

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
