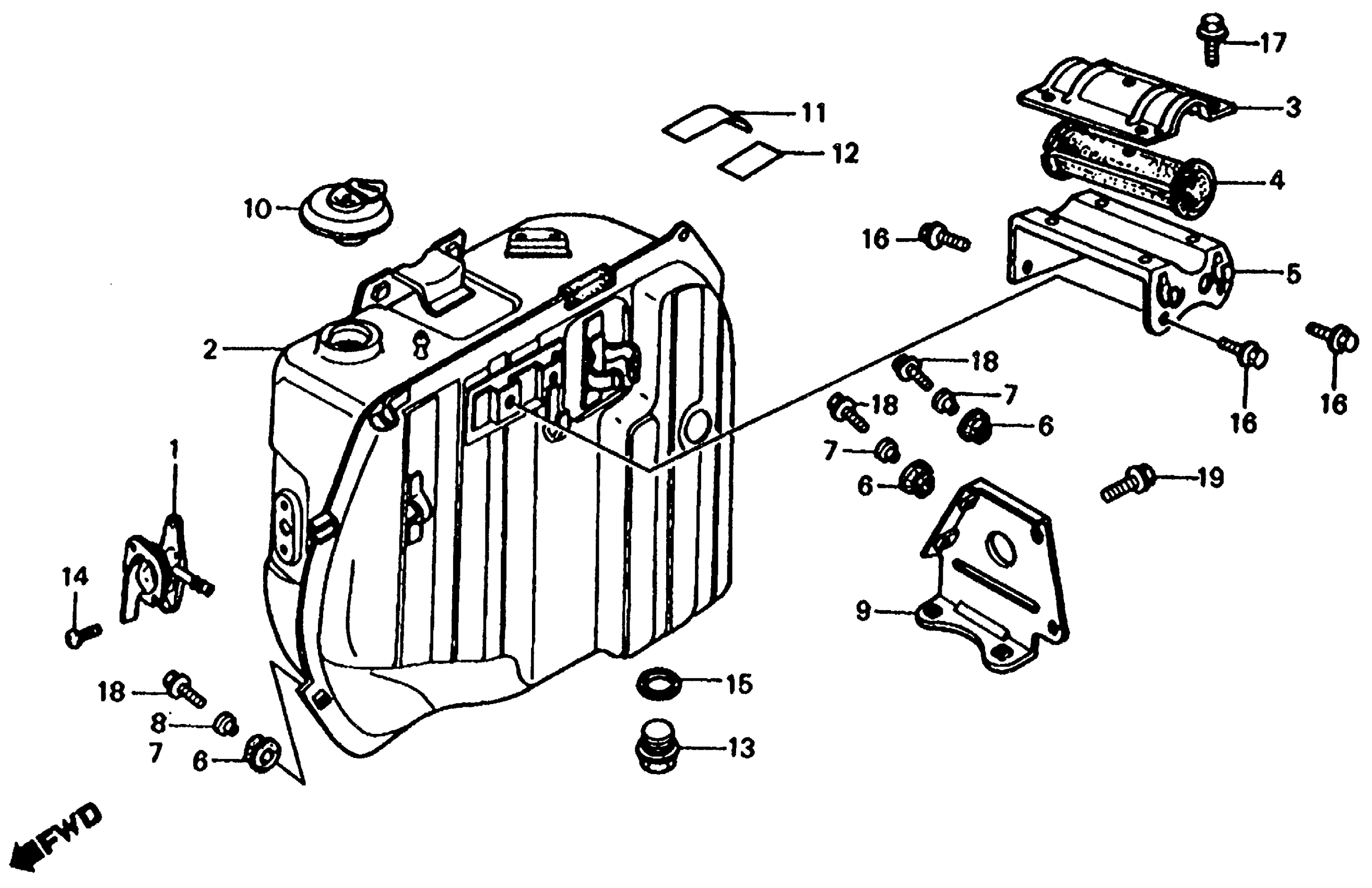

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-VM0-771

Unavailable

2

TANK, FUEL *NH105* (MAT BLACK) (NOT AVAILABLE)

17500-VM0-771ZA

Unavailable

3

HANGER, FUEL TANK (NOT AVAILABLE)

17531-VM0-000

Unavailable

4

RUBBER, TANK HANGER (NOT AVAILABLE)

17532-VM0-000

Unavailable

5

BRACKET, FUEL TANK

17533-VM0-770

Unavailable

6

RUBBER, FUEL TANK MOUNTING (NOT AVAILABLE)

17534-VM0-770

Unavailable

7

COLLAR, TANK SETTING | Use up to Frame SN FC113049

17535-VM0-000

Unavailable

7

COLLAR, TANK SETTING | Use from Frame SN FC113050

17535-VM0-000

Unavailable

8

COLLAR, TANK SET (22MM) (NOT AVAILABLE) | Use from Frame SN FC113050

17536-VM0-770

Unavailable

9

BRKT, RR. FUEL TANK This part replaces 17541-VM0-000.

17541-VM0-770

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-460-007.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-017.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-027.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-037.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-047.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-057.

17620-460-077

$55.33

10

CAP, FUEL FILLER This part replaces 17620-460-067.

17620-460-077

$55.33

11

LABEL, FUEL CAUTION (NOT AVAILABLE)

87107-VM0-000

Unavailable

12

LABEL, MIXTURE This part replaces 87109-VM0-000.

87109-VM0-640

Unavailable

12

LABEL, MIXTURE

87109-VM0-640

Unavailable

13

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

14

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.93

14

SCREW, PAN (6X10)

93500-06010-0A

$0.93

15

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

16

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.14

16

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

17

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

17

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

18

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

19

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.03

19

BOLT, FLANGE (8X12)

95701-08012-00

$1.03
