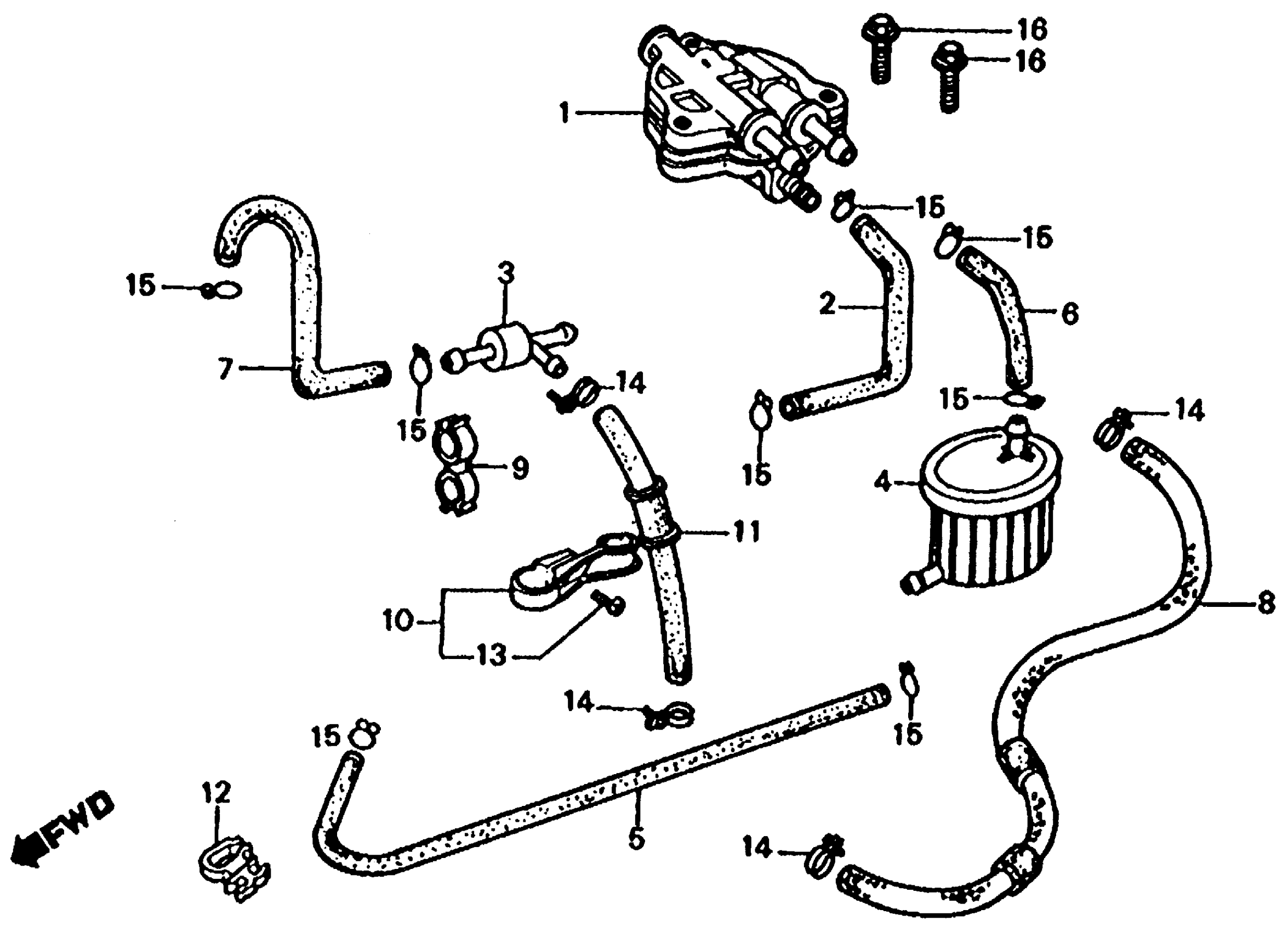

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 FUEL PUMP Diagram

PUMP ASSY., FUEL (NOT AVAILABLE)

16700-VM0-771

Unavailable

TUBE, FUEL PUMP (NOT AVAILABLE)

16705-VM0-771

Unavailable

VALVE, FUEL (THREE-WAY)

16710-VM0-770

$28.39

FILTER, FUEL

16900-VM0-770

Unavailable

TUBE, PETCOCK (NOT AVAILABLE)

16957-VM0-770

Unavailable

TUBE, STRAINER (NOT AVAILABLE)

16958-VM0-770

Unavailable

TUBE, FUEL RETURN

16959-VM0-771

Unavailable

HOSE, FUEL (NOT AVAILABLE)

16960-VM0-770

Unavailable

CLAMP, HOSE

16965-VM0-771

$2.83

CLAMP C, FUEL HOSE

16966-VM0-770

Unavailable

HOSE, FUEL CARBURETOR (NOT AVAILABLE)

16970-VM0-770

Unavailable

CLAMP, IGNITION CABLE

30505-VM0-003

Unavailable

SCREW, PAN (5X12)

93500-05012-0H

$1.49

CLIP, TUBE (A12)

95002-01120

$2.75

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
