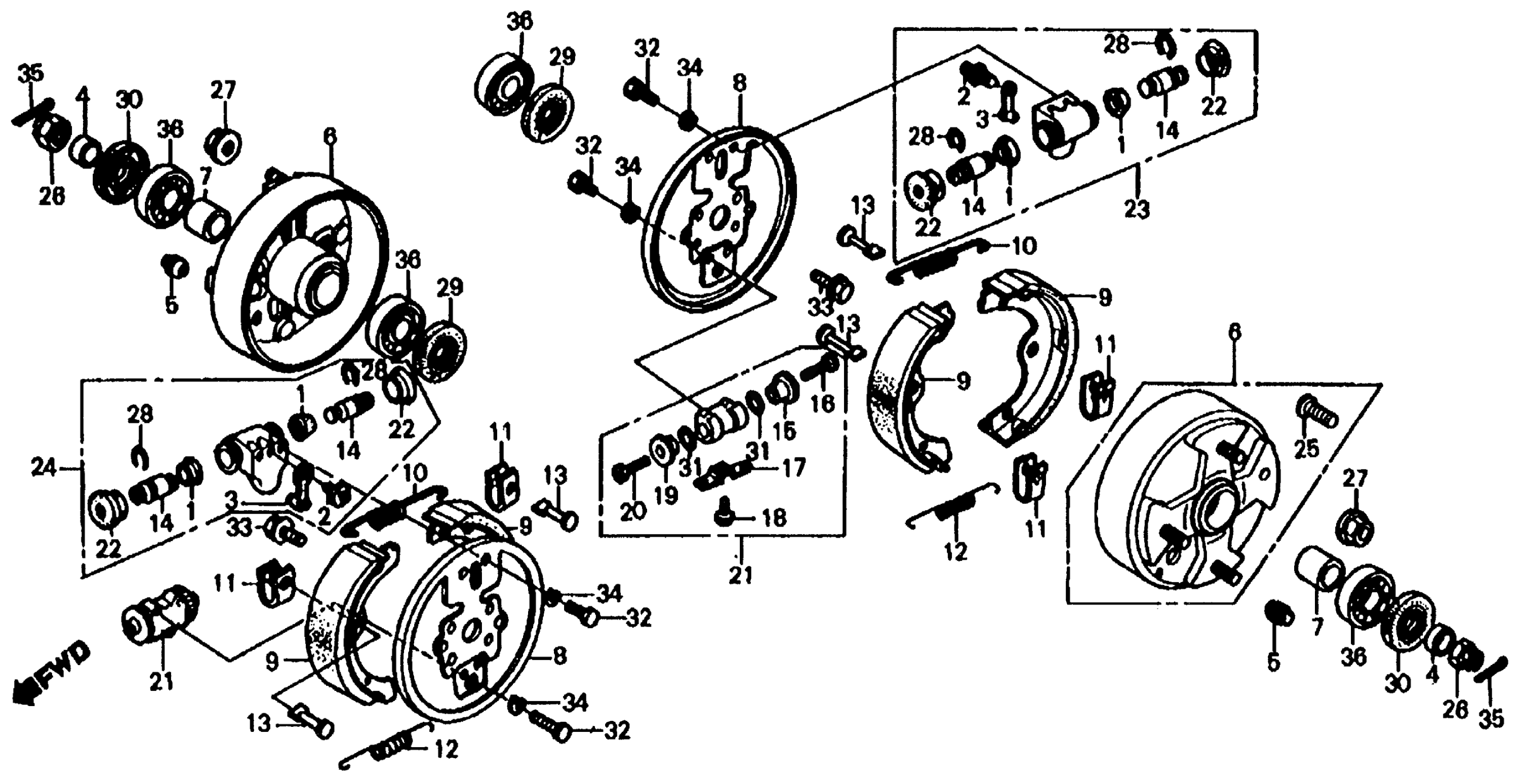

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 FRONT BRAKE Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

451A5-VM0-771

Unavailable

1

CUP, PISTON

43341-602-003

$5.27

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

COLLAR, FR. WHEEL SIDE

44312-VM0-000

Unavailable

5

GROMMET, WHEEL HUB

44602-VM0-000

Unavailable

6

HUB, FR. WHEEL (NOT AVAILABLE)

44610-VM0-770

Unavailable

7

COLLAR, FR. AXLE DISTANCE

44620-VM0-000

Unavailable

8

PLATE, BACK

45110-VM0-003

Unavailable

9

SHOE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45151-VM0-771

Unavailable

10

SPRING A, BRAKE

45171-VM0-003

Unavailable

11

SPRING, SHOE CLAMP This part replaces 45172-SA0-003.

45172-S04-003

$1.80

11

SPRING, SHOE CLAMP

45172-S04-003

$1.80

12

BRAKE, SPRING B

45173-VM0-003

Unavailable

13

PIN, TENSIONER

45175-VM0-003

$3.77

14

PISTON, WHEEL CYLINDER

45314-VM0-003

Unavailable

15

NUT, R. ADJUSTER

45316-VM0-003

$9.18

16

SCREW, R. FR. ADJUSTING

45317-634-013

$5.78

17

SPRING, LOCK

45318-VM0-003

Unavailable

18

SCREW-WASHER (4X6)

45319-634-003

$2.48

19

NUT, L. ADJUSTER

45336-VM0-003

$9.74

20

SCREW, L. ADJUSTING

45337-634-013

$5.78

21

ADJUSTER ASSY.

45340-HA8-003

Unavailable

22

BOOT, WHEEL CYLINDER

45342-VM0-003

Unavailable

23

CYLINDER ASSY., R. (NOT AVAILABLE)

45350-VM0-771

Unavailable

24

CYLINDER ASSY., L. (NOT AVAILABLE)

45370-VM0-771

Unavailable

25

BOLT, WHEEL (10X36)

90103-HA2-003

$8.57

26

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

27

NUT, WHEEL

90314-VM0-771

$6.31

28

CLIP, PISTON

90651-VM0-003

Unavailable

29

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

29

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

29

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

30

DUST SEAL (28X42X6)

91257-VM0-004

$11.19

31

O-RING (14X1.5)

91351-VM0-003

$2.61

32

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

32

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

32

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

33

BOLT-WASHER (8X16)

93402-08016-08

$2.05

33

BOLT-WASHER (8X16) This part replaces 93492-08016-08.

93402-08016-08

$2.05

34

WASHER, SPRING (6MM)

94111-06800

$1.49

35

PIN, COTTER (4.0X30)

94201-40300

$1.49

36

BEARING, RADIAL BALL (6004UU)

96150-60040-10

$19.53
