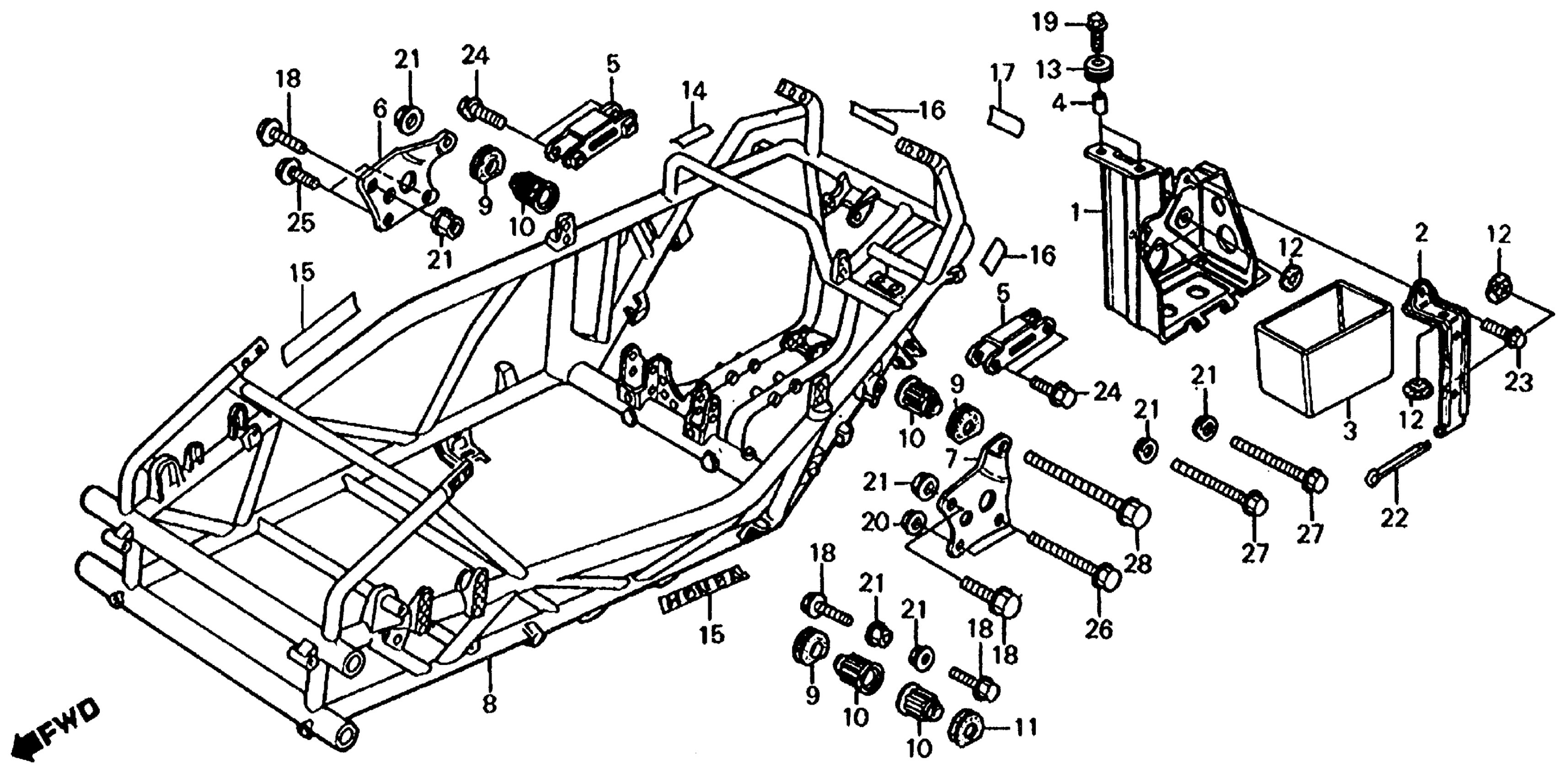

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 FRAME Diagram
#
Description
Price
1
BOX, BATTERY (NOT AVAILABLE)
31510-VM0-000
Unavailable
2
HINGE, BATTERY BOX (NOT AVAILABLE)
31522-VM0-000
Unavailable
3
TRAY, BATTERY
31525-VM0-000
Unavailable
5
PLATE, CONNECTING (NOT AVAILABLE)
40533-VM0-000
Unavailable
6
STAY, R. REDUCTION CASE *NH105* (MAT BLACK)
40550-VM0-770ZA
Unavailable
7
STAY, L. REDUCTION CASE *NH105* (MAT BLACK)
40551-VM0-000ZA
Unavailable
8
FRAME *R109* (PASSION RED)
50100-VM0-771ZA
Unavailable
9
RUBBER B, ENGINE MOUNTING (NOT AVAILABLE)
50202-461-000
Unavailable
10
RUBBER, ENGINE SETTING
50241-VM0-000
Unavailable
11
RUBBER, SETTING (C) (NOT AVAILABLE)
50242-VM0-770
Unavailable
13
RUBBER, TAILLIGHT CUSHION
84703-460-000
Unavailable
14
LABEL, STARTER WARNING (NOT AVAILABLE)
87102-VM0-770
Unavailable
15
STRIPE, SIDE (NOT AVAILABLE)
87103-VM0-000
Unavailable
16
LABEL, HOT WARNING (NOT AVAILABLE)
87105-VM0-000
Unavailable
17
LABEL, TRANSMISSION
87507-VM0-000
Unavailable
18
BOLT, FLANGE (10X55)
90014-PA9-000
Unavailable
22
PIN, COTTER (4.0X75) (NOT AVAILABLE)
94201-40750
Unavailable
26
BOLT, FLANGE (8X80) This part replaces 95800-08080-00.
95801-08080-00
Unavailable
26
BOLT, FLANGE (8X80)
95801-08080-00
Unavailable
27
BOLT, FLANGE (10X100) This part replaces 95800-10100-00.
95801-10100-00
Unavailable
27
BOLT, FLANGE (10X100)
95801-10100-00
Unavailable
28
BOLT, FLANGE (10X125) This part replaces 95800-10125-00.
95801-10125-00
Unavailable
28
BOLT, FLANGE (10X125)
95801-10125-00
Unavailable
