- FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015
DRIVEN PULLEY + VARIABLE SPEED BELT

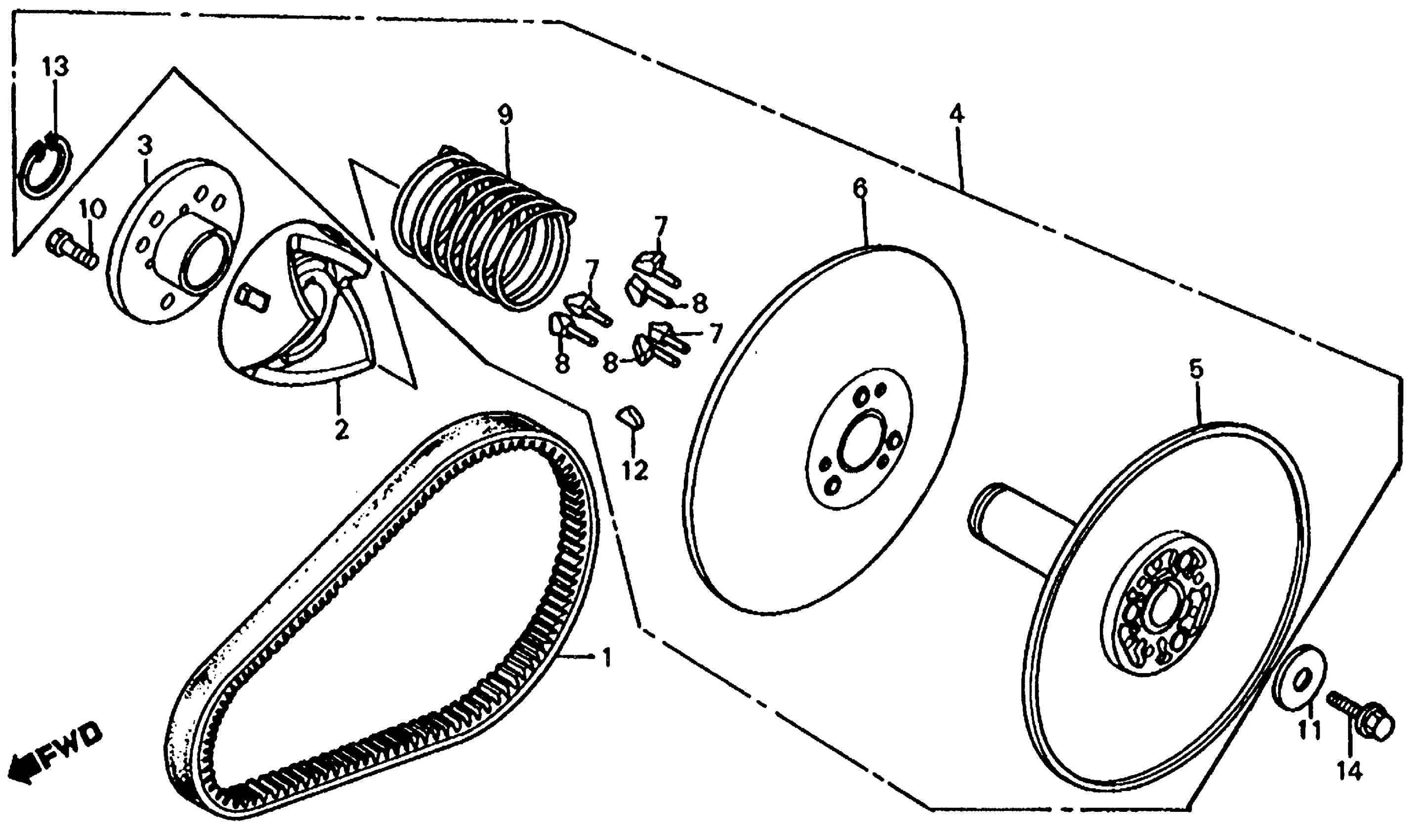

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 DRIVEN PULLEY + VARIABLE SPEED BELT Diagram
#
Description
Price
1
BELT, VARIABLE SPEED
S704148
Unavailable
1
BELT, VARIABLE SPEED
22101-VM0-003
Unavailable
1
BELT, VARIABLE SPEED This part replaces 22101-VM0-305.
S704148
Unavailable
2
CAM, DRIVEN PULLEY (NOT AVAILABLE) | Use up to Frame SN FC102257 This part replaces 22160-VM0-770.
22160-VM0-771
Unavailable
2
CAM, DRIVEN PULLEY (NOT AVAILABLE)
22160-VM0-771
Unavailable
3
FLANGE, DRIVEN FACE CAM | Use up to Frame SN FC102257 This part replaces 22161-VM0-770.
22161-VM0-771
Unavailable
3
FLANGE, DRIVEN FACE CAM | Use up to Frame SN FC102257
22161-VM0-771
Unavailable
3
FLANGE, DRIVEN FACE CAM
22161-VM0-771
Unavailable
4
PULLEY ASSY., DRIVEN
S143907
Unavailable
4
PULLEY ASSY., DRIVEN This part replaces 24000-VM0-770.
S143907
Unavailable
4
PULLEY ASSY., DRIVEN This part replaces 24000-VM0-771.
S143907
Unavailable
5
HUB ASSY., FIX FACE
S173-0003
Unavailable
5
HUB ASSY., FIX FACE This part replaces 24110-VM0-770.
S173-0003
Unavailable
6
HUB, MOVABLE
S172-5003
Unavailable
6
HUB, MOVABLE This part replaces 24200-VM0-000.
S172-5003
Unavailable
7
SLIPPER, R. This part replaces S58-0007.
S58-0008
Unavailable
7
SLIPPER, R.
S58-0008
Unavailable
7
SLIPPER, R. This part replaces 24220-VM0-000.
S58-0008
Unavailable
8
SLIPPER, R.
S58-0008
Unavailable
8
SLIPPER, R. This part replaces 24221-VM0-000.
S58-0008
Unavailable
9
SPRING, TORSION
S703102
Unavailable
9
SPRING, TORSION This part replaces 24411-VM0-000.
S703102
Unavailable
12
KEY, CAM DRIVEN
S20-0020
Unavailable
12
KEY, CAM DRIVEN This part replaces S901687.
S20-0020
Unavailable
12
KEY, CAM DRIVEN This part replaces 90701-VM0-770.
S20-0020
Unavailable
13
RING, RETAINING
S17-0021
Unavailable
13
RING, RETAINING This part replaces 91417-VM0-770.
S17-0021
Unavailable
