- FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015
DRIVE PULLEY

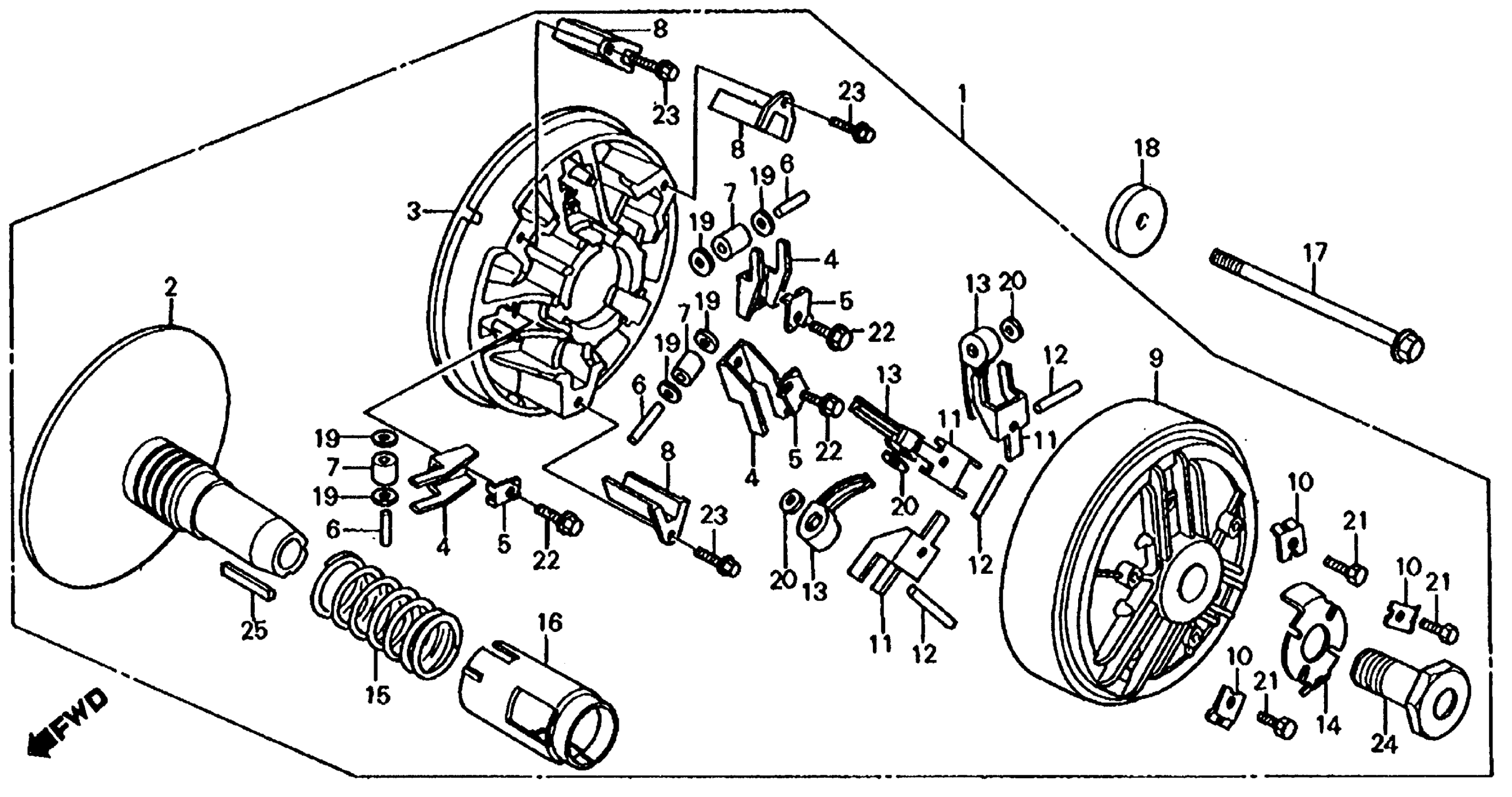

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 DRIVE PULLEY Diagram
#
Description
Price
1
PULLEY ASSY., DRIVE This part replaces 23000-VM0-770.
S155402
Unavailable
2
FACE & FLANGE, FIXED This part replaces 23110-VM0-000.
S173-5001
Unavailable
4
CLAMP, ROLLER PIN (NA USE ALT:S05-0006)
23201-VM0-000
Unavailable
5
PLATE, ROLLER LOCK (NA USE ALT:S05-0006)
23202-VM0-000
Unavailable
6
PIN, ROLLER (NA USE ALT:S05-0006)
23203-VM0-000
Unavailable
7
ROLLER (NA USE ALT:S05-0006)
23204-VM0-770
Unavailable
8
SLIDER This part replaces 23205-VM0-000.
S703848
Unavailable
9
HOUSING This part replaces 23400-VM0-000.
S704357
Unavailable
10
PLATE, ARM LOCK (NOT AVAILABLE)
23401-VM0-000
Unavailable
11
CLAMP, PIVOT ARM
S05-0007
Unavailable
11
CLAMP, PIVOT ARM This part replaces 23402-VM0-770.
S05-0007
Unavailable
12
PIN, ARM PIVOT (NA USE ALT:S05-0008)
23403-VM0-000
Unavailable
13
ARM, WEIGHT (NA USE ALT:S05-0008)
23404-VM0-000
Unavailable
14
PLATE, HOUSING LOCK
S703830
Unavailable
14
PLATE, HOUSING LOCK This part replaces 23405-VM0-000.
S703830
Unavailable
15
SPRING
S19-0001
Unavailable
15
SPRING This part replaces 24412-VM0-000.
S19-0001
Unavailable
16
CENTER, BEARING This part replaces 24413-VM0-000.
S703827
Unavailable
17
BOLT, FLANGE (12X150)
90113-VM0-000
Unavailable
18
WASHER (12MM) (NOT AVAILABLE)
90428-300-010
Unavailable
19
WASHER, ROLLER THRUST (NA USE ALT:S05-0008)
91410-VM0-000
Unavailable
20
WASHER, ARM THRUST (NA USE ALT:S05-0008)
91411-VM0-000
Unavailable
21
SCREW, ARM CLAMP (NOT AVAILABLE)
91412-VM0-000
Unavailable
22
SCREW, ROLLER CLAMP (NA USE ALT:S05-0006)
91413-VM0-000
Unavailable
23
SCREW, SLIDER
S901796
Unavailable
23
SCREW, SLIDER This part replaces 91414-VM0-000.
S901796
Unavailable
24
SCREW, HOUSING This part replaces 91415-VM0-000.
S703829
Unavailable
25
KEY, HOUSING
S703940
Unavailable
25
KEY, HOUSING This part replaces 91416-VM0-000.
S703940
Unavailable
