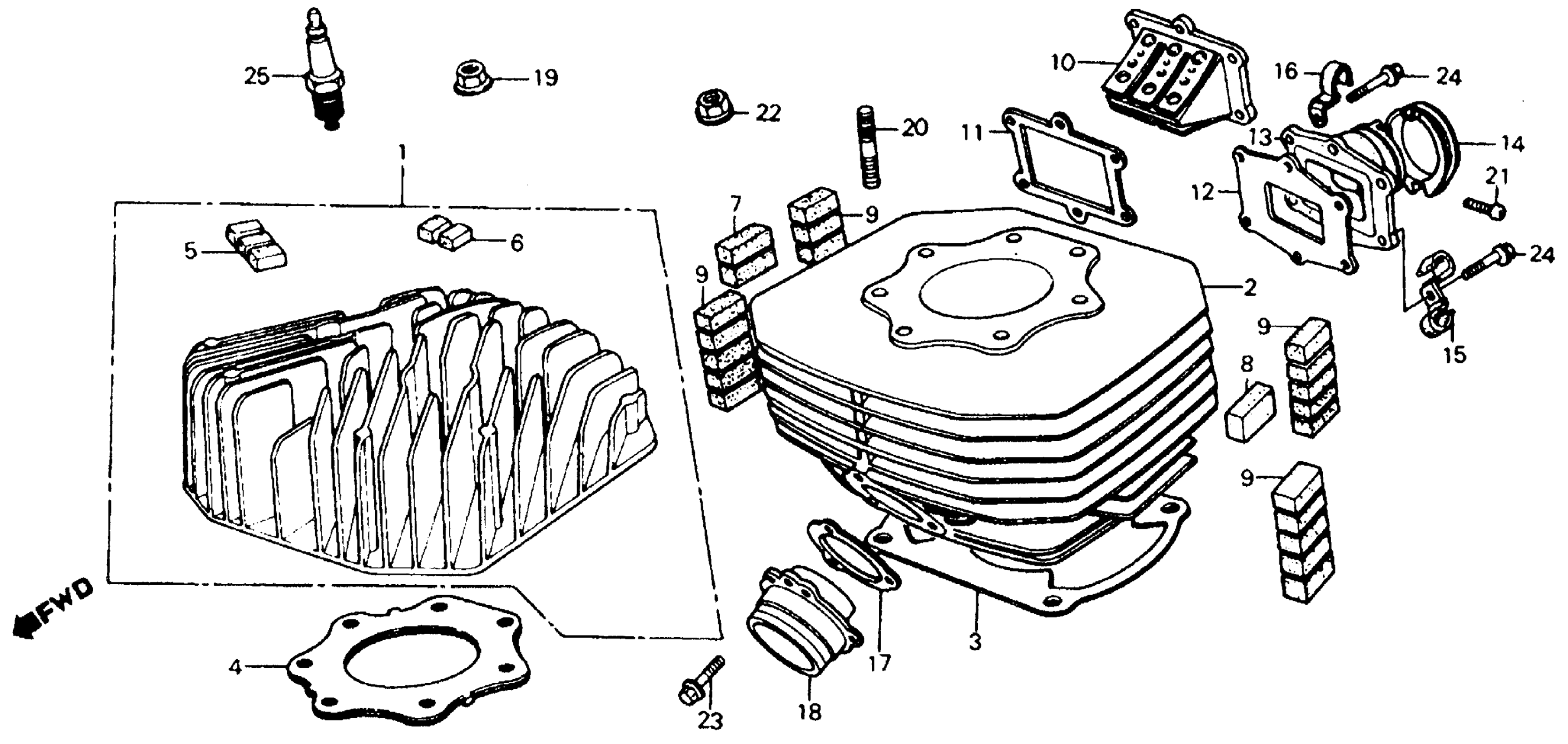

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 CYLINDER + CYLINDER HEAD + INLET PIPE Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12002-VM0-010

Unavailable

2

CYLINDER (NOT AVAILABLE)

12100-VM0-771

Unavailable

3

GASKET, CYLINDER

12191-VM0-772

Unavailable

4

GASKET, CYLINDER HEAD

12254-VM0-013

Unavailable

5

RUBBER, INSERT (A) (NOT AVAILABLE)

12295-VM0-000

Unavailable

6

RUBBER B, INSERT (NOT AVAILABLE)

12296-VM0-000

$3.87

7

RUBBER C, INSERT

12297-VM0-000

Unavailable

8

RUBBER, INSERT (D)

12298-VM0-000

Unavailable

9

RUBBER, INSERT (E)

12299-VM0-000

Unavailable

10

VALVE ASSY., REED (NOT AVAILABLE)

14100-961-003

Unavailable

11

GASKET A, REED VALVE

14132-KAE-000

$4.06

11

GASKET A, REED VALVE This part replaces 14132-430-000.

14132-KAE-000

$4.06

12

GASKET B, REED VALVE This part replaces 14133-430-000.

14133-430-306

$7.64

12

GASKET B, REED VALVE

14133-430-306

$7.64

13

INSULATOR, CARBURETOR

16210-VM0-000

Unavailable

14

BAND, INSULATOR (NOT AVAILABLE)

16223-VM0-000

Unavailable

15

CLAMP A, FUEL HOSE (NOT AVAILABLE)

16962-VM0-770

Unavailable

16

CLAMP A, FUEL HOSE (NOT AVAILABLE)

16962-VM0-770

Unavailable

16

CLAMP A, FUEL HOSE (NOT AVAILABLE) This part replaces 16963-VM0-000.

16962-VM0-770

Unavailable

17

GASKET, EX. FLANGE This part replaces 18291-961-000.

18291-961-306

Unavailable

17

GASKET, EX. FLANGE

18291-961-306

Unavailable

18

JOINT, EX. PIPE

18351-961-000

Unavailable

19

NUT (8MM) (NOT AVAILABLE)

90236-VM0-770

Unavailable

20

BOLT, STUD (8X45) This part replaces 92700-08065-3E.

92900-08045-3E

$2.16

20

BOLT, STUD (8X45)

92900-08045-3E

$2.16

21

SCREW, PAN (5X25)

93500-05025-0A

$1.49

22

NUT, FLANGE (10MM)

94050-10000

$1.59

23

BOLT, FLANGE (6X16) This part replaces 96000-06016-02.

96001-06016-02

$1.49

23

BOLT, FLANGE (6X16)

96001-06016-02

$1.49

24

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

24

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

25

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58816.

98079-58846

$2.62

25

SPARK PLUG (BR8ES) (NGK)

98079-58846

$2.62

25

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58864.

98079-58846

$2.62

25

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59816.

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK)

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59847-01.

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK) This part replaces 98079-59864.

98079-59847

$2.44
