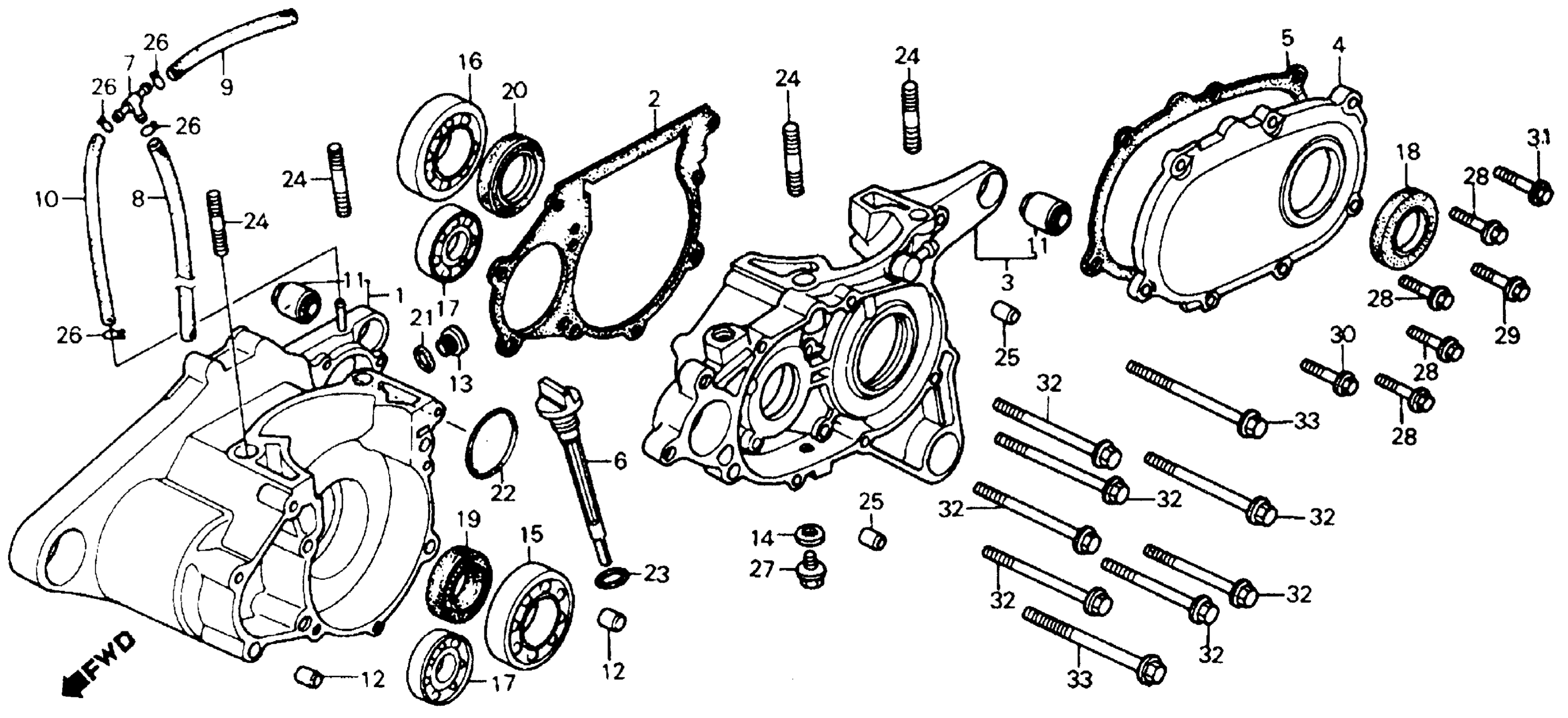

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-VM0-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-VM0-000.

11191-VM0-306

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-VM0-000

Unavailable

4

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-VM0-000

Unavailable

5

GASKET, L. CRANKCASE COVER This part replaces 11395-VM0-000.

11395-VM0-306

Unavailable

5

GASKET, L. CRANKCASE COVER

11395-VM0-306

Unavailable

6

DIPSTICK, OIL (NOT AVAILABLE)

15650-VM0-000

Unavailable

7

JOINT, FUEL

16235-399-000

Unavailable

8

TUBE, FUEL CAP BREATHER This part replaces 17521-VM0-770.

17530-437-000

$8.92

8

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

9

TUBE, BREATHER (126X40) (NOT AVAILABLE)

17522-VM0-770

Unavailable

10

TUBE, BREATHER (80) (NOT AVAILABLE)

17523-VM0-770

Unavailable

11

BUSH, TORQUE ROD DAMPER (NOT AVAILABLE)

52451-VM0-300

Unavailable

12

PIN, DOWEL (12X16)

90036-357-000

$3.69

13

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

WASHER, DRAIN PLUG (10.2MM)

90601-ZE1-000

$1.49

15

BEARING, RADIAL BALL (6306) (C3)

91032-HE0-005

Unavailable

15

BEARING, RADIAL BALL (6306) (C3) This part replaces 91032-VM0-003.

91032-HE0-005

Unavailable

15

BEARING, RADIAL BALL (6306) (C3) This part replaces 91032-VM0-004.

91032-HE0-005

Unavailable

16

BEARING, RADIAL BALL

91001-KC4-004

Unavailable

16

BEARING, RADIAL BALL This part replaces 91033-VM0-003.

91001-KC4-004

Unavailable

16

BEARING, RADIAL BALL This part replaces 91033-VM0-004.

91001-KC4-004

Unavailable

17

BEARING, RADIAL BALL (6204) (TOYO) This part replaces 91102-GE0-003.

91102-GE1-711

$19.89

17

BEARING, RADIAL BALL (6204) (TOYO) This part replaces 91102-GE0-004.

91102-GE1-711

$19.89

17

BEARING, RADIAL BALL (6204) (TOYO)

91102-GE1-711

$19.89

18

OIL SEAL (30X50X7) (NOK) This part replaces 91201-VM0-003.

91201-VM0-004

Unavailable

18

OIL SEAL (30X50X7) (NOK)

91201-VM0-004

Unavailable

19

OIL SEAL (25X40X8)

91202-VM0-003

Unavailable

19

OIL SEAL (25X40X8) This part replaces 91202-VM0-004.

91202-VM0-003

Unavailable

20

OIL SEAL (45X62X8)

91203-VM0-004

Unavailable

21

O-RING (13.8X2.5)

91303-MG7-003

$3.12

21

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

22

O-RING (53.6X2.4) (NOT AVAILABLE)

91354-415-003

Unavailable

23

O-RING (11.9X2.2)

91370-461-000

$2.39

24

BOLT 2, STUD (10X45) This part replaces 92700-10070-3B.

92900-10045-3B

$2.15

24

BOLT 2, STUD (10X45)

92900-10045-3B

$2.15

25

PIN A, DOWEL (10X14)

94301-10140

$2.28

26

CLIP, TUBE (C9)

95002-50000

$1.49

27

BOLT, FLANGE (10X16) This part replaces 95700-10016-08.

95701-10016-08

$2.25

27

BOLT, FLANGE (10X16)

95701-10016-08

$2.25

28

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

29

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

29

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

30

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

30

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

31

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

31

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

32

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

32

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

33

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

33

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
