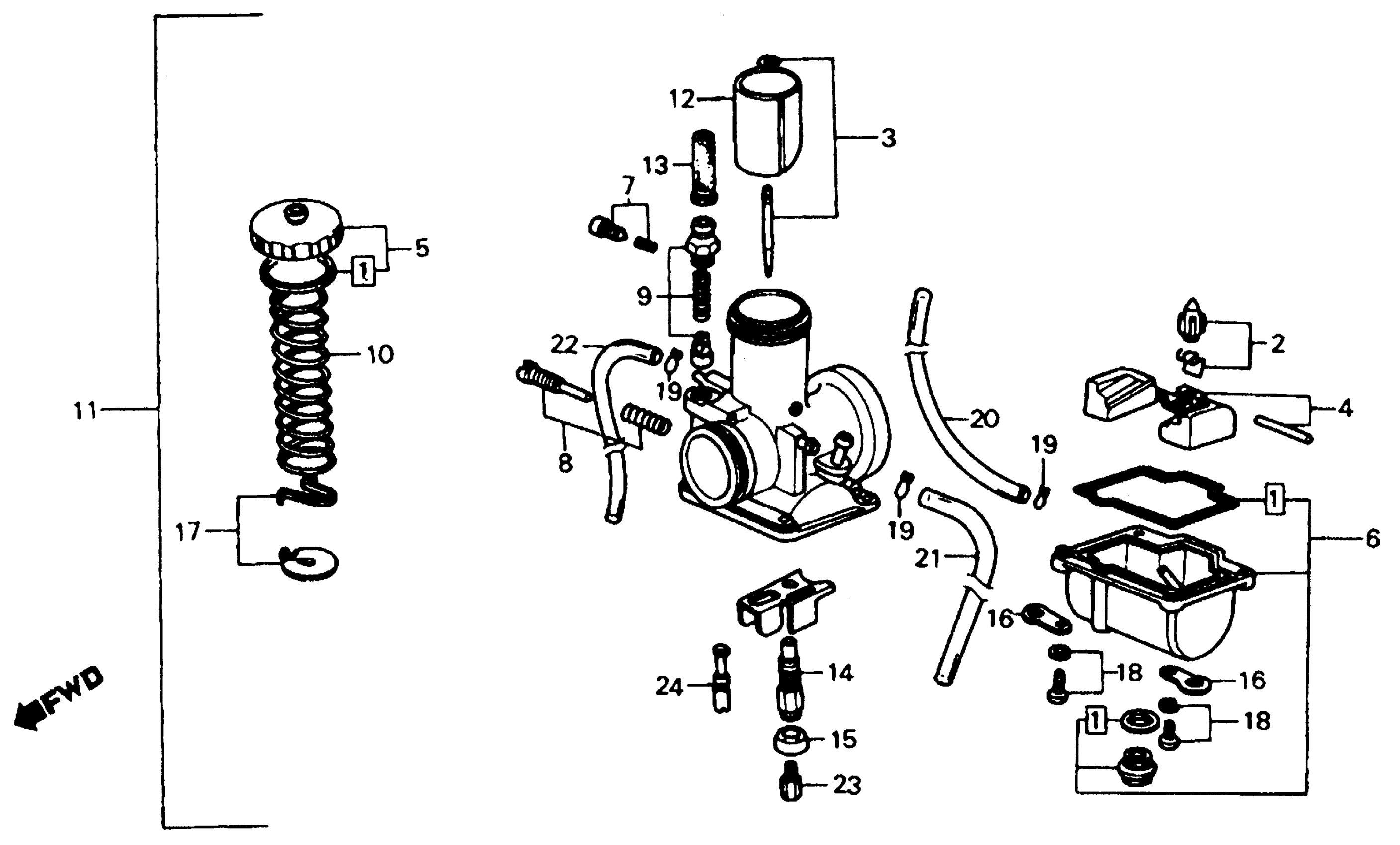

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HE0-305

Unavailable

1

GASKET SET This part replaces 16010-964-004.

16010-HE0-305

Unavailable

2

VALVE SET, FLOAT

16011-HE0-003

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-KA5-004.

16011-HE0-003

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-VM0-004

Unavailable

4

FLOAT SET This part replaces 16013-KA3-741.

16013-HA2-671

$50.15

5

TOP SET (NOT AVAILABLE)

16014-VM0-004

Unavailable

6

CHAMBER SET, FLOAT

16015-VM0-004

Unavailable

7

SCREW SET, A

16016-GB4-003

$23.02

8

SCREW SET (NOT AVAILABLE)

16028-VM0-004

Unavailable

9

VALVE SET, STARTER

16046-VM0-004

Unavailable

10

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16050-VM0-004

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-VM0-771.

16100-VM0-773

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-VM0-772.

16100-VM0-773

Unavailable

11

CARBURETOR ASSY. (NOT AVAILABLE)

16100-VM0-773

Unavailable

12

VALVE, THROTTLE (NOT AVAILABLE)

16111-VM0-004

Unavailable

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

NEEDLE, JET (NOT AVAILABLE) This part replaces 16164-KA5-004.

16164-HE0-670

Unavailable

15

HOLDER, JET

16168-KA5-004

Unavailable

16

BINDER

16179-428-671

Unavailable

17

PLATE SET (NOT AVAILABLE)

16212-KA3-004

Unavailable

18

SCREW-WASHER (4X16)

93892-04016-08

$1.49

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X360)

95003-05008-60M

$19.34

21

BULK HOSE, VINYL (4X7X8000) (4X7X440)

95003-07008-60M

$24.47

22

BULK HOSE, VINYL (4X7X8000) (4X7X460)

95003-07008-60M

$24.47

23

JET, MAIN (#138)

99101-357-1380

$9.26

23

JET, MAIN (#142)

99101-357-1420

$8.55

23

JET, MAIN (#148)

99101-357-1480

$17.95

24

JET, SLOW (#45)

99103-GBF-0450

$14.02

24

JET, SLOW (#45) This part replaces 99103-KA3-0450.

99103-GBF-0450

$14.02

24

JET, SLOW (#45) This part replaces 99103-440-0450.

99103-GBF-0450

$14.02
