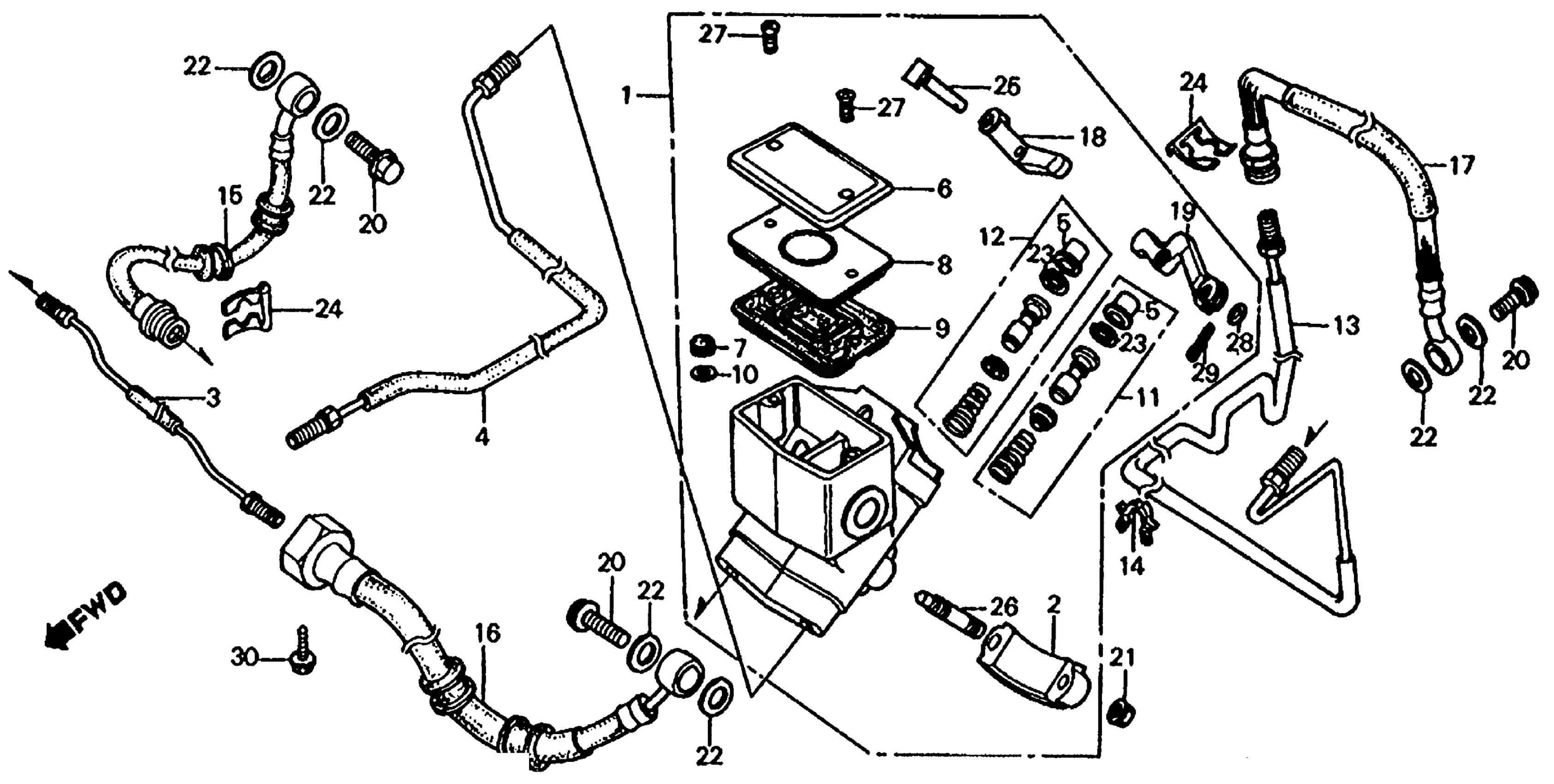

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 BRAKE MASTER CYLINDER + BRAKE HOSE Diagram

#

Description
Price

1

MASTER CYLINDER ASSY. (NOT AVAILABLE)

43500-VM0-771

Unavailable

2

HOLDER (NOT AVAILABLE)

43502-VM0-006

Unavailable

3

PIPE B, FR. BRAKE (NOT AVAILABLE)

45125-VM0-770

Unavailable

4

PIPE A, FR. BRAKE

45127-VM0-770

Unavailable

5

BOOT

45504-410-003

$12.16

6

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

7

SEPARATOR

45518-KA3-731

$12.17

8

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

9

DIAPHRAGM

45520-MA5-672

$18.13

10

RING

45523-KA3-731

$2.92

11

MASTER CYLINDER SET

45530-MA4-671

$47.76

12

MASTER CYLINDER SET

45530-471-831

$40.86

13

PIPE, RR. BRAKE (NOT AVAILABLE)

46330-VM0-770

Unavailable

14

CLIP A, BRAKE PIPE

46391-VM0-003

$2.44

15

HOSE, R. FR. BRAKE (NOT AVAILABLE)

46410-VM0-771

Unavailable

16

HOSE, L. FR. BRAKE (NOT AVAILABLE)

46415-VM0-771

Unavailable

17

HOSE ASSY., RR. BRAKE (NOT AVAILABLE)

46430-VM0-003

Unavailable

18

LEVER, R. MASTER CYLINDER

53175-VM0-770

Unavailable

19

LEVER, L. MASTER CYLINDER (NOT AVAILABLE)

53176-VM0-770

Unavailable

20

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

20

BOLT, OIL (10X22)

90145-KM3-751

$11.02

20

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

21

NUT, U (6MM)

90301-473-003

$4.07

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

CIRCLIP

90651-MA5-671

$2.66

24

CLIP, BRAKE HOSE

90651-538-000

$6.77

25

PIN, BRAKE ARM

90751-VM0-006

Unavailable

26

BOLT, STUD (6X32)

92700-06032-1B

Unavailable

27

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

PIN, COTTER (1.6X12)

94201-16120

$1.49

30

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

30

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
