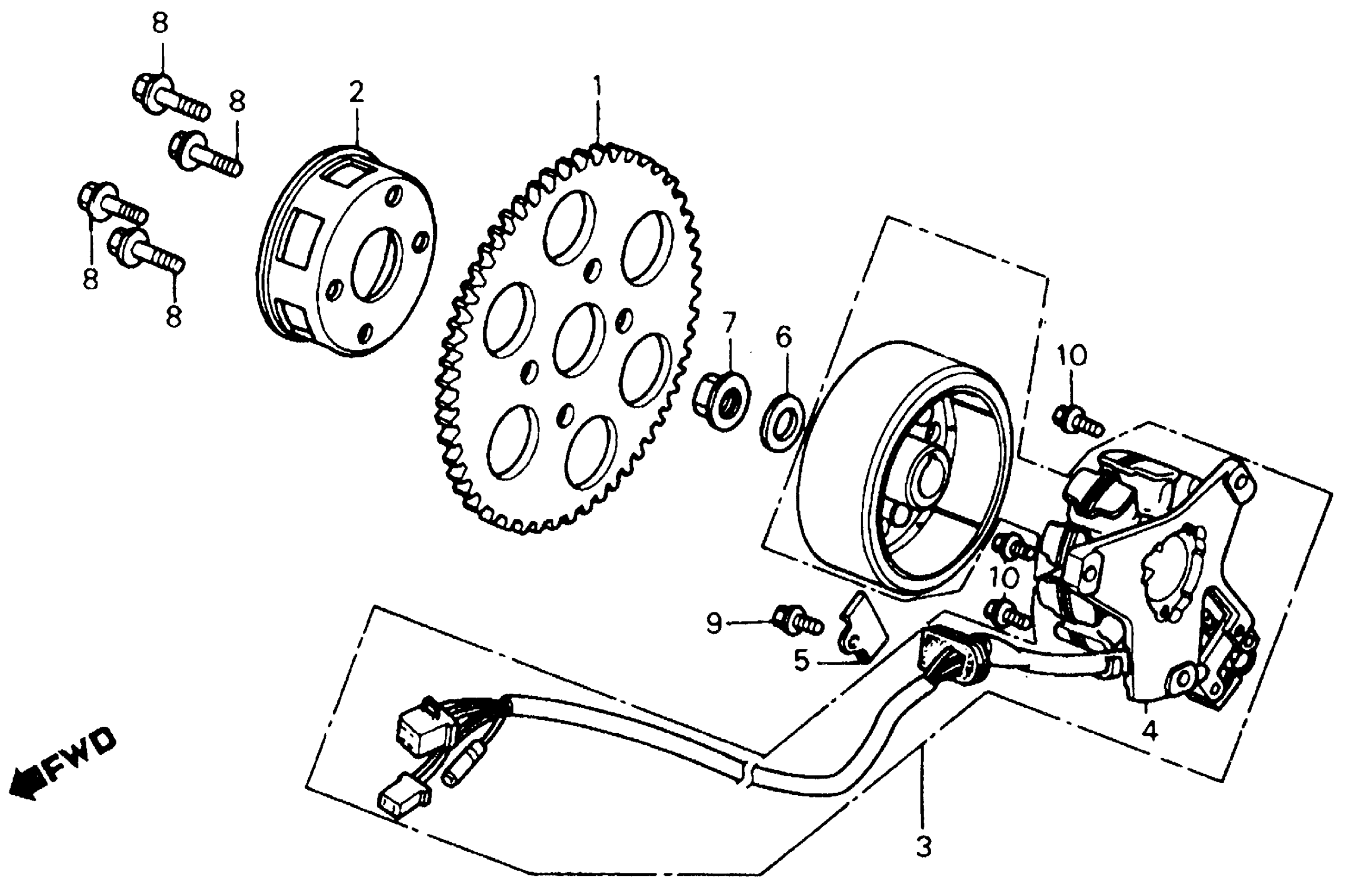

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 ALTERNATOR Diagram

#

Description
Price

1

GEAR, STARTER DRIVEN (NOT AVAILABLE)

28111-VM0-000

Unavailable

2

PULLEY, STARTER

28430-VM0-000

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-VM0-014

Unavailable

4

STATOR (NOT AVAILABLE)

31120-VM0-014

Unavailable

5

CLAMP, ALTERNATOR (NOT AVAILABLE)

31130-VM0-770

Unavailable

6

WASHER, PLAIN (12MM)

90437-611-000

$4.22

7

NUT, FLANGE (12MM)

94050-12000

$1.49

8

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

8

BOLT, FLANGE (8X16) This part replaces 95800-08016-00.

95701-08016-00

$1.80

8

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80

8

BOLT, FLANGE (8X16) This part replaces 95900-08016-00.

95701-08016-00

$1.80

9

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

9

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

10

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

10

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
