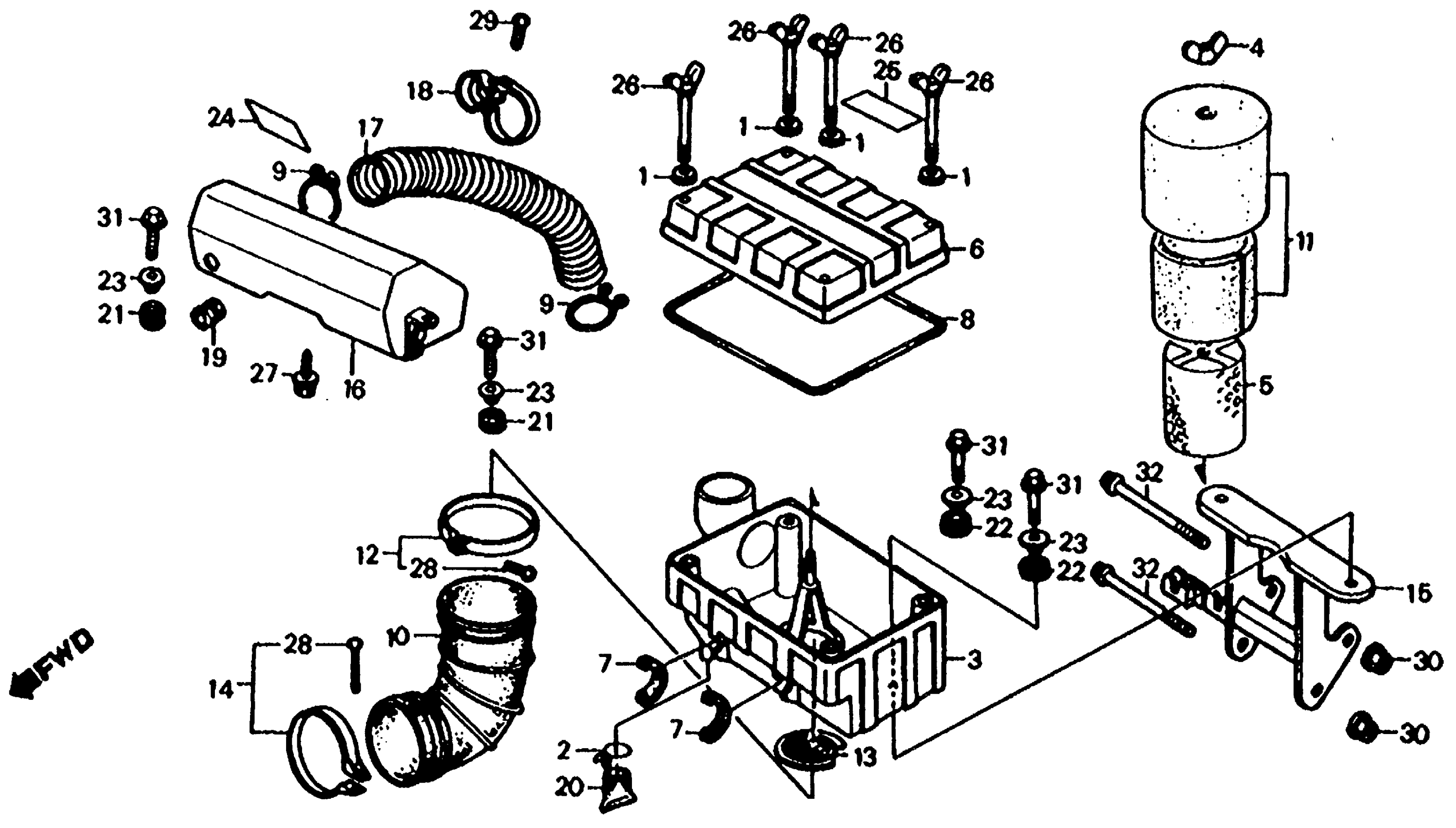

Honda FL350RA (85) ODYSSEY 350, JPN, VIN# JH3TE020-FC100015 AIR CLEANER Diagram

#

Description
Price

1

WASHER, HEAD COVER

12320-ZA0-000

$4.23

2

CLIP, BREATHER TUBE

15772-500-010

$3.90

2

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-VM0-000

Unavailable

4

NUT, AIR CLEANER ELEMENT SETTING (NOT AVAILABLE)

17214-GC4-730

Unavailable

5

BODY, AIR CLEANER (NOT AVAILABLE)

17215-VM0-003

Unavailable

6

COVER, AIR CLEANER (NOT AVAILABLE)

17217-VM0-000

Unavailable

7

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17218-VM0-000

Unavailable

8

SEAL, AIR CLEANER HOUSING COVER (NOT AVAILABLE)

17219-VM0-000

Unavailable

9

CLIP, AIR IN. TUBE

17243-689-000

Unavailable

10

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-VM0-770

Unavailable

11

ELEMENT, AIR CLEANER

17254-VM0-003

Unavailable

12

BAND, AIR CLEANER This part replaces 17256-VM0-000.

17257-HB5-000

$14.02

12

BAND, AIR CLEANER

17257-HB5-000

$14.02

13

NET, AIR CLEANER HOUSING (NOT AVAILABLE)

17257-VM0-000

Unavailable

14

BAND, CONNECTING TUBE This part replaces 17258-VM0-770.

95018-62250

$7.94

14

BAND, CONNECTING TUBE This part replaces 90652-GHB-740.

95018-62250

$7.94

14

BAND, FR. CONNECTING TUBE

95018-62250

$7.94

15

STAY, AIR CLEANER HOUSING

17260-VM0-000

Unavailable

16

HOUSING, AIR CLEANER (UPPER) (NOT AVAILABLE)

17300-VM0-770

Unavailable

17

DUCT, IN.

17317-VM0-770

Unavailable

18

BAND, IN. DUCT (NOT AVAILABLE)

17318-VM0-770

Unavailable

19

GROMMET, TAILLIGHT WIRE HARNESS

17319-VM0-000

Unavailable

20

TUBE, DRAIN

17358-964-000

Unavailable

21

RUBBER, METER CUSHION

37210-437-000

Unavailable

22

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

23

COLLAR, FENDER SETTING

61104-444-000

$7.61

24

LABEL, AIR CLEANER HOUSING (UPPER) (NOT AVAILABLE)

87111-950-000

Unavailable

25

LABEL, CAUTION

87505-VM0-770

Unavailable

26

BOLT, AIR CLEANER COVER

90108-VM0-000

Unavailable

27

BOLT-WASHER (6X16)

93404-06016-00

$1.55

27

BOLT-WASHER (6X16) This part replaces 93494-06016-00.

93404-06016-00

$1.55

28

SCREW, PAN (4X20)

93500-04020-0H

$1.49

29

SCREW, PAN (5X16)

93500-05016-0G

$1.49

30

NUT, FLANGE (6MM)

94050-06000

$1.49

31

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

32

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

$2.23

32

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

32

BOLT, FLANGE (6X80)

96001-06080-07

$2.23
