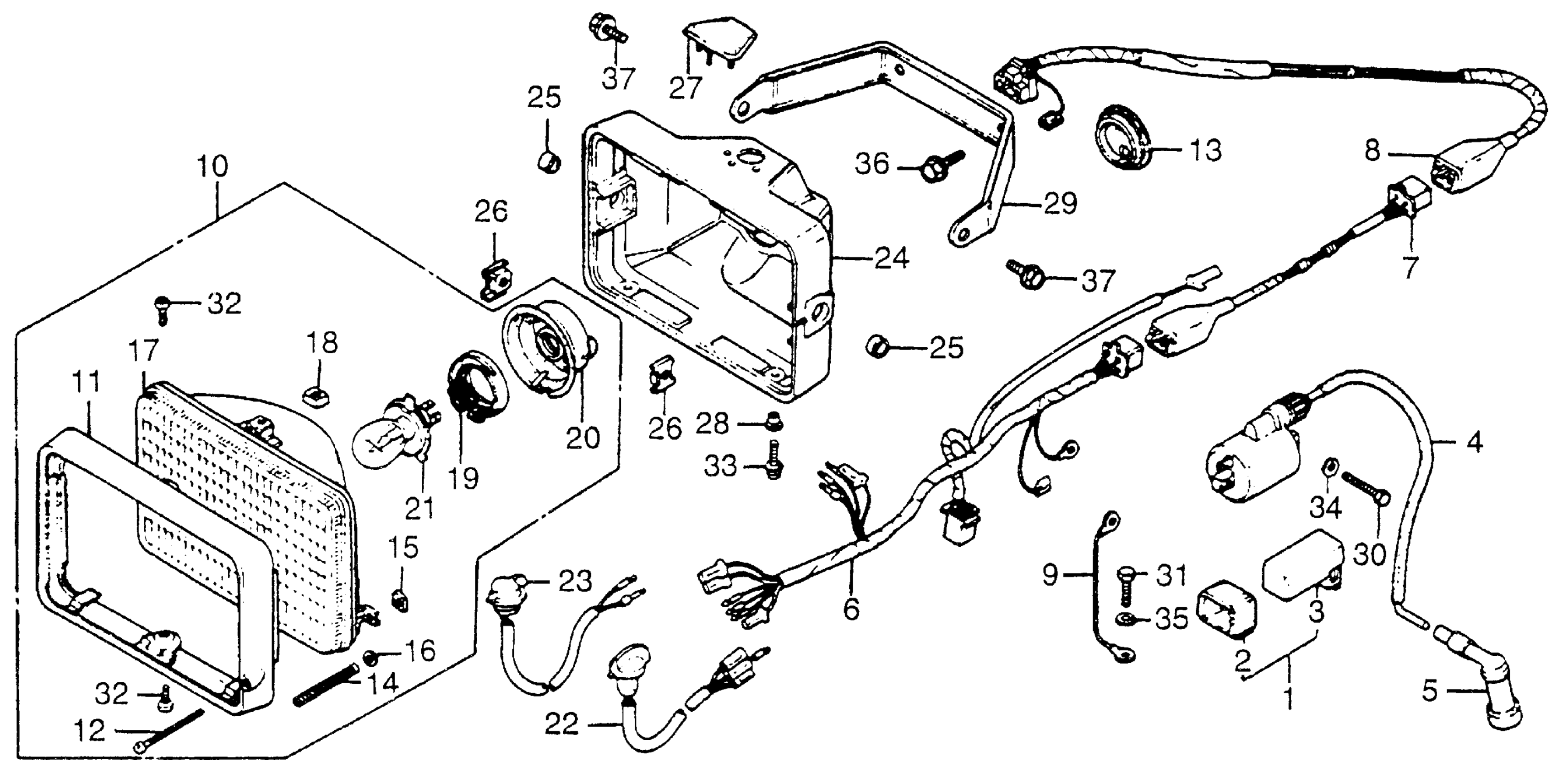

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 WIRE HARNESS + HEADLIGHT + SWITCH + IGNITION COIL 81-84 Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL ASSY. (CDI) (NOT AVAILABLE)

30400-950-000

Unavailable

2

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

3

MODULE, IGNITION CONTROL (CDI)

30410-950-003

Unavailable

4

COIL ASSY., IGNITION

30500-VM3-405

Unavailable

4

COIL ASSY., IGNITION This part replaces 30500-950-023.

30500-VM3-405

Unavailable

4

COIL ASSY., IGNITION This part replaces 30500-958-000.

30500-VM3-405

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

6

WIRE HARNESS (NOT AVAILABLE)

32100-950-020

Unavailable

7

SUB-CABLE A, HEADLIGHT (NOT AVAILABLE)

32101-950-000

Unavailable

8

SUB-CABLE, HEADLIGHT (NOT AVAILABLE)

32102-950-010

Unavailable

9

WIRE, ENGINE GROUND (NOT AVAILABLE)

32610-950-020

Unavailable

10

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-950-033

Unavailable

11

RIM, HEADLIGHT This part replaces 33101-958-003.

33101-471-003

Unavailable

12

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

13

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

33104-950-010

Unavailable

14

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

15

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

16

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

17

HEADLIGHT UNIT (NOT AVAILABLE)

33120-950-013

Unavailable

18

NUT, UNIT HOLDER

33128-471-003

$1.62

19

HOLDER, HEADLIGHT SOCKET

33131-471-901

Unavailable

19

HOLDER, HEADLIGHT SOCKET This part replaces 33140-950-003.

33131-471-901

Unavailable

20

COVER, RUBBER This part replaces 33141-950-003.

33180-471-902

$11.93

20

COVER, RUBBER

33180-471-902

$11.93

21

BULB, HEADLIGHT (12V/60W) (A5988) (STANLEY)

34901-950-003

$13.08

22

SWITCH ASSY., HEADLIGHT (NOT AVAILABLE)

35200-950-013

Unavailable

23

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

35300-950-013

Unavailable

24

CASE, HEADLIGHT *R109* (PASSION RED)

61301-958-023ZA

Unavailable

25

COLLAR, HEADLIGHT CASE

61302-471-000

Unavailable

26

NUT, HEADLIGHT CASE

61303-105-000

$3.81

27

GROMMET, LIGHTING SWITCH (NOT AVAILABLE)

61303-950-000

Unavailable

28

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

29

BRACKET, HEADLIGHT CASE *R109* (PASSION RED) (NOT AVAILABLE)

66305-950-010ZA

Unavailable

30

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

30

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

31

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

31

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

31

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

32

SCREW, PAN (5X8)

93500-05008-0H

$1.49

33

SCREW-WASHER (5X16)

93892-05016-00

$1.49

34

WASHER, SPRING (5MM)

94111-05000

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

36

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

37

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

37

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
