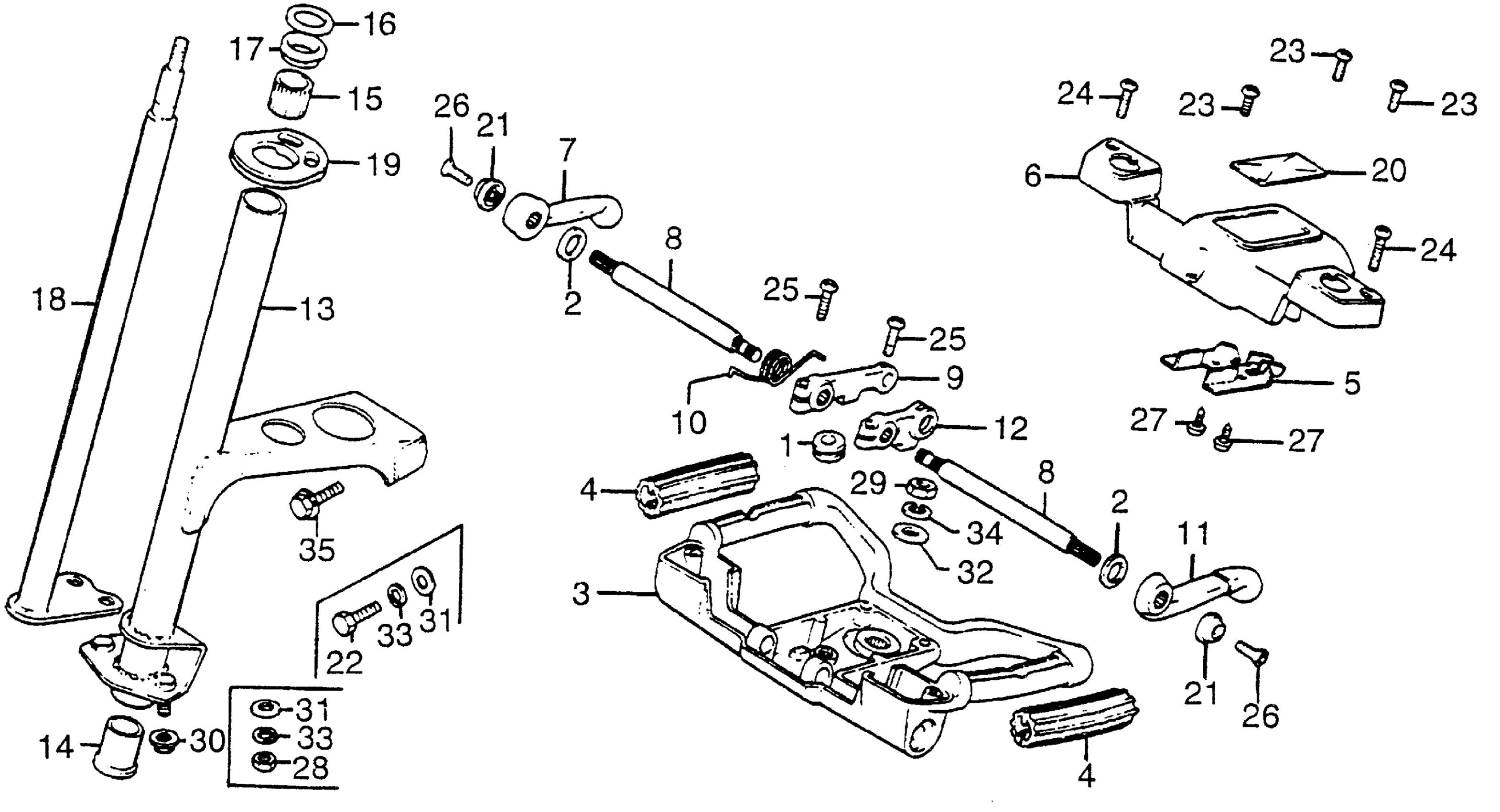

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 STEERING WHEEL + STEERING COLUMN + CONTROL LEVERS Diagram

#

Description
Price

1

GROMMET, STEERING WHEEL (NOT AVAILABLE)

53117-950-000

Unavailable

2

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

3

HANDLEBAR, WHEEL (NOT AVAILABLE)

53110-950-000

Unavailable

4

GRIP, STEERING WHEEL (NOT AVAILABLE)

53115-950-000

Unavailable

5

HOLDER, STEERING WHEEL

53116-950-010

Unavailable

6

COVER, STEERING WHEEL (NOT AVAILABLE)

53120-950-010

Unavailable

7

CONTROL LEVER, THROTTLE (NOT AVAILABLE)

53140-950-000

Unavailable

8

SHAFT, CONTROL LEVER (NOT AVAILABLE)

53142-950-000

Unavailable

9

ARM, THROTTLE LEVER (NOT AVAILABLE)

53143-950-010

Unavailable

10

SPRING, THROTTLE RETURN (NOT AVAILABLE)

53144-950-020

Unavailable

11

CONTROL LEVER, BRAKE (NOT AVAILABLE)

53170-950-000

Unavailable

12

ARM, BRAKE (NOT AVAILABLE)

53173-950-000

Unavailable

13

COLUMN, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53210-950-010ZA

Unavailable

14

BUSH, STEERING SHAFT

53215-950-000

$19.49

15

BUSH This part replaces 53221-579-030.

53221-SA0-003

Unavailable

16

WASHER, STEERING COLUMN (NOT AVAILABLE)

53222-950-000

Unavailable

17

RING, COLUMN THRUST (NOT AVAILABLE)

53224-594-000

Unavailable

18

SHAFT, STEERING (NOT AVAILABLE)

53310-950-010

Unavailable

19

GROMMET, STEERING WHEEL (NOT AVAILABLE)

80202-950-000

Unavailable

20

LABEL, STEERING WHEEL (NOT AVAILABLE)

87507-950-010

Unavailable

21

WASHER, SETTING (NOT AVAILABLE)

90552-538-000

Unavailable

23

SCREW, PAN (4X8)

93500-04008-0A

$1.49

24

SCREW, PAN (4X18)

93500-04018-0A

$1.49

25

SCREW, PAN (5X16)

93500-05016-0A

$1.49

26

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

27

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93901-24110

Unavailable

29

NUT, HEX. (12MM)

94001-12000-0S

$1.66

30

NUT, FLANGE (8MM)

94050-08000

$1.49

32

WASHER, PLAIN (12MM)

94101-12000

$1.49

34

WASHER, SPRING (12MM)

94111-12000

$1.49

35

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

35

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

35

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

35

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

35

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80
