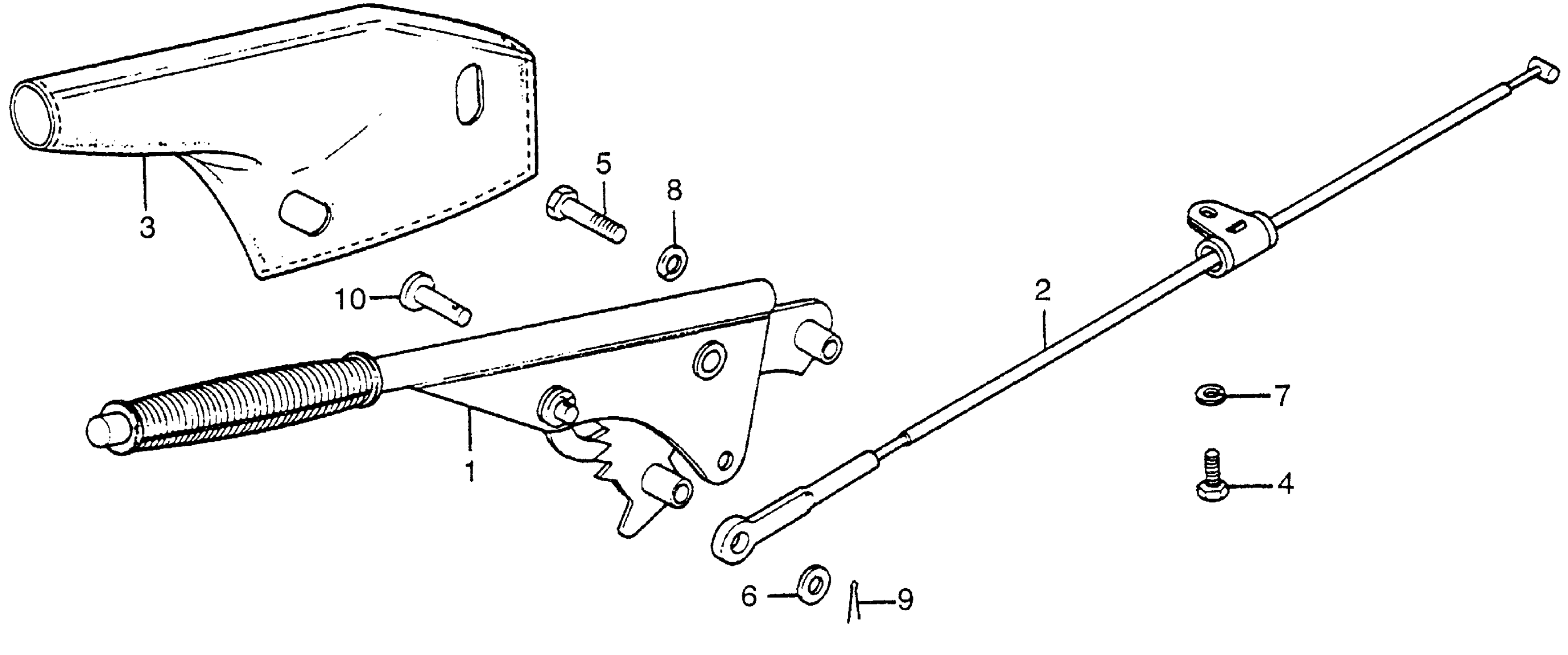

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 HAND BRAKE + HAND BRAKE CABLE Diagram

LEVER ASSY., HAND BRAKE (NOT AVAILABLE)

47105-950-000

Unavailable

CABLE, PARKING BRAKE

47520-950-003

Unavailable

COVER, PARKING BRAKE (NOT AVAILABLE)

72829-950-000

Unavailable

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

PIN A, BRAKE ROD JOINT

95015-51000

Unavailable
