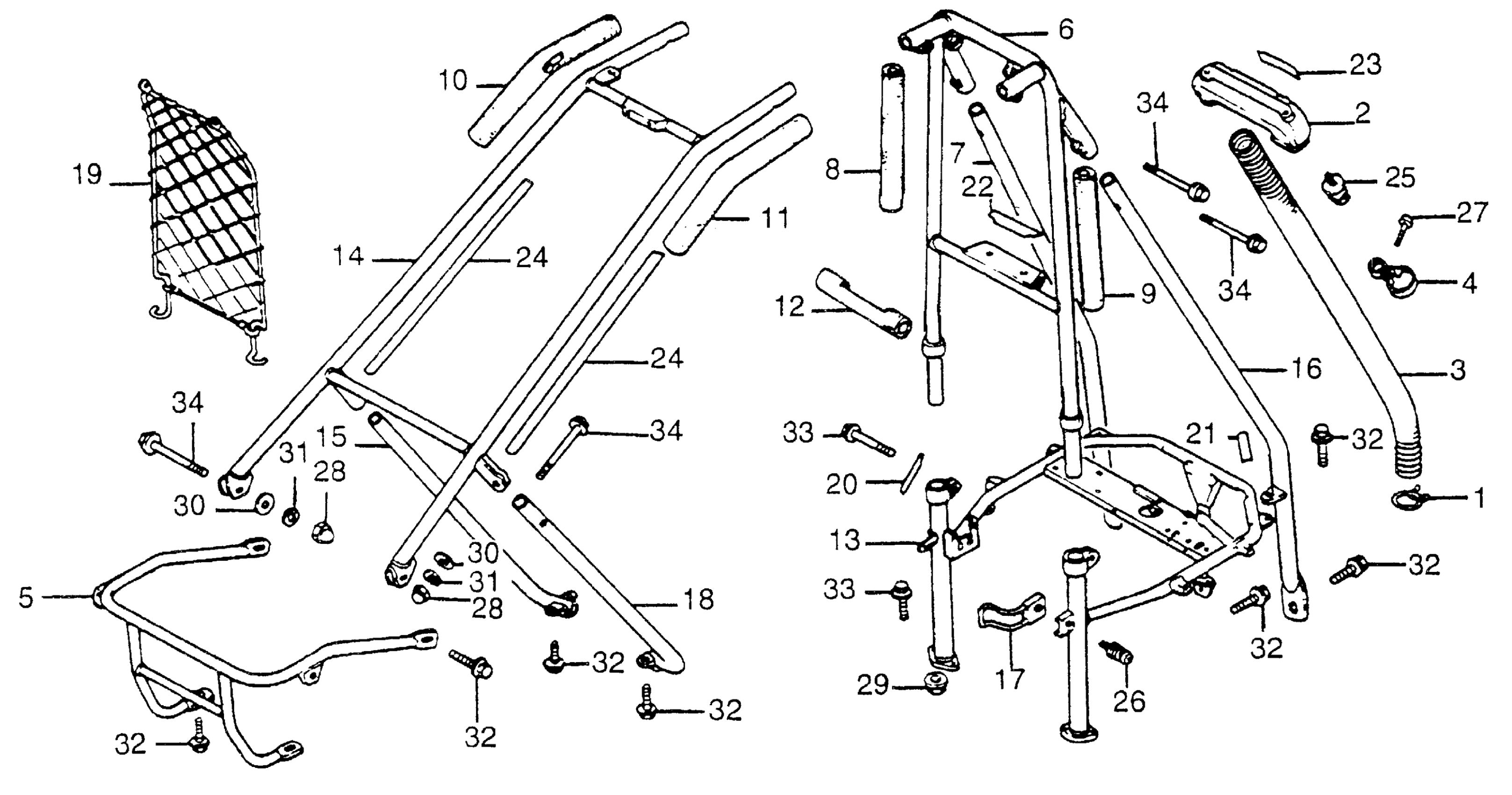

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 GRAB RAIL + FRONT BUMPER + ROLL BAR 81-84 Diagram

#

Description
Price

1

CLIP, AIR IN. TUBE

17243-671-000

Unavailable

2

HOUSING, AIR CLEANER (UPPER) (NOT AVAILABLE)

17316-950-000

Unavailable

3

DUCT, AIR IN.

17317-950-000

Unavailable

4

BAND, IN. DUCT (NOT AVAILABLE)

17318-950-000

Unavailable

5

BUMPER, FR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 62510-950-040ZA.

62510-950-643ZA

Unavailable

5

BUMPER, FR. *R109* (PASSION RED) (NOT AVAILABLE)

62510-950-643ZA

Unavailable

6

BAR, CENTER ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71910-950-030ZA

Unavailable

7

BAR, R. RR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71912-950-030ZA

Unavailable

8

PAD, R. CENTER ROLL BAR (NOT AVAILABLE)

71915-950-030

Unavailable

9

PAD, L. CENTER ROLL BAR

71916-950-010

Unavailable

10

PAD, R. FR. ROLL BAR (NOT AVAILABLE)

71917-950-000

Unavailable

11

PAD, L. FR. ROLL BAR (NOT AVAILABLE)

71918-950-000

Unavailable

12

PAD C, CENTER ROLL BAR (NOT AVAILABLE)

71919-950-000

Unavailable

13

PIPE, GUARD *R109* (PASSION RED) (NOT AVAILABLE)

71920-950-030ZA

Unavailable

14

BAR, FR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71922-950-000ZA

Unavailable

15

BAR, R. SIDE ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71924-950-000ZA

Unavailable

16

BAR, L. RR. ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71932-950-020ZA

Unavailable

17

GUARD, SEAT BELT (NOT AVAILABLE)

71941-950-000

Unavailable

18

BAR, L. SIDE ROLL *R109* (PASSION RED) (NOT AVAILABLE)

71944-950-000ZA

Unavailable

19

NET ASSY., HEAD RETRACT (NOT AVAILABLE)

77800-950-000

Unavailable

20

LABEL, STARTER WARNING (NOT AVAILABLE)

87102-950-000

Unavailable

21

LABEL, HOT WARNING

87105-950-000

Unavailable

22

LABEL, ROLL BAR (NOT AVAILABLE)

87106-950-030

Unavailable

23

LABEL, AIR CLEANER HOUSING (UPPER) (NOT AVAILABLE)

87111-950-000

Unavailable

24

STRIPE, ROLL BAR (NOT AVAILABLE)

87112-950-000

Unavailable

25

BOLT-WASHER (6X12)

93404-06012-07

$1.55

25

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

25

BOLT-WASHER (6X12) This part replaces 93494-06012-08.

93404-06012-07

$1.55

26

SCREW, PAN (5X16)

93500-05016-0G

$1.49

27

SCREW-WASHER (6X14) (NOT AVAILABLE)

93893-06014-00

Unavailable

28

NUT, CAP (8MM)

94021-08000-0S

$1.55

29

NUT, FLANGE (8MM)

94050-08000

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49

32

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

32

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

33

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

33

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

34

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

34

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
