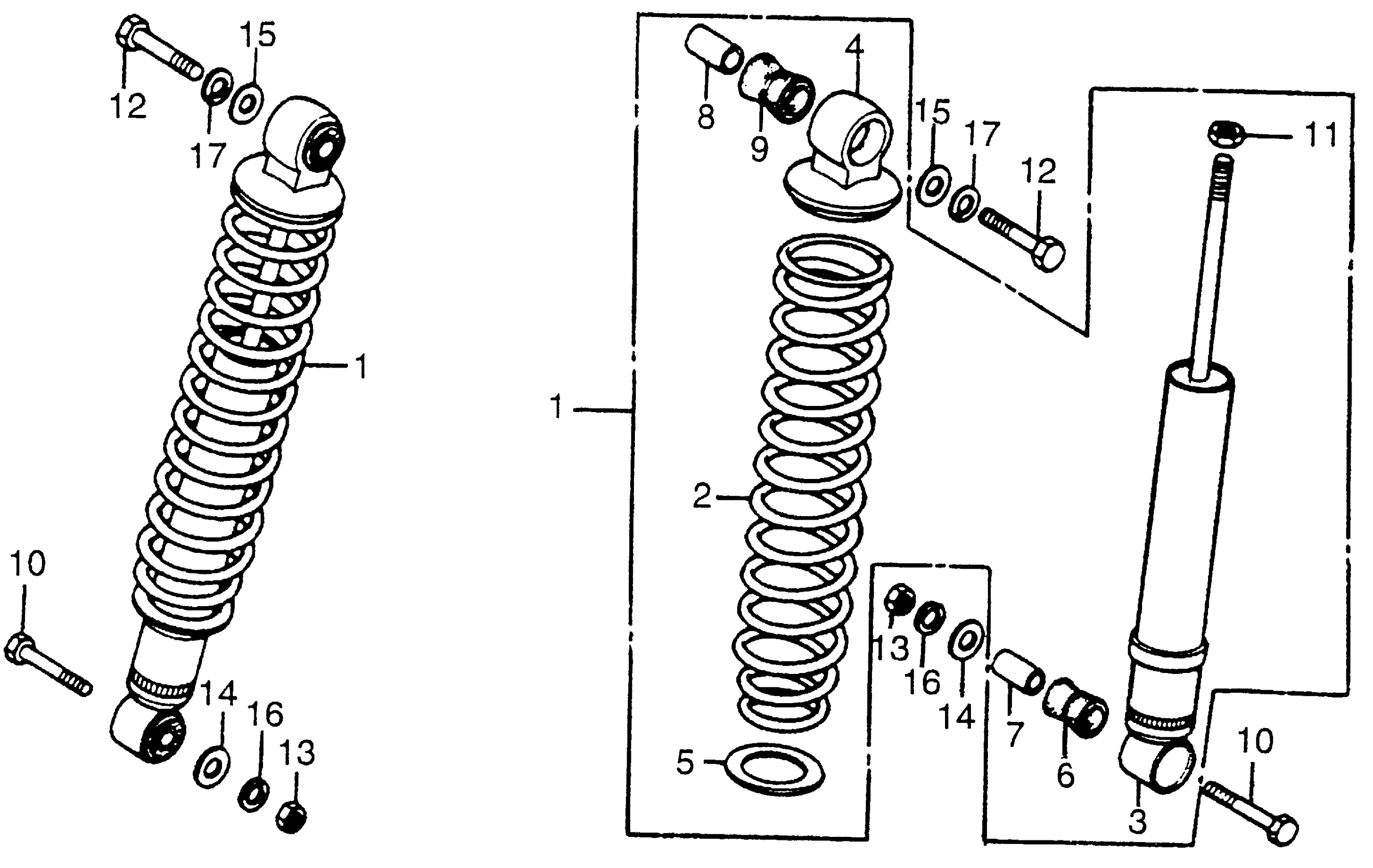

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 FRONT FORK 81-84 Diagram

FORK ASSY., FR. (NOT AVAILABLE)

51400-950-013

Unavailable

SPRING, FR. FORK (NOT AVAILABLE)

51403-950-013

Unavailable

PIPE, FR. FORK (NOT AVAILABLE)

51410-950-013

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-153-003

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (THIS APPLICATION-FRONT) (NOT AVAILABLE)

52447-028-710

Unavailable

BUSH, RR. SHOCK ABSORBER RUBBER (THIS APPLICATION-FRONT)

52476-001-020

$4.92

COLLAR, SWINGARM RUBBER BUSH (THIS APPLICATION-FRONT)

52486-001-000

$4.85

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH (THIS APPLICATION-FRONT)

52488-001-010

Unavailable

BUSH, RUBBER (UPPER) (SHOWA)

52489-399-601

$5.28

BOLT, HEX. (10X44) (NOT AVAILABLE)

90125-642-000

Unavailable

NUT, LOCK (NOT AVAILABLE)

90308-292-000

Unavailable

BOLT, HEX. (12X40) This part replaces 92000-12040-0A.

92101-12040-0A

$2.05

BOLT, HEX. (12X40)

92101-12040-0A

$2.05

NUT, HEX. (10MM)

94001-10000-0S

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, PLAIN (12MM)

94101-12000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

WASHER, SPRING (12MM)

94111-12000

$1.49
