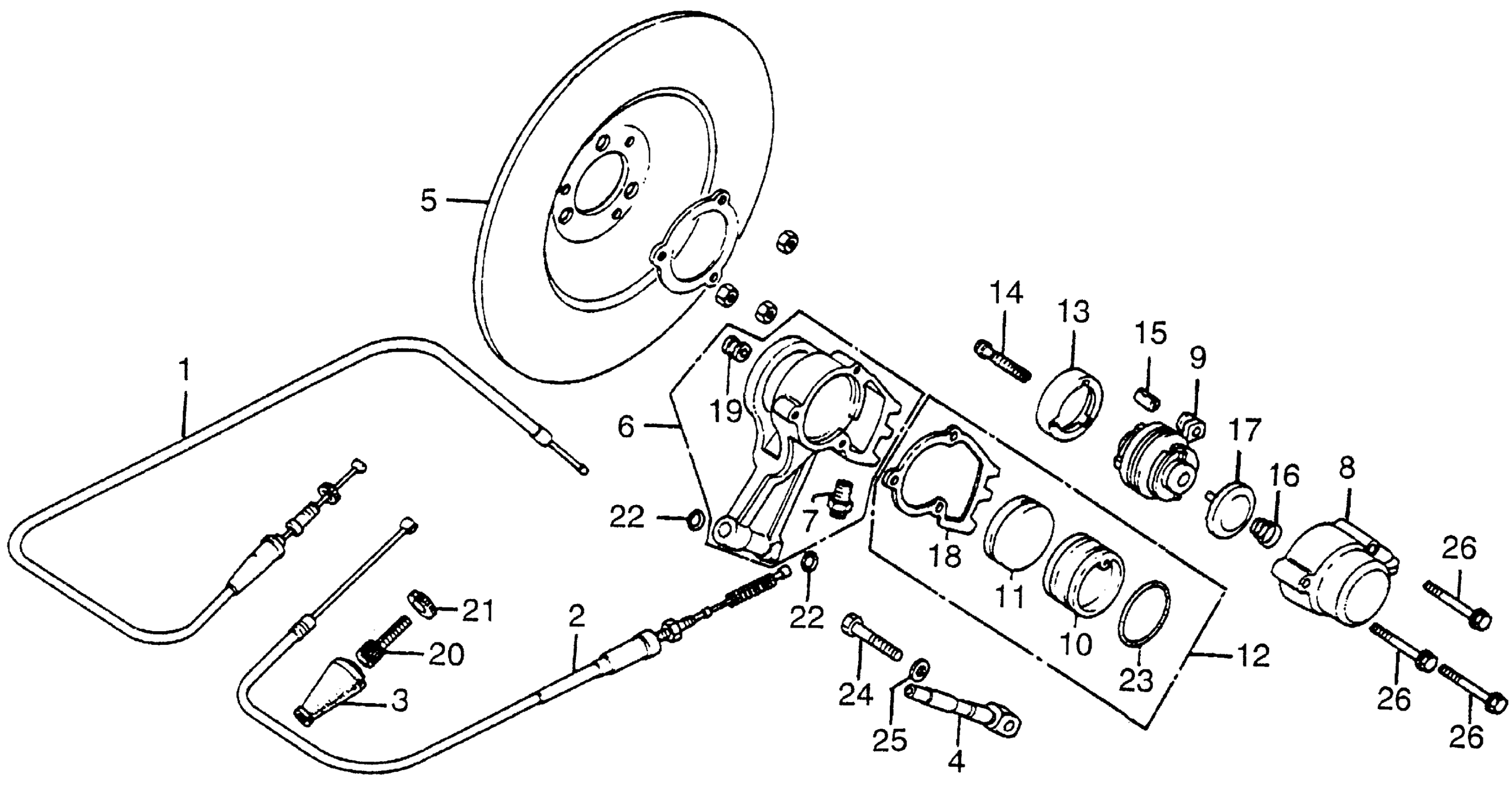

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 DISK BRAKE + CALIPER + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-950-010

Unavailable

2

CABLE, BRAKE

43460-950-003

Unavailable

3

BOOT, BRAKE CABLE

43465-950-010

Unavailable

4

PIN, CALIPER HOLDER

45116-107-720

Unavailable

5

DISK, BRAKE (NOT AVAILABLE)

45120-950-000

Unavailable

6

BODY, CALIPER *NH83L* (OFF BLACK) (NOT AVAILABLE)

45310-107-720CT

Unavailable

7

BOLT, BRAKE CABLE

45312-107-720

Unavailable

8

COVER, CALIPER *NH83L* (OFF BLACK) (NOT AVAILABLE)

45315-107-720CT

Unavailable

9

ARM, BRAKE

45320-324-700

Unavailable

10

*431A0-950-670 This part replaces 45340-950-000.

45340-950-305

Unavailable

11

PAD B (NOT AVAILABLE)

45345-950-000

Unavailable

12

PAD SET (NOT AVAILABLE)

45350-950-000

Unavailable

13

GUIDE, THRUST PLATE

45351-107-720

Unavailable

14

BOLT, ADJUSTING

45353-354-700

Unavailable

15

PIN, CABLE END

45355-107-720

Unavailable

16

SPRING, RATCHET FIXING

45357-107-720

Unavailable

17

RATCHET, ADJUSTING

45361-107-720

Unavailable

18

GASKET, CALIPER

45381-107-720

Unavailable

19

GROMMET, PAD (NOT AVAILABLE)

45383-107-720

Unavailable

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

21

NUT, FIXING

90321-315-670

$7.31

21

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

22

O-RING (8.5X1.7)

90751-GK1-003

$2.70

22

O-RING (8.5X1.7) This part replaces 90751-107-720.

90751-GK1-003

$2.70

23

O-RING (36X2.4)

90752-107-720

$5.03

24

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

24

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

24

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

26

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
