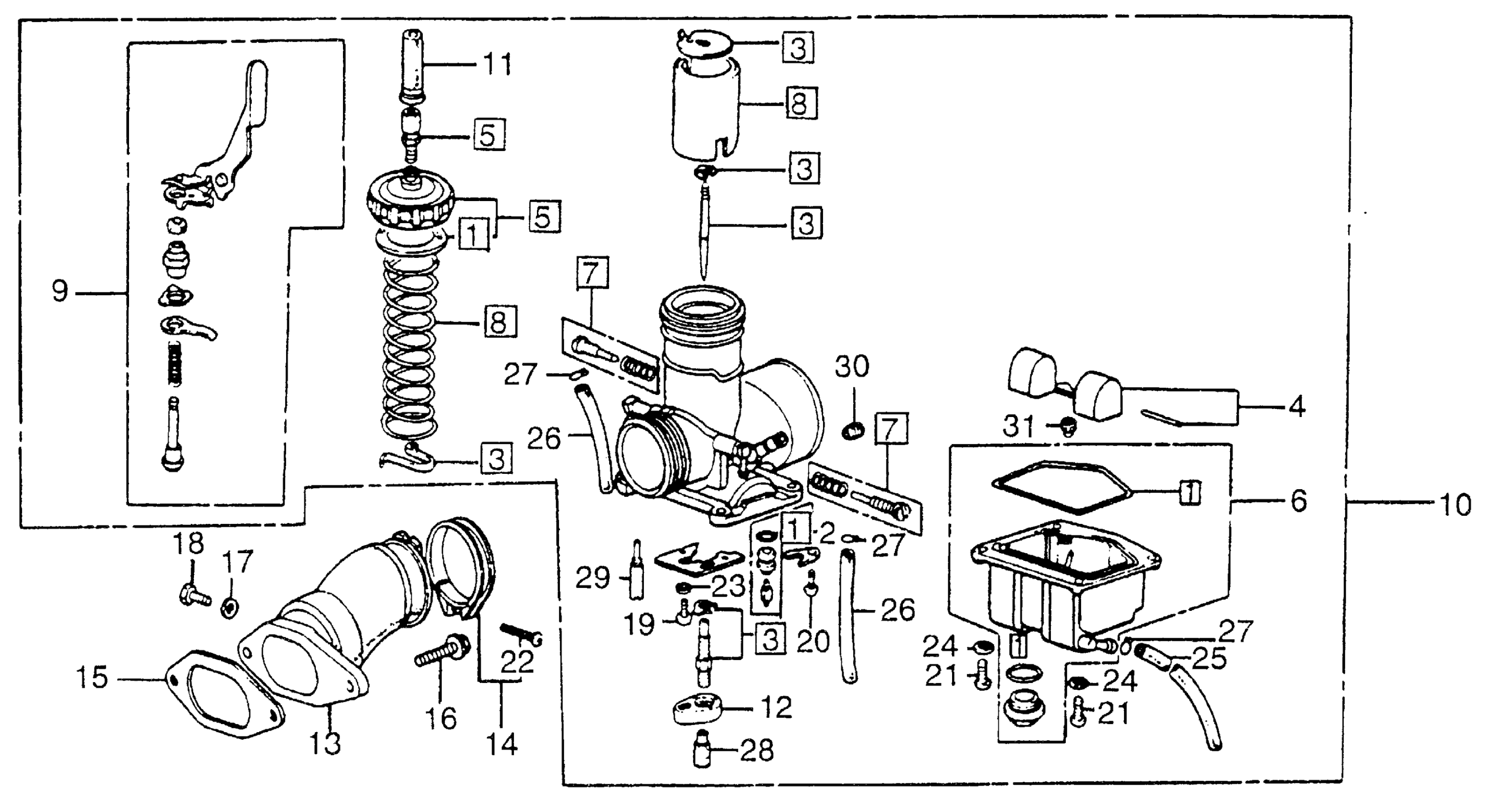

Honda FL250A (84) ODYSSEY, JPN, VIN# JH3TB040-EC700051 TO JH3TB040-EC703225 CARBURETOR + INLET PIPE Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-360-014.

16010-360-305

Unavailable

1

GASKET SET

16010-360-305

Unavailable

2

VALVE SET, FLOAT

16011-950-003

Unavailable

3

NEEDLE SET, JET

16012-358-034

Unavailable

4

FLOAT SET

16013-360-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-360-700

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-360-810

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-950-003

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-950-003

Unavailable

9

VALVE SET, STARTER (NOT AVAILABLE)

16046-950-003

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-950-013

Unavailable

11

CAP, RUBBER (NOT AVAILABLE)

16118-360-004

Unavailable

12

HOLDER, JET (NOT AVAILABLE)

16168-360-700

Unavailable

13

PIPE, INLET

16221-358-000

Unavailable

14

BAND, INSULATOR (NOT AVAILABLE)

16223-358-000

Unavailable

15

GASKET, INLET This part replaces 16229-358-000.

16229-358-306

$2.93

15

GASKET, INLET

16229-358-306

$2.93

16

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

17

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

SCREW, PAN (3X6)

93500-03006-0A

$1.49

20

SCREW, PAN (4X10)

93500-04010-0A

$1.49

21

SCREW, PAN (4X14)

93500-04014-0A

$1.49

22

SCREW, PAN (4X16)

93500-04016-0G

$1.49

23

WASHER, SPRING (3MM)

94111-03000

$1.49

24

WASHER, SPRING (4MM)

94111-04000

$1.49

25

BULK HOSE, FUEL (3.5X3000) (3.5X150)

95001-35003-60M

$20.85

26

BULK HOSE, FUEL (3.5X3000) (3.5X210)

95001-35003-60M

$20.85

27

CLIP, TUBE (B7)

95002-02070

$1.80

28

JET, MAIN (#120)

99101-357-1200

$19.84

29

JET, SLOW (#58)

99103-358-0580

Unavailable

30

JET, AIR (#200)

99105-357-2000

Unavailable

31

JET, AIR (#90)

99164-601-0900

Unavailable
