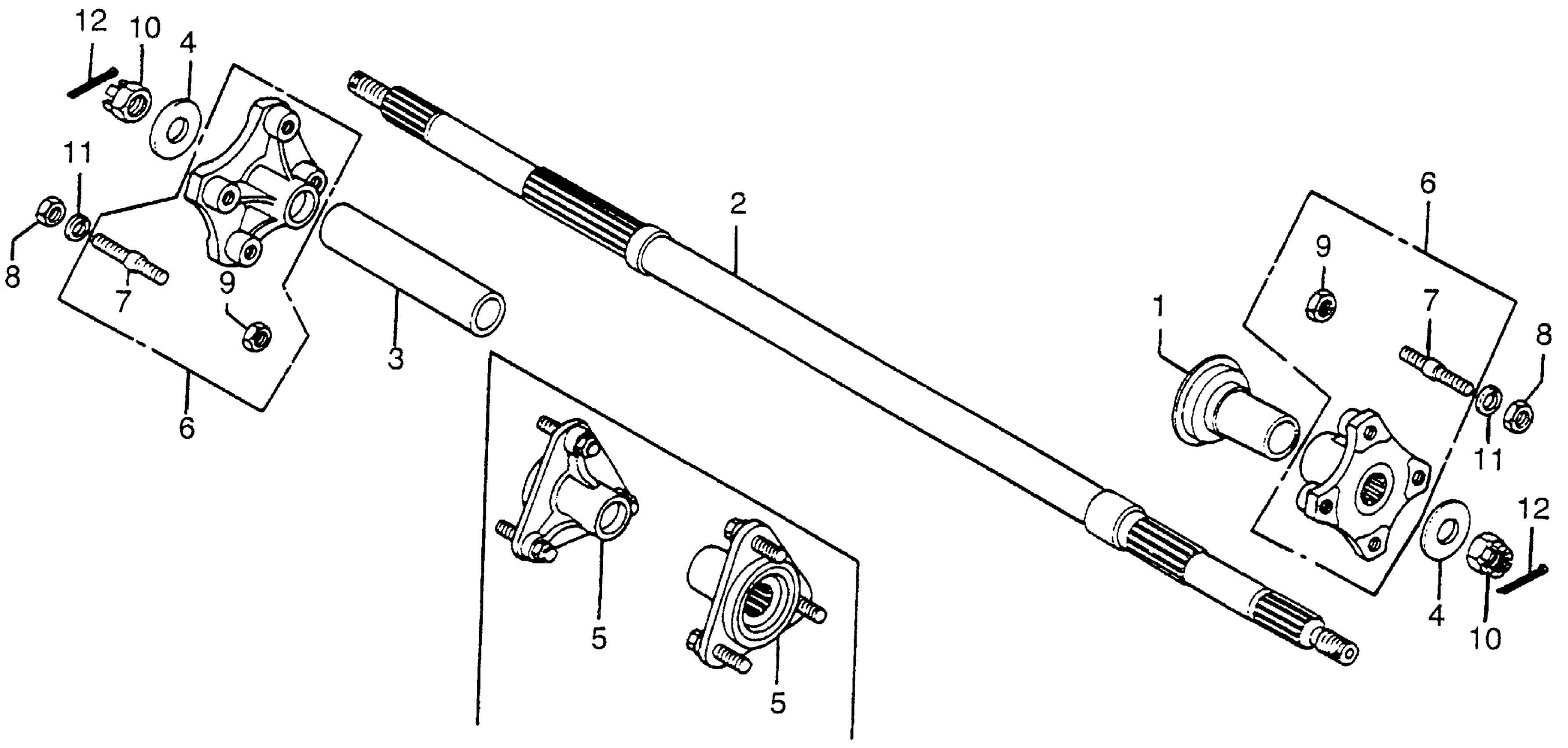

Honda FL250A (81) ODYSSEY, JPN, VIN# JH3TB040-BC400001 TO JH3TB040-BC406324 REAR WHEEL AXLE + REAR WHEEL HUB Diagram

#

Description

Price

1

SEAL, RR. AXLE

42305-950-000

Unavailable

2

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-950-000

Unavailable

3

PIPE, RR. AXLE DISTANCE (NOT AVAILABLE)

42315-950-010

Unavailable

4

WASHER (14MM)

42322-943-000

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42400-950-000

Unavailable

7

BOLT, STUD (8X38)

90927-950-300

Unavailable

8

NUT, HEX. (8MM)

94001-08000-0S

$1.31

9

NUT, HEX. (8MM)

94002-08000-0S

$1.31

10

NUT, CASTLE (14MM)

94011-14000-0S

$1.74

11

WASHER, SPRING (8MM)

94111-08000

Unavailable

12

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

12

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

12

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

12

PIN, COTTER (3.0X45)

94201-30450

$1.01
