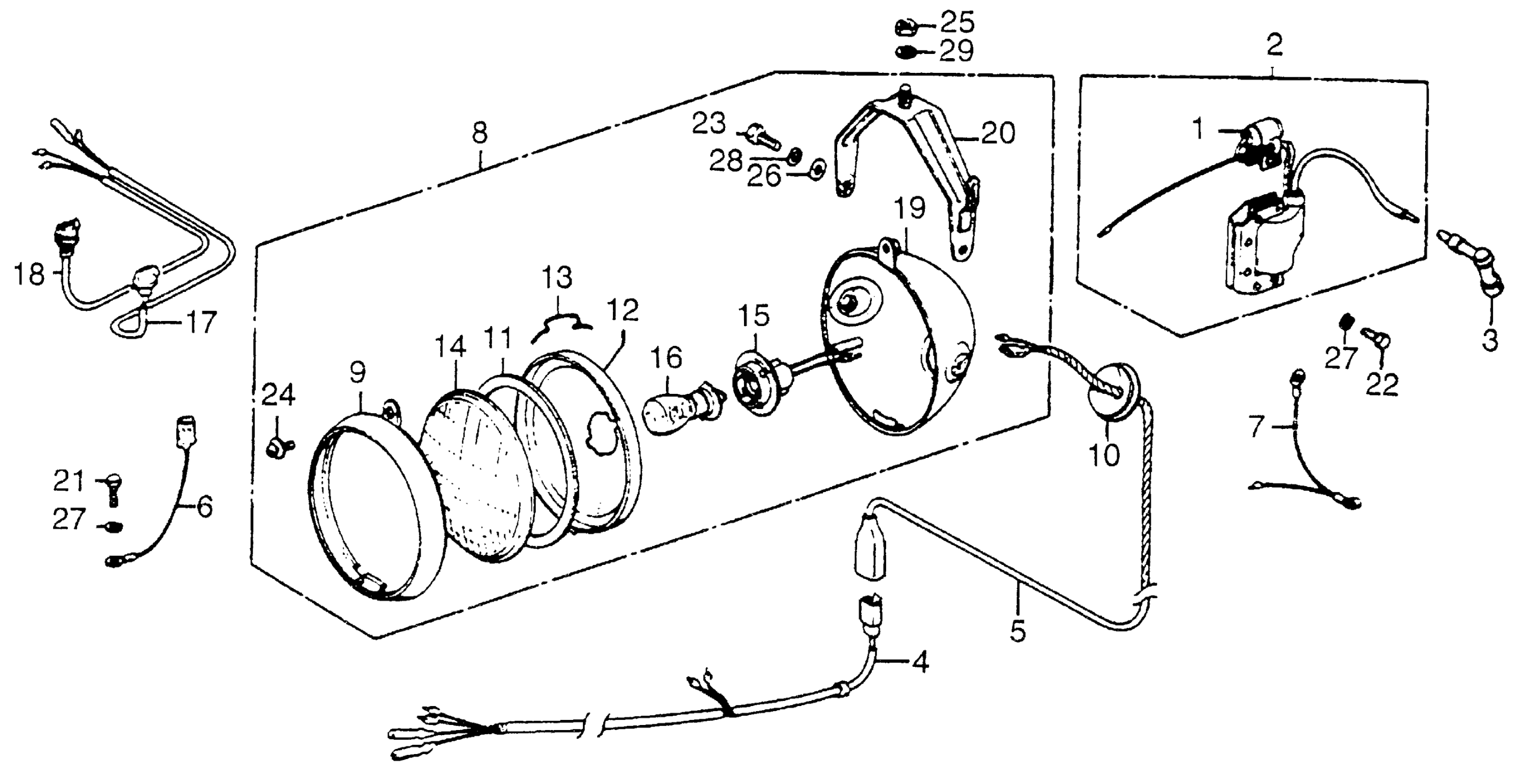

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 WIRE HARNESS + HEADLIGHT + SWITCH + IGNITION COIL 80 Diagram

#

Description
Price

1

CONDENSER ASSY. (TOYO)

30250-052-156

Unavailable

2

COIL, IGNITION This part replaces 30500-950-013.

30500-950-405

$118.02

2

COIL, IGNITION

30500-950-405

$118.02

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

4

WIRE HARNESS (NOT AVAILABLE)

32100-950-010

Unavailable

5

SUB-CABLE, HEADLIGHT (NOT AVAILABLE)

32102-950-000

Unavailable

6

WIRE, GROUND (NOT AVAILABLE)

32106-950-000

Unavailable

7

WIRE, ENGINE GROUND (NOT AVAILABLE)

32610-950-010

Unavailable

8

HEADLIGHT ASSY.

33100-950-023

Unavailable

9

RIM, HEADLIGHT (NOT AVAILABLE)

33101-950-000

Unavailable

10

GROMMET, HEADLIGHT CASE (NOT AVAILABLE)

33104-950-000

Unavailable

11

GASKET, HEADLIGHT LENS (NOT AVAILABLE)

33105-070-000

Unavailable

12

REFLECTOR, HEADLIGHT (NOT AVAILABLE)

33106-950-003

Unavailable

13

SPRING, UNIT HOLDER (STANLEY)

33108-229-003

Unavailable

14

LENS, HEADLIGHT (STANLEY)

33121-229-003

Unavailable

15

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-950-013

Unavailable

16

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-HB6-003.

34901-HC3-003

$10.57

16

BULB, HEADLIGHT (12V45/45W) (STANLEY) BULB (12V45/45W)

34901-HC3-003

$10.57

16

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-323-750.

34901-HC3-003

$10.57

17

SWITCH ASSY., HEADLIGHT (NOT AVAILABLE)

35200-950-003

Unavailable

18

SWITCH ASSY., STOP (NOT AVAILABLE)

35300-950-003

Unavailable

19

CASE, HEADLIGHT (NOT AVAILABLE)

61301-950-023

Unavailable

20

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

66305-950-013

Unavailable

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

22

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

23

BOLT, HEX. (8X20) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08020-0G.

92101-08020-0G

Unavailable

23

BOLT, HEX. (8X20) (SOURCE: VINTAGE PARTS INC.)

92101-08020-0G

Unavailable

24

SCREW-WASHER (5X12)

93892-05012-00

$1.49

25

NUT, HEX. (10MM)

94001-10000-0S

$1.49

26

WASHER, FLAT (8MM)

94101-08700

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

29

WASHER, SPRING (8MM)

94111-10000

$1.49
