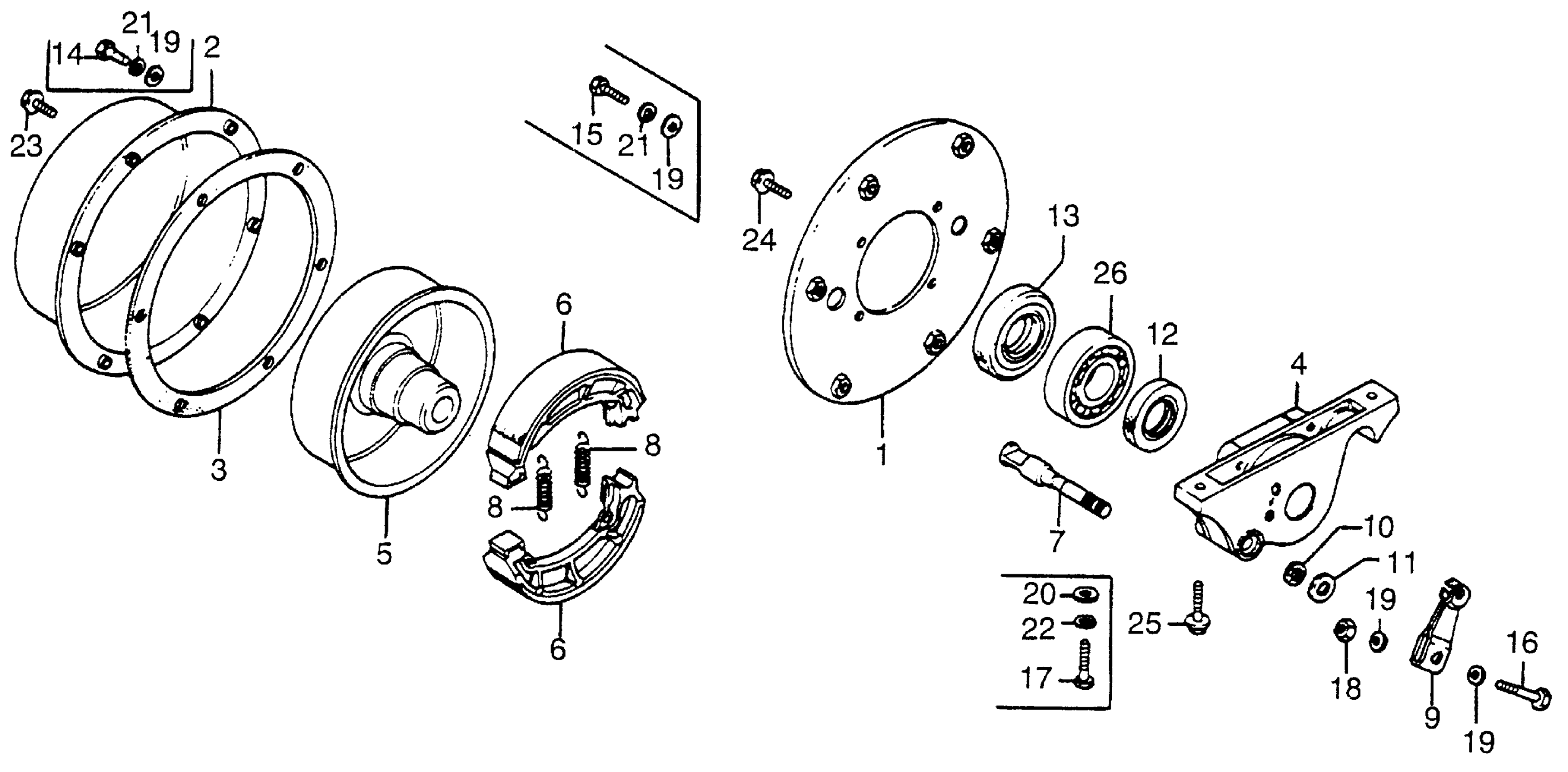

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 REAR BRAKE DRUM + REAR BRAKE Diagram

#

Description
Price

1

COVER A, BRAKE DRUM (NOT AVAILABLE)

40531-950-000

Unavailable

2

COVER B, BRAKE DRUM (NOT AVAILABLE)

40532-943-000

Unavailable

4

HOLDER, BEARING (NOT AVAILABLE)

41710-950-010

Unavailable

5

DRUM, RR. BRAKE (NOT AVAILABLE)

42622-950-000

Unavailable

6

SHOE SET, BRAKE This part replaces 43120-942-000.

06430-HF7-A30

$32.48

6

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

6

SHOE SET, BRAKE This part replaces 43120-968-682.

06430-HF7-A30

$32.48

6

SHOE SET, BRAKE This part replaces 45120-303-690.

06430-HF7-A30

$32.48

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-950-000

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

9

ARM, RR. BRAKE (NOT AVAILABLE)

43410-950-000

Unavailable

10

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

11

WASHER (14X26)

90527-634-670

Unavailable

12

OIL SEAL (35X55X8) (ARAI)

91201-950-003

Unavailable

13

DUST SEAL (40X62X7)

91203-918-015

$11.05

14

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

14

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

16

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

17

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

17

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

17

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49

26

BEARING, RADIAL BALL (6007)

96100-60070-10

Unavailable
