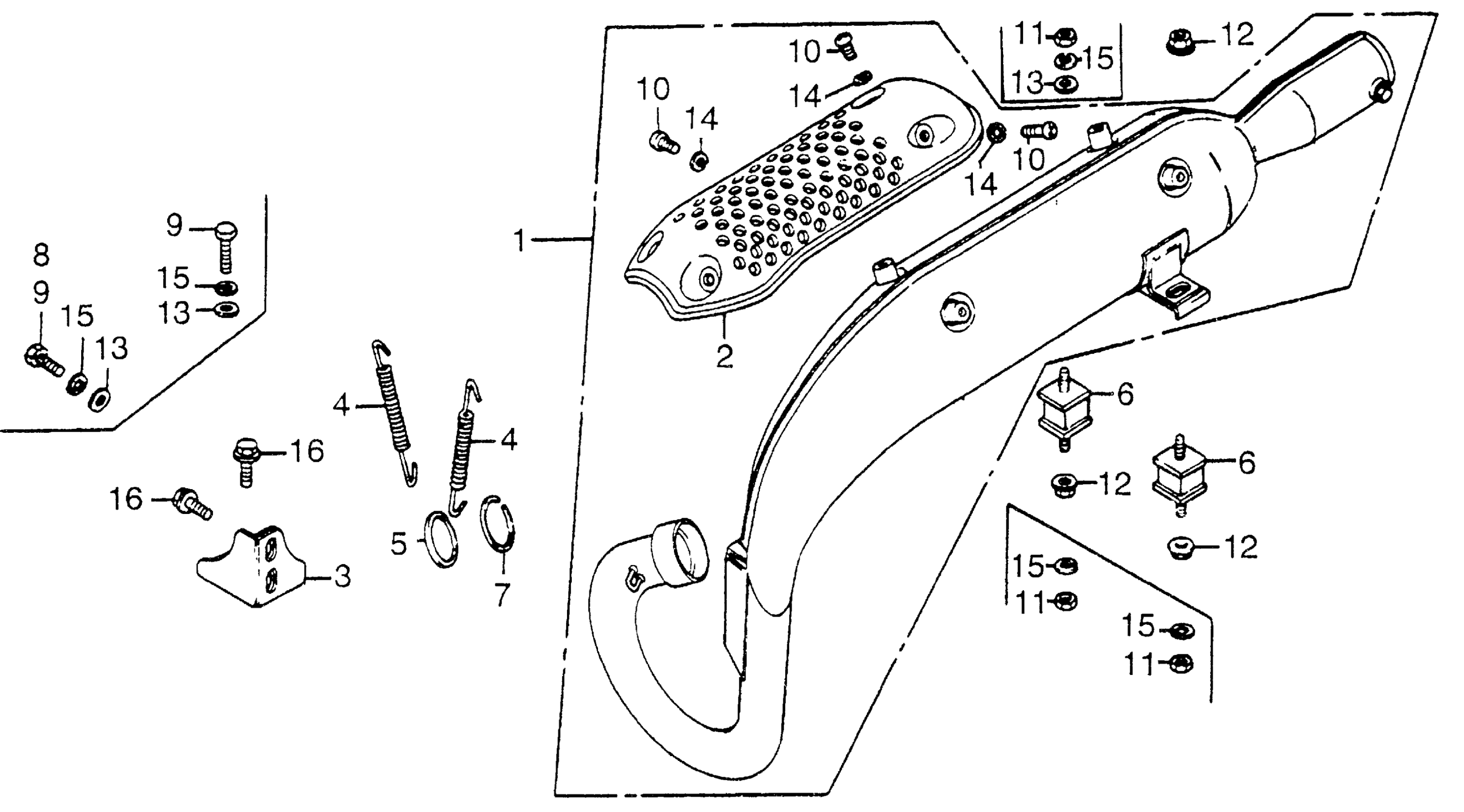

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 MUFFLER Diagram

#

Description
Price

1

MUFFLER, EX. *NH106* (HEATPROOF BLACK) (NOT AVAILABLE) This part replaces 18300-950-010SH.

18300-950-010ZA

Unavailable

1

MUFFLER, EX. *NH106* (HEATPROOF BLACK) (NOT AVAILABLE)

18300-950-010ZA

Unavailable

2

PROTECTOR, MUFFLER *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 18318-950-000SH.

18318-950-000ZA

Unavailable

2

PROTECTOR, MUFFLER *NH105* (MAT BLACK) (NOT AVAILABLE)

18318-950-000ZA

Unavailable

3

STAY, EX. PIPE *NH106* (HEATPROOF BLACK) (NOT AVAILABLE) This part replaces 18320-950-010SH.

18320-950-010ZA

Unavailable

3

STAY, EX. PIPE *NH106* (HEATPROOF BLACK) (NOT AVAILABLE)

18320-950-010ZA

Unavailable

4

SPRING, EX. PIPE

18332-357-010

$14.70

5

GASKET, EX. PIPE

18352-358-000

Unavailable

6

RUBBER, MUFFLER MOUNTING

18354-950-000

Unavailable

7

RING, EX. PIPE

18358-358-000

Unavailable

9

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

9

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

10

SCREW, PAN (6X8)

93500-06008-0G

Unavailable

10

SCREW, PAN (6X8) This part replaces 93500-06008-07.

93500-06008-0G

Unavailable

11

NUT, HEX. (8MM)

94001-08000-0S

$1.49

13

WASHER, PLAIN (8MM)

94101-08000

$1.49

14

WASHER, SPRING (6MM)

94111-06700

$1.49

15

WASHER, SPRING (8MM)

94111-08000

$1.49
