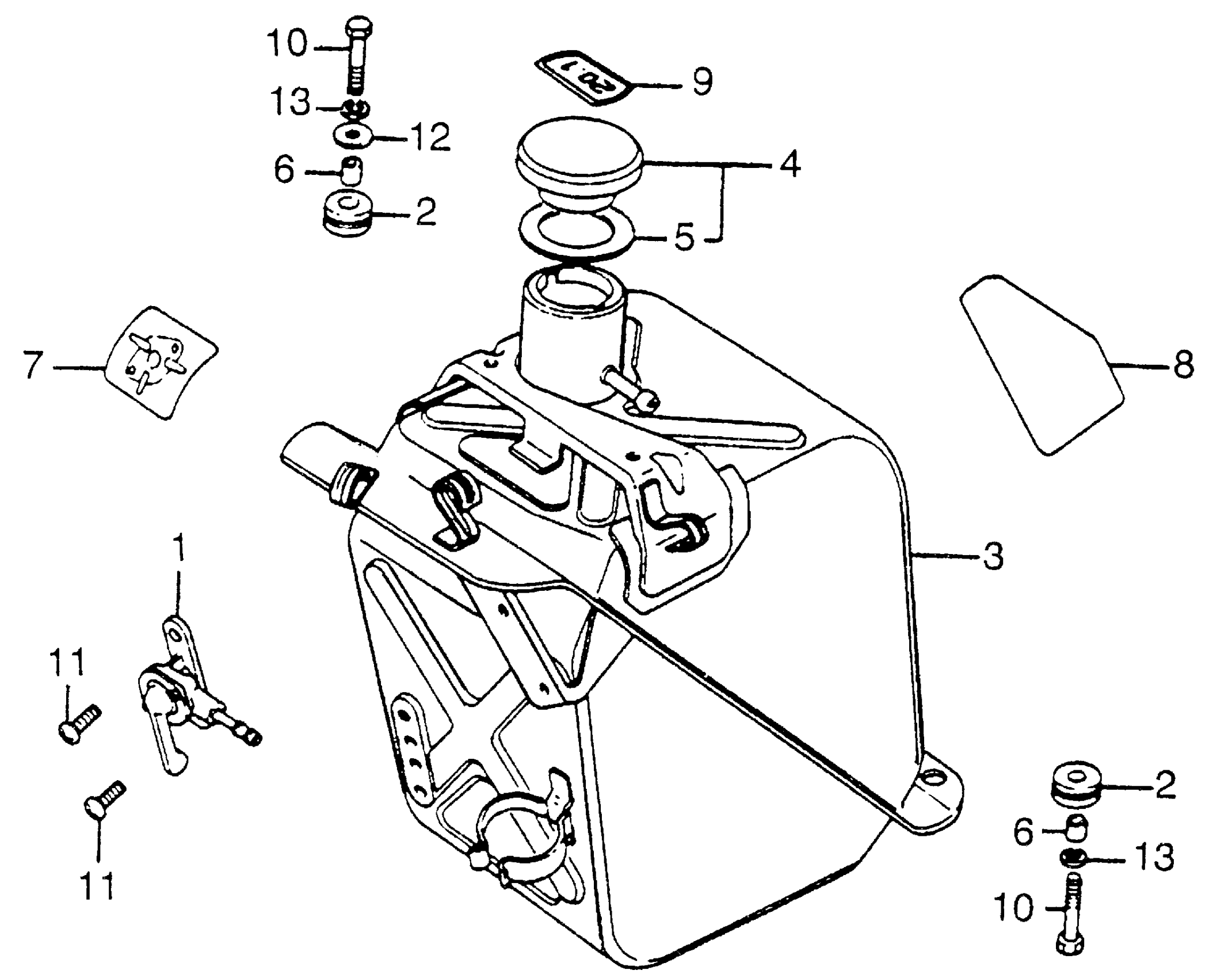

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 FUEL TANK + FUEL VALVE Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-371-015.

16950-371-025

$58.67

1

PETCOCK ASSY.

16950-371-025

$58.67

2

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

3

TANK, FUEL *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 17500-950-010SG.

17500-950-010ZA

Unavailable

3

TANK, FUEL *NH105* (MAT BLACK) (NOT AVAILABLE)

17500-950-010ZA

Unavailable

4

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

4

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

4

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

4

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

5

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

5

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

6

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

7

LABEL, RESERVOIR VALVE (NOT AVAILABLE)

87101-950-010

Unavailable

8

LABEL, FUEL CAUTION (NOT AVAILABLE)

87107-950-000

Unavailable

9

LABEL, MIXTURE (NOT AVAILABLE)

87109-950-000

Unavailable

10

BOLT, HEX. (6X25) This part replaces 92000-06024.

92101-06025-0A

$1.62

10

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

10

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

10

BOLT, HEX. (6X25)

92000-06025-00

Unavailable

10

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

10

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

11

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

12

WASHER, PLAIN (6MM)

94103-06000

$1.49

13

WASHER, SPRING (6MM)

94111-06000

$1.49
