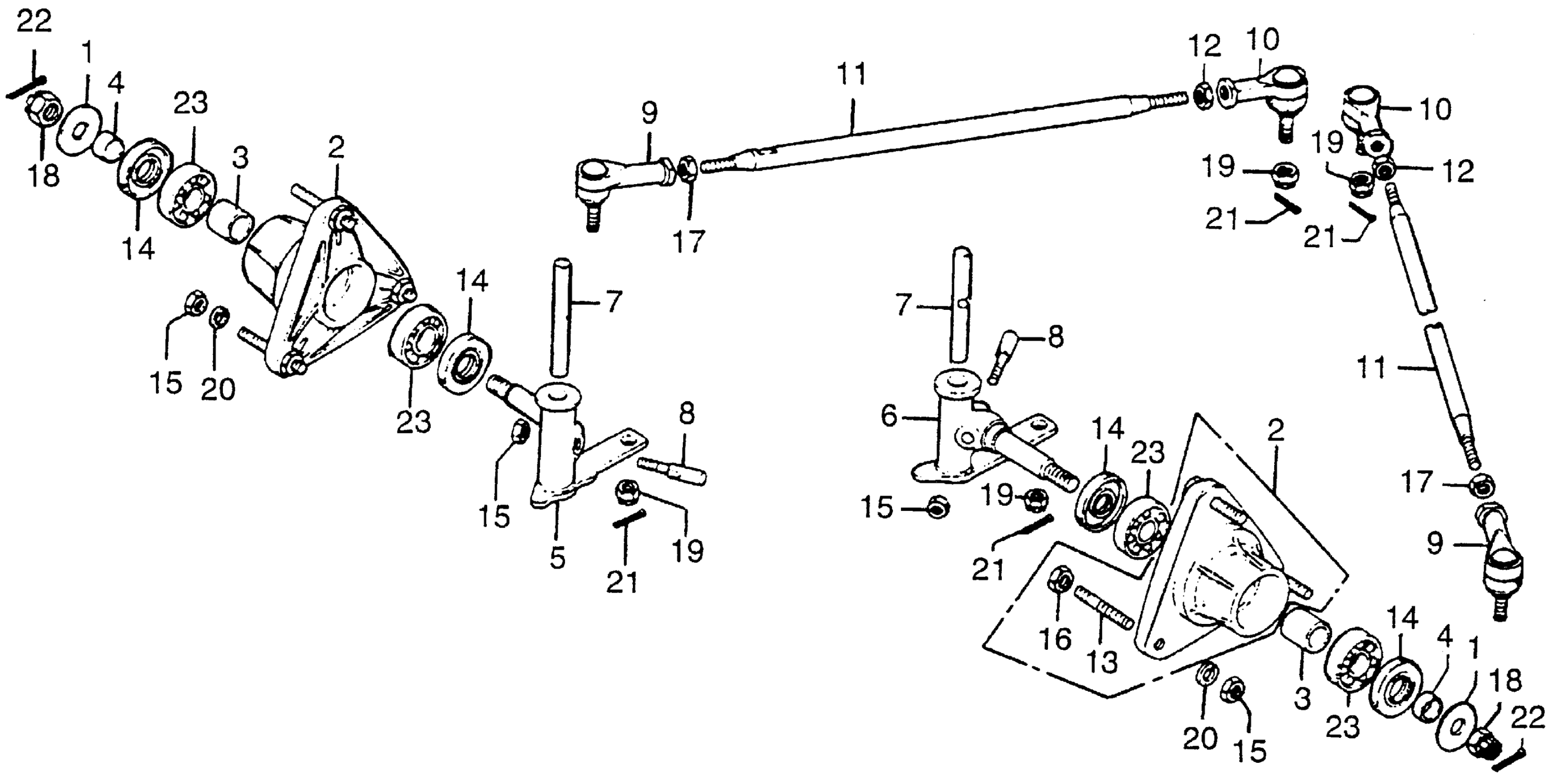

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 FRONT WHEEL HUB + KNUCKLE + TIE ROD Diagram

WASHER (15MM) (NOT AVAILABLE)

42322-942-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE)

44610-950-010

Unavailable

COLLAR, FR. WHEEL HUB BEARING (NOT AVAILABLE)

44613-950-000

Unavailable

COLLAR, FR. WHEEL HUB BEARING (NOT AVAILABLE)

44614-950-000

Unavailable

KNUCKLE, R.

51210-950-010

Unavailable

KNUCKLE, L. (NOT AVAILABLE)

51220-950-010

Unavailable

KINGPIN

51222-950-000

Unavailable

BOLT, KINGPIN LOCK

51223-950-000

Unavailable

JOINT, BALL (RIGHT HAND THREAD)

53150-HB3-003

$68.76

JOINT, BALL (RIGHT HAND THREAD) This part replaces 53150-950-003.

53150-HB3-003

$68.76

JOINT, BALL (LEFT HAND THREAD)

53158-HB3-003

$64.05

JOINT, BALL (LEFT HAND THREAD) This part replaces 53158-950-003.

53158-HB3-003

$64.05

TIE ROD (NOT AVAILABLE)

53521-950-000

Unavailable

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-936-000

$2.94

NUT, HEX. (10MM) (LEFT HAND THREAD)

90311-VM5-010

$2.92

BOLT, STUD (8X38)

90927-950-300

Unavailable

OIL SEAL (25X42X7) (ARAI)

91205-950-003

$9.80

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (10MM)

94002-10000-0S

$4.06

NUT, CASTLE (14MM)

94011-14000-0S

$1.80

NUT, CASTLE (10MM)

94012-10000-0S

Unavailable

WASHER, SPRING (8MM)

94111-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

BEARING, RADIAL BALL (6004)

96100-60040-10

Unavailable
