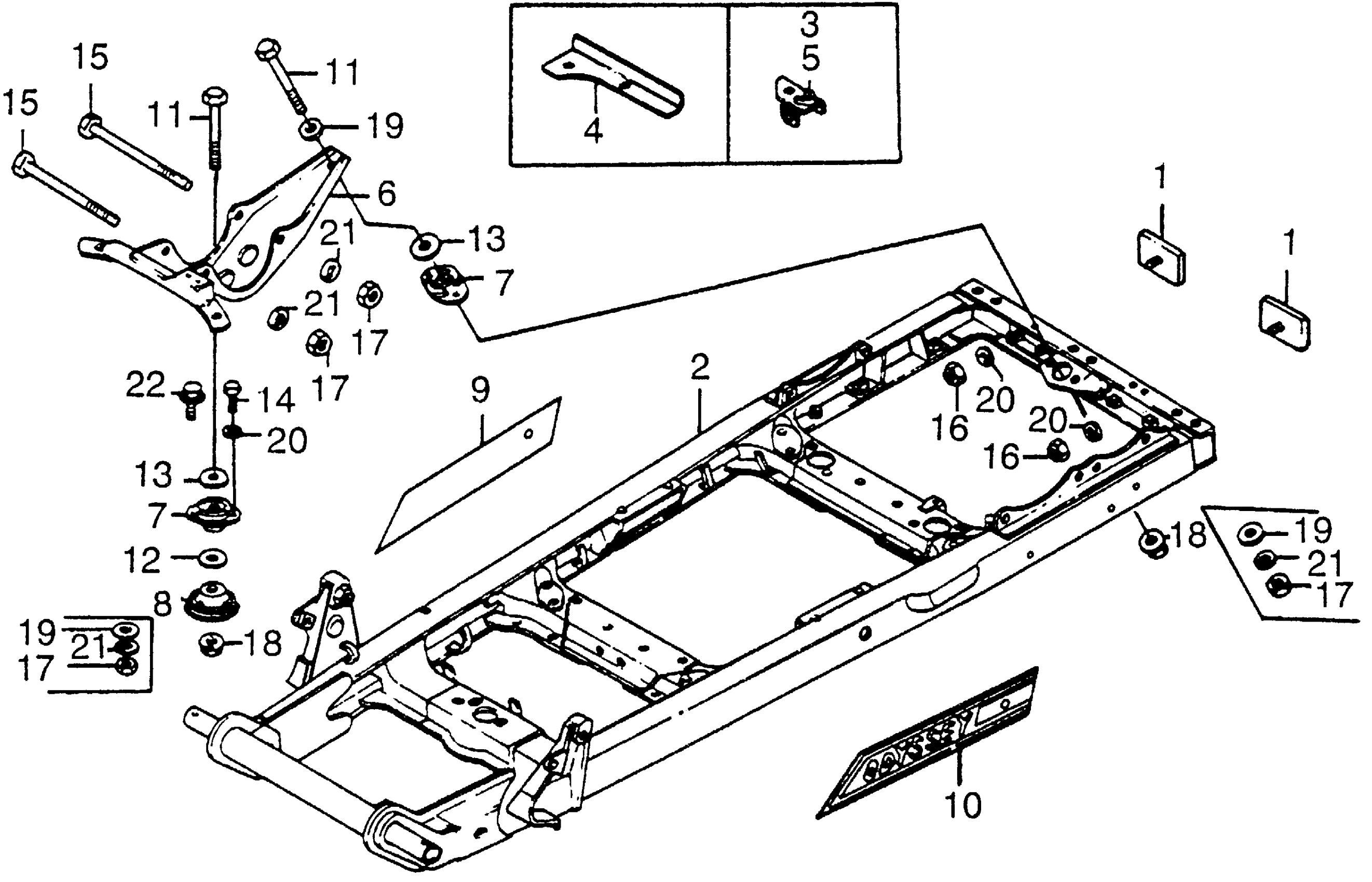

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 ENGINE MOUNT + FRAME Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX

33741-GC8-601

Unavailable

1

REFLECTOR, RR. REFLEX This part replaces 33800-950-003.

33741-GC8-601

Unavailable

2

FRAME *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

50100-950-030SG

Unavailable

6

BED, ENGINE *NH105* (MAT BLACK) This part replaces 50210-950-010SG.

50210-950-010ZA

Unavailable

6

BED, ENGINE *NH105* (MAT BLACK)

50210-950-010ZA

Unavailable

7

RUBBER, ENGINE MOUNTING

50220-950-003

Unavailable

8

STOPPER, BOUND

50221-950-000

Unavailable

9

STRIPE, R. SIDE (NOT AVAILABLE)

87103-950-040

Unavailable

10

STRIPE, L. SIDE (NOT AVAILABLE)

87104-950-040

Unavailable

11

BOLT, RADIUS ROD

90109-634-000

Unavailable

12

WASHER (10MM)

90452-283-000

Unavailable

13

WASHER, SPECIAL (10MM)

90531-703-000

Unavailable

14

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

14

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (10X120) This part replaces 92000-10120-0A.

92101-10120-0A

$3.17

15

BOLT, HEX. (10X120)

92101-10120-0A

$3.17

16

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (10MM)

94001-10000-0S

$1.49

19

WASHER, PLAIN (10MM)

94101-10000

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49
