- FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315
CYLINDER + CYLINDER HEAD

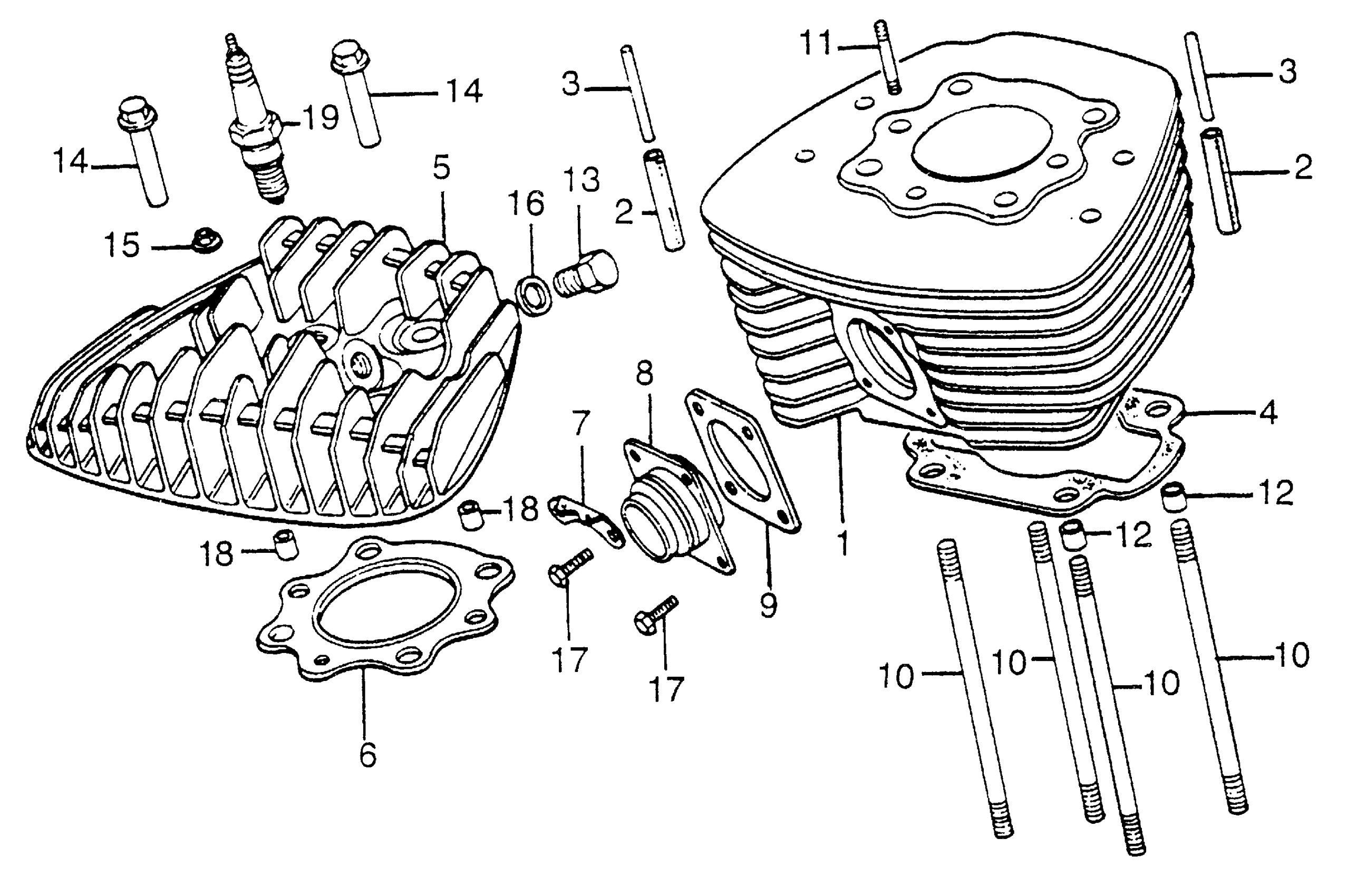

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 CYLINDER + CYLINDER HEAD Diagram
#
Description
Price
1
CYLINDER (NOT AVAILABLE)
12100-950-010
Unavailable
2
RUBBER, INSERT (NOT AVAILABLE)
12112-358-000
Unavailable
3
BAR, INSERT (NOT AVAILABLE)
12122-358-000
Unavailable
5
CYLINDER HEAD (NOT AVAILABLE)
12200-950-000
Unavailable
6
GASKET, CYLINDER HEAD This part replaces 12251-358-000.
12251-358-306
Unavailable
6
GASKET, CYLINDER HEAD
12251-358-306
Unavailable
6
GASKET HEAD | (Optional). This part replaces 12253-358-000.
12253-358-405
Unavailable
7
STAY, EX. PIPE SPRING
18331-950-000
Unavailable
8
JOINT, EX. PIPE (NOT AVAILABLE)
18351-358-010
Unavailable
9
GASKET, EX. PIPE JOINT
18359-357-000
Unavailable
10
BOLT, CYLINDER STUD (8X126.5) (NOT AVAILABLE)
90031-357-010
Unavailable
11
BOLT, STUD (6X55)
90034-357-010
Unavailable
13
BOLT, SEALING (14MM)
90061-358-000
Unavailable
14
NUT, SPECIAL (8MM)
90230-357-010
Unavailable
15
NUT, FLANGE (6MM) (NOT AVAILABLE)
90233-357-000
Unavailable
16
WASHER, SEALING (14MM) (NOT AVAILABLE)
90445-358-000
Unavailable
19
SPARK PLUG (W22ESR-U) (DENSO) This part replaces 98079-57826.
98079-57827
Unavailable
19
SPARK PLUG (W22ESR-U) (DENSO)
98079-57827
Unavailable
19
SPARK PLUG (W22ESR-U) (DENSO) This part replaces 98079-57857.
98079-57827
Unavailable
