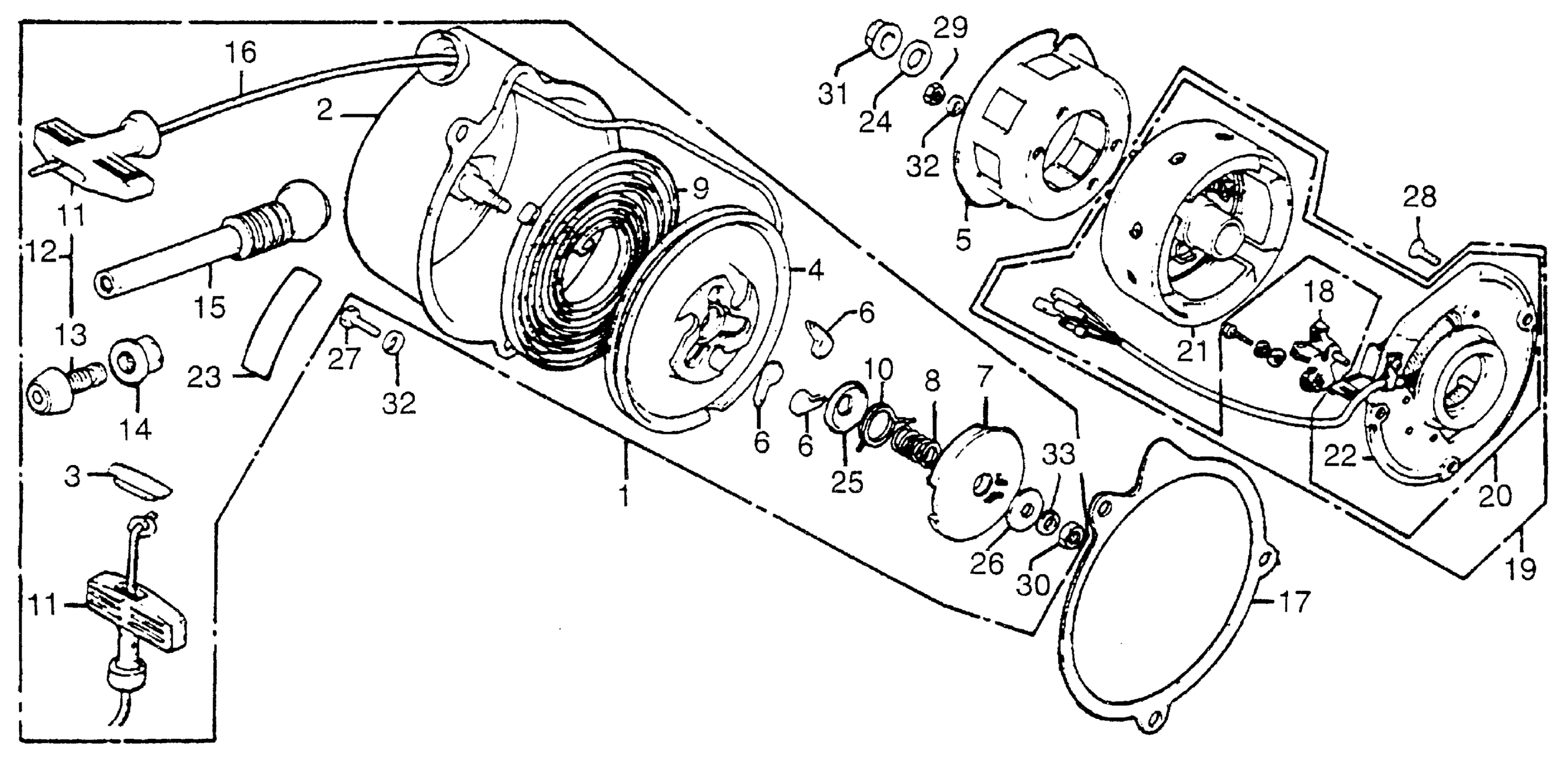

Honda FL250A (80) ODYSSEY, JPN, VIN# TB04-2000001 TO TB04-2006315 ALTERNATOR + RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY., RECOIL *NH35M* (CLOUD SILVER METALLIC) This part replaces 28400-950-023ZA.

28400-950-033ZA

Unavailable

1

STARTER ASSY., RECOIL *NH35M* (CLOUD SILVER METALLIC)

28400-950-033ZA

Unavailable

2

CASE, RECOIL STARTER *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

28410-950-003ZA

Unavailable

4

PULLEY, RECOIL STARTER (NOT AVAILABLE)

28420-873-003

Unavailable

5

PULLEY, STARTER

28430-950-000

Unavailable

6

RATCHET, STARTER

28441-822-810

$4.94

7

PLATE, FRICTION This part replaces 28445-809-810.

28445-822-650

$11.30

7

PLATE, FRICTION

28445-822-650

$11.30

8

SPRING, FRICTION

28446-809-810

Unavailable

9

SPRING, STARTER RETURN

28451-809-810

Unavailable

10

SPRING SET

28455-822-810

Unavailable

11

KNOB, STARTER

28461-950-003

Unavailable

13

GUIDE, RECOIL KNOB

28463-950-010

Unavailable

14

NUT (14MM)

28464-950-003

Unavailable

15

TUBE, ROPE GUIDE

28465-950-000

Unavailable

16

ROPE, RECOIL STARTER

28471-950-003

$15.23

17

GASKET, STARTER CASE This part replaces 28481-950-000.

28481-950-306

Unavailable

17

GASKET, STARTER CASE

28481-950-306

Unavailable

18

POINTS (DENSO) This part replaces 30202-041-305.

30202-041-315

Unavailable

18

POINTS (DENSO)

30202-041-315

Unavailable

18

POINTS (DENSO) This part replaces 30202-171-004.

30202-041-315

Unavailable

19

ALTERNATOR (NOT AVAILABLE)

31100-950-013

Unavailable

21

ROTOR (NOT AVAILABLE)

31110-950-013

Unavailable

22

STATOR (NOT AVAILABLE)

31120-950-013

Unavailable

23

LABEL, COMPLIANCE

87513-873-710

Unavailable

24

WASHER, PLAIN (12MM)

90437-611-000

$4.22

25

WASHER A

90481-809-810

Unavailable

26

WASHER B (NOT AVAILABLE)

90482-950-003

Unavailable

27

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

27

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

28

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

28

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

NUT, FLANGE (12MM)

94050-12000

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49
