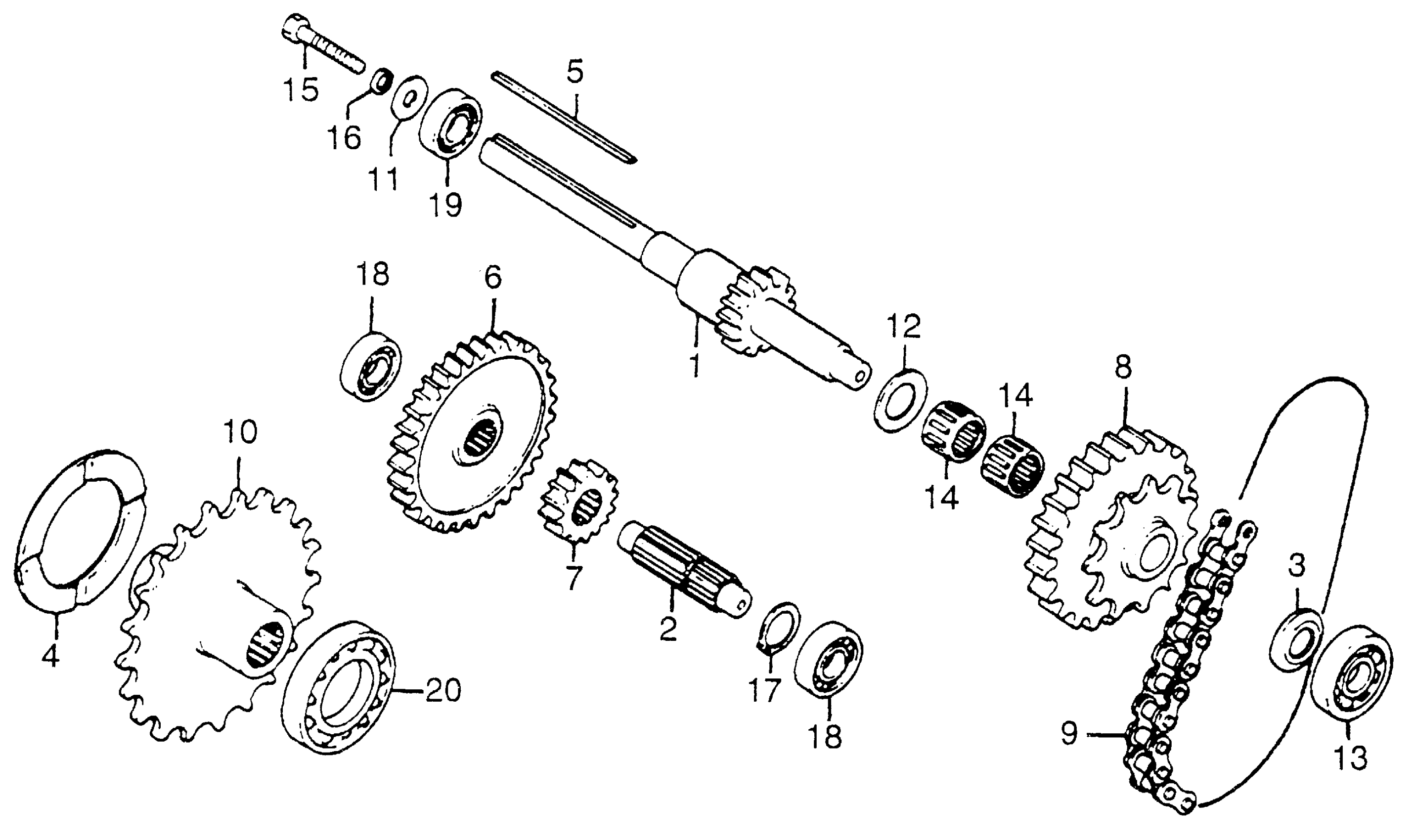

Honda FL250A (79) ODYSSEY, JPN, VIN# FL250-2000001 TO FL250-2012620 REDUCTION PRIMARY SHAFT + COUNTERSHAFT Diagram

SHAFT, PRIMARY (NOT AVAILABLE)

40511-950-000

Unavailable

COUNTERSHAFT (NOT AVAILABLE)

40513-950-000

Unavailable

WASHER, THRUST (NOT AVAILABLE)

40525-950-000

$11.61

WASHER B, THRUST (NOT AVAILABLE)

40526-950-000

$23.43

KEY, SPECIAL (NOT AVAILABLE)

40527-950-000

Unavailable

GEAR B, REDUCTION

41151-950-000

$79.79

GEAR C, REDUCTION

41201-950-000

Unavailable

GEAR D, REDUCTION

41251-950-000

Unavailable

CHAIN, DRIVE (RK50KB-42LE) (TAKASAGO) (NOT AVAILABLE) This part replaces 41254-950-003.

41254-950-013

Unavailable

CHAIN, DRIVE (RK50KB-42LE) (TAKASAGO) (NOT AVAILABLE)

41254-950-013

Unavailable

SPROCKET, DRIVEN (NOT AVAILABLE)

41301-950-000

Unavailable

WASHER, SPECIAL (28X8.5X4.0)

90435-611-000

$8.69

WASHER, THRUST (25.2X38X2.0) (NOT AVAILABLE)

90453-580-000

Unavailable

BEARING, RADIAL BALL (20X52X15) (TOYO) This part replaces 91002-371-004.

91003-MG8-003

$40.08

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

BEARING, NEEDLE (25X30X20) (TOYO) | Use up to Engine SN 1011041 This part replaces 91051-950-003.

91106-ME5-008

$30.34

BEARING, NEEDLE (25X30X20) (TOYO) | Use up to Engine SN 1000011 This part replaces 91051-950-004.

91106-ME5-008

$30.34

BEARING, NEEDLE (25X30X20) (TOYO) | Use up to Engine SN 1011041

91106-ME5-008

$30.34

BEARING, NEEDLE (25X30X20) (TOYO) | Use up to Engine SN 1011041 This part replaces 91108-634-961.

91106-ME5-008

$30.34

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

WASHER, SPRING (8MM)

94111-08000

$1.49

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49

BEARING, RADIAL BALL (6004)

96100-60040-10

Unavailable

BEARING, RADIAL BALL (6005)

96100-60050-10

$9.49

BEARING, RADIAL BALL (6008)

96100-60080-10

$18.67
