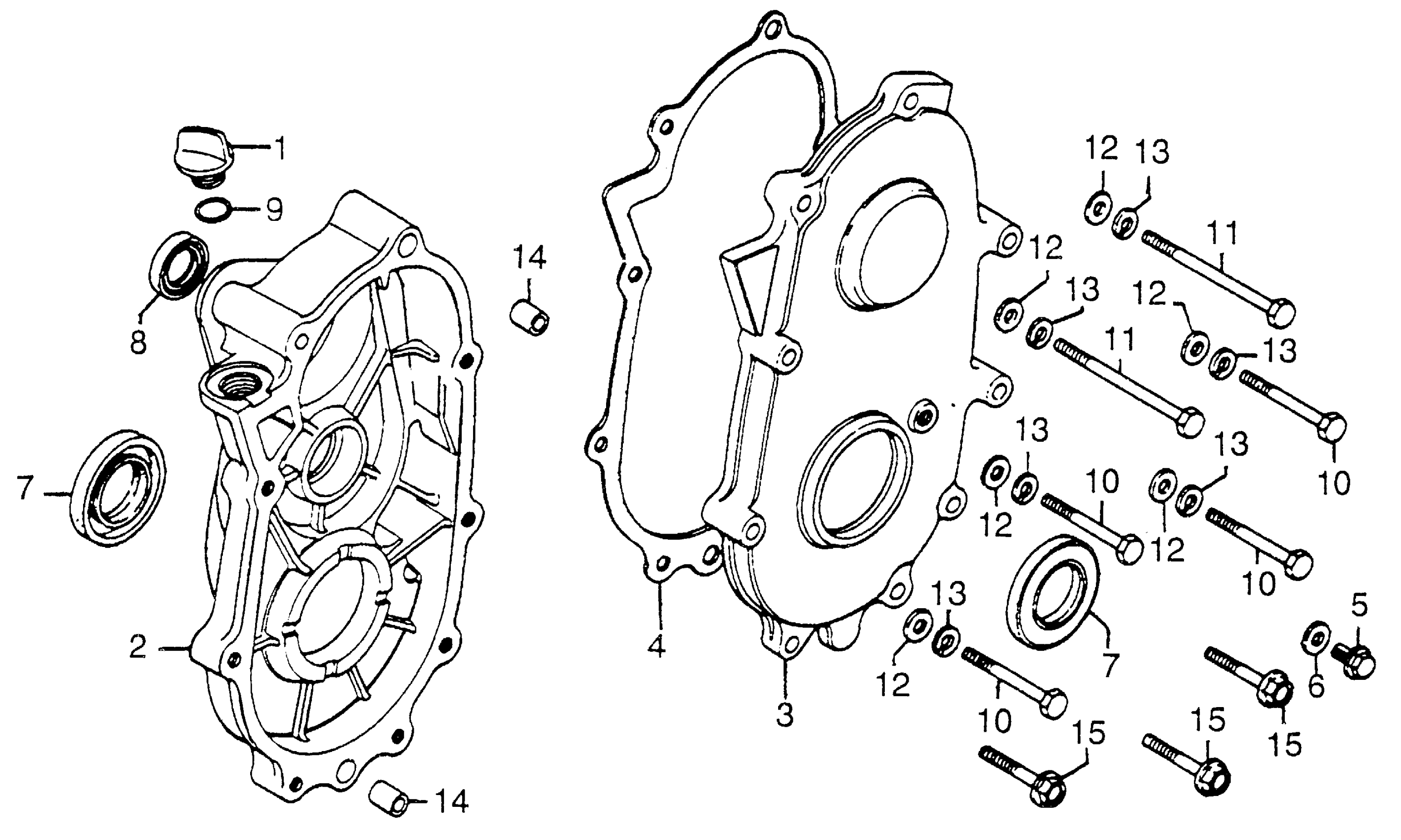

Honda FL250A (79) ODYSSEY, JPN, VIN# FL250-2000001 TO FL250-2012620 REDUCTION CASE + REDUCTION COVER Diagram

#

Description
Price

1

CAP, OIL (NOT AVAILABLE)

25610-708-000

Unavailable

2

CASE, REDUCTION

40521-950-000

Unavailable

3

COVER, REDUCTION (NOT AVAILABLE)

40522-950-000

Unavailable

4

GASKET, REDUTION CASE This part replaces 40523-950-000.

40523-950-306

Unavailable

4

GASKET, REDUTION CASE

40523-950-306

Unavailable

5

BOLT, OIL CHECK (NOT AVAILABLE)

90002-706-000

Unavailable

6

WASHER (8MM)

90474-333-000

$3.08

7

OIL SEAL (40X62X9) (ARAI) This part replaces 91206-950-003.

91206-950-013

$15.81

7

OIL SEAL (40X62X9) (ARAI)

91206-950-013

$15.81

8

OIL SEAL (25X38X7) | Use from Engine SN 1000012 This part replaces 91252-720-003.

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7)

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7) | Use from Engine SN 1000012

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7) This part replaces 91252-702-001.

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7) | Use from Engine SN 1000012 This part replaces 91252-702-001.

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7) This part replaces 91252-888-003.

91201-ZG9-U71

$3.42

8

OIL SEAL (25X38X7) | Use from Engine SN 1000012 This part replaces 91252-888-003.

91201-ZG9-U71

$3.42

9

O-RING (16MM)

91303-800-000

$2.03

9

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.03

10

BOLT, HEX. (8X50) This part replaces 92000-08050-0A.

92101-08050-0A

$1.88

10

BOLT, HEX. (8X50)

92101-08050-0A

$1.88

11

BOLT, HEX. (8X80) This part replaces 92000-08080-0A.

92180-08080-0A

$2.39

11

BOLT, HEX. (8X80)

92180-08080-0A

$2.39

12

WASHER, PLAIN (8MM)

94101-08000

$0.75

13

WASHER, SPRING (8MM)

94111-08000

$0.90

14

PIN A, DOWEL (10X14)

94301-10140

$2.25

15

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.09

15

BOLT, FLANGE (8X35)

95701-08035-00

$2.09
