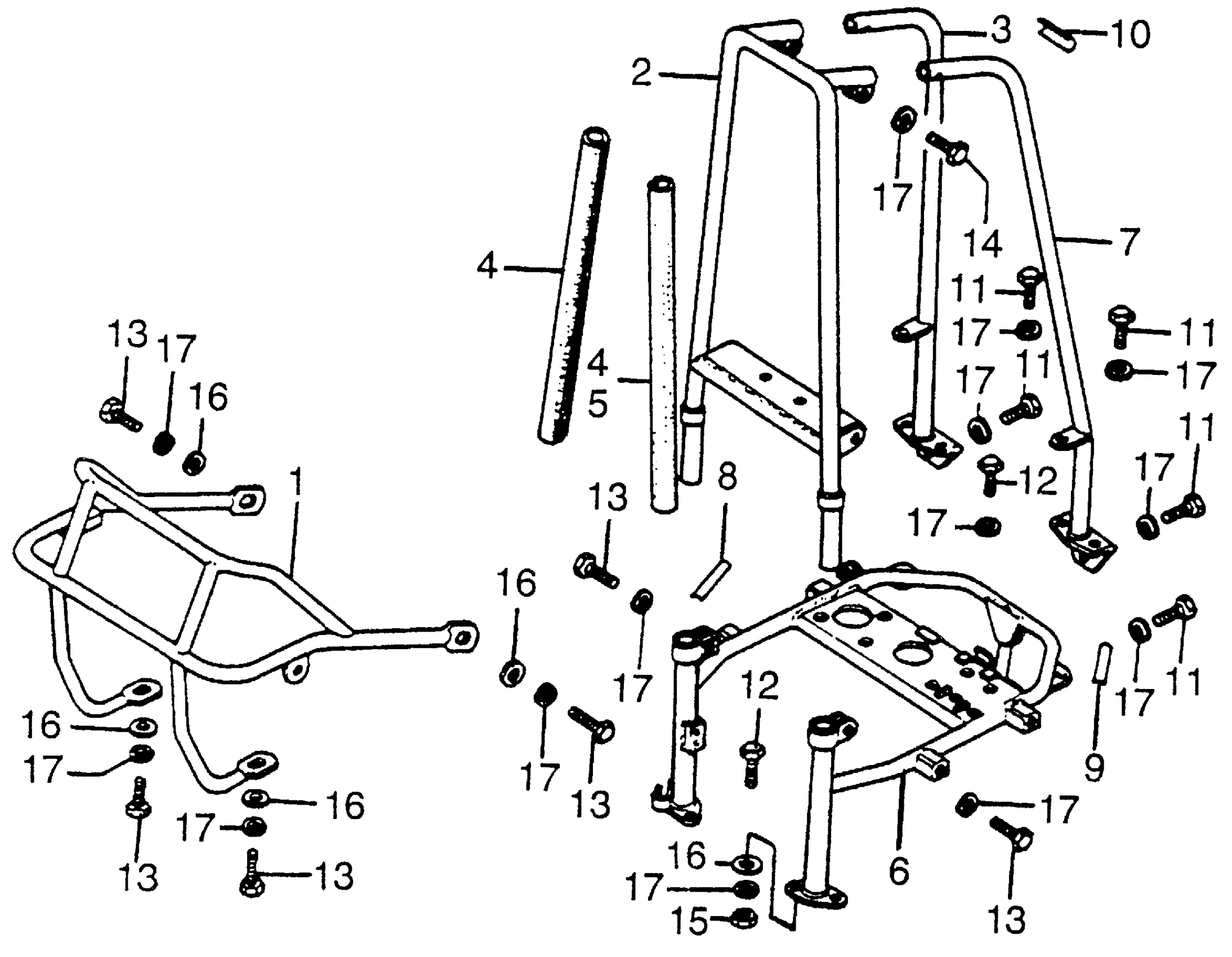

Honda FL250A (79) ODYSSEY, JPN, VIN# FL250-2000001 TO FL250-2012620 GRAB RAIL + FRONT BUMPER + ROLL BAR 77-80 Diagram

#

Description
Price

1

BUMPER, FR. This part replaces 62510-950-010SG.

62510-950-640SG

Unavailable

2

BAR, ROLL *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

71910-950-010SG

Unavailable

3

BAR, R. RR. ROLL *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

71912-950-010SG

Unavailable

4

PAD, ROLL BAR (NOT AVAILABLE) PAD, R. ROLL BAR

71915-950-010

Unavailable

6

PIPE, GUARD *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 71920-950-010SG.

71920-950-020SG

Unavailable

7

BAR, L. RR. ROLL *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

71932-950-000SG

Unavailable

8

LABEL, STARTER WARNING (NOT AVAILABLE)

87102-950-000

Unavailable

9

LABEL, HOT WARNING

87105-950-000

Unavailable

10

LABEL, ROLL BAR (NOT AVAILABLE) LABEL, OPERATOR WARNING This part replaces 87106-950-010.

87106-950-020

Unavailable

10

LABEL, ROLL BAR (NOT AVAILABLE)

87106-950-020

Unavailable

11

BOLT, HEX. (8X16) | Use up to Frame SN 2000000 This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

11

BOLT, HEX. (8X16) | Use from Frame SN 2000001 This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

11

BOLT, HEX. (8X16) | Use up to Frame SN 2000000

92101-08016-0A

$1.49

11

BOLT, HEX. (8X16) | Use from Frame SN 2000001

92101-08016-0A

$1.49

12

BOLT, HEX. (8X20) | Use up to Frame SN 2000000 This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

12

BOLT, HEX. (8X22) | Use from Frame SN 2000001 This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

12

BOLT, HEX. (8X20) | Use up to Frame SN 2000000

92101-08020-0A

$1.62

12

BOLT, HEX. (8X22) | Use from Frame SN 2000001

92101-08022-0A

Unavailable

13

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

13

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

14

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

14

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49
