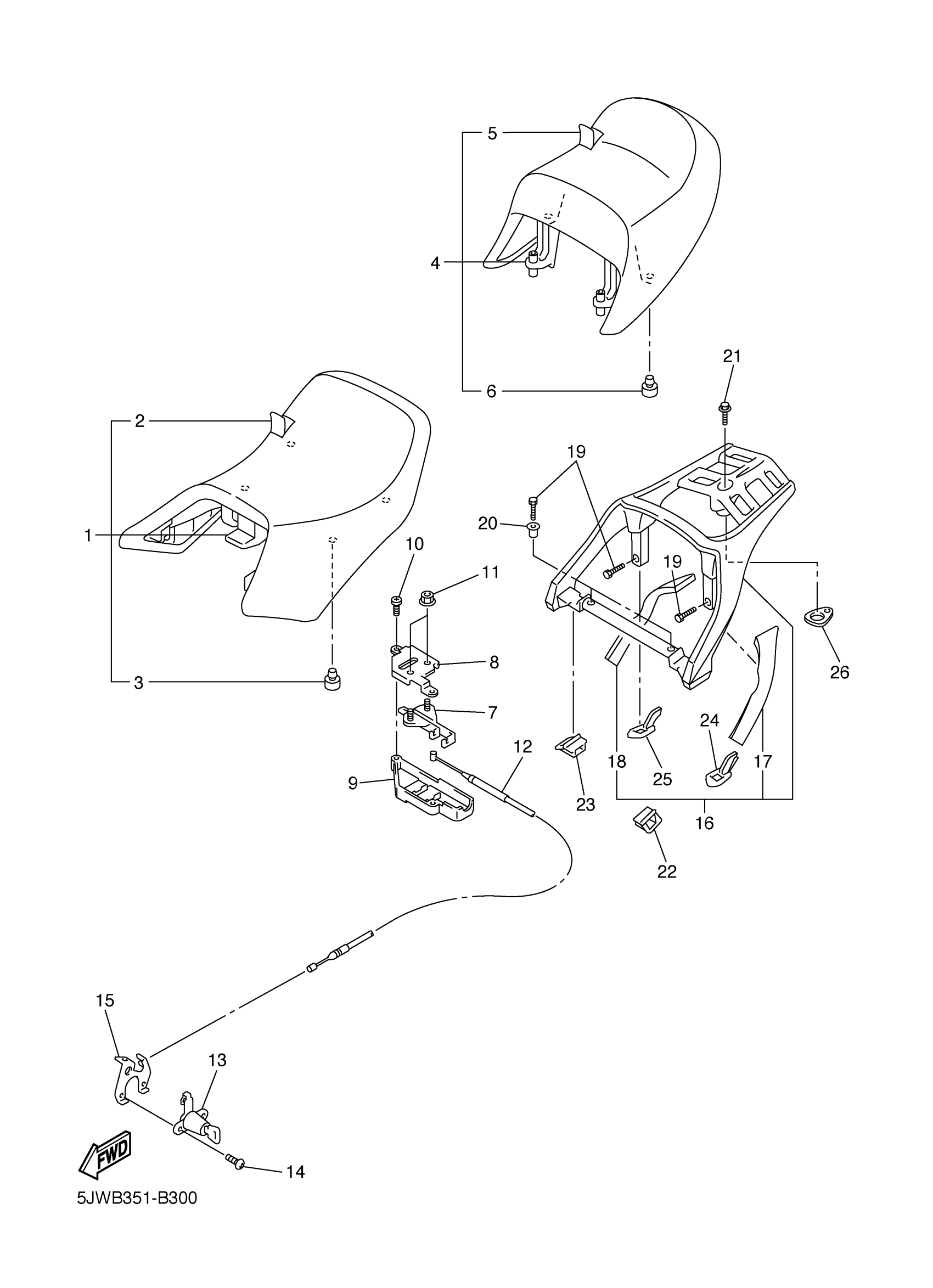

Yamaha FJR13TC (FJR1300 CA) 5JWL 2005 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5JW-24710-00-00

$308.99

2

. SEAT COVER COMP

5JW-2470F-00-00

Unavailable

3

PAD, SEAT

5JW-24741-00-00

$5.49

4

TANDEM SEAT ASSY

5JW-24750-01-00

Unavailable

5

. SEAT COVER COMP

5JW-2470F-10-00

Unavailable

6

PAD, SEAT

5JW-24741-00-00

$5.49

7

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

8

PLATE

5VS-24792-00-00

Unavailable

9

COVER,2

5JJ-2475X-01-00

$6.99

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

NUT, FLANGE(4MV)

95707-06500-00

$1.23

12

CABLE, SEAT LOCK

5JW-2478E-00-00

Unavailable

13

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

14

SCREW(4HM)

90149-06308-00

$8.49

15

STAY, LOCK

5JW-2117K-00-00

Unavailable

16

HANDLE, SEAT (DARK PURPLISH BLUE METALLIC L)

5JW-24773-00-P4

Unavailable

17

.. COVER, 2

5JW-2475X-00-00

Unavailable

18

COVER,2

5JW-2475X-10-00

Unavailable

19

BOLT(47X)

90109-082A1-00

Unavailable

20

COLLAR

90387-09012-00

Unavailable

21

BOLT, WASHER BASED(36Y)

90105-08310-00

Unavailable

22

DAMPER, SEAT

5JW-24723-00-00

Unavailable

23

DAMPER, SEAT

5JW-24724-00-00

Unavailable

24

DAMPER, SEAT

5JW-24737-00-00

Unavailable

25

DAMPER, SEAT

5JW-24737-10-00

Unavailable

26

DAMPER, SEAT

5JW-24747-00-00

Unavailable
