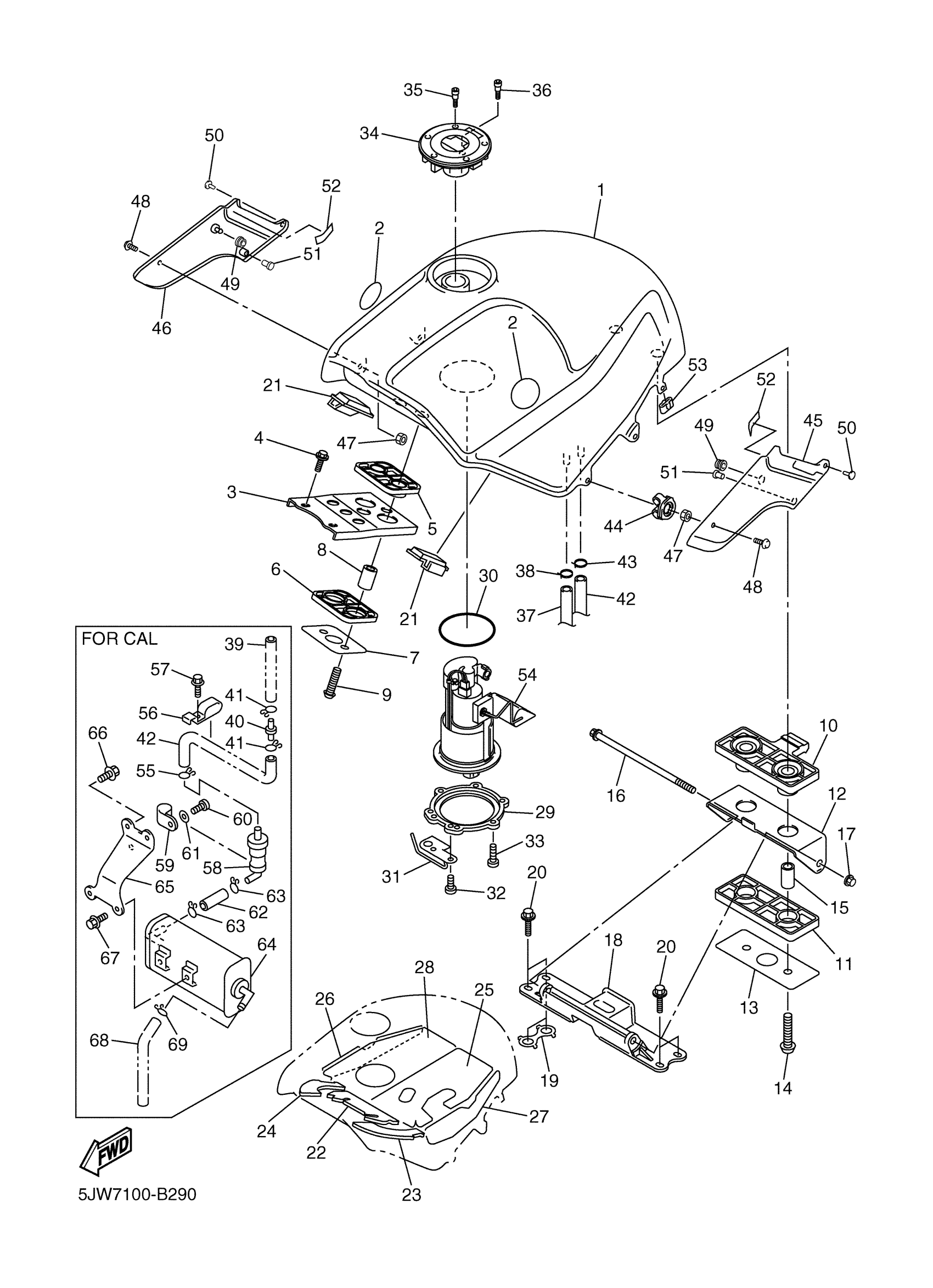

Yamaha FJR13TC (FJR1300 CA) 5JWL 2005 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DARK PURPLISH BLUE METALLIC L)
5JW-YK241-50-P1
Unavailable
2
EMBLEM
5JW-2413B-00-00
Unavailable
6
DAMPER, LOCATING 2
5JW-24182-00-00
Unavailable
7
WASHER, SPECIAL
5JW-24187-00-00
Unavailable
9
BOLT, BUTTON HEAD
92017-08035-00
Unavailable
10
DAMPER, LOCATING 3
5JW-24183-00-00
Unavailable
13
WASHER, SPECIAL
5JW-24186-00-00
Unavailable
14
BOLT, BUTTON HEAD
92017-08035-00
Unavailable
16
BOLT, FLANGE
95817-08160-00
Unavailable
17
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
18
BRACKT, TANK FITTING
5JW-21348-00-00
Unavailable
19
HOOK TANK FITTING
5JW-2411L-00-00
Unavailable
20
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
21
DAMPER, LOCATING 3
4SV-24183-00-00
Unavailable
22
DAMPER, PLATE 3
5JW-2414K-00-00
Unavailable
23
DAMPER, PLATE 4
5JW-2414N-00-00
Unavailable
24
DAMPER, PLATE 5
5JW-2414P-00-00
Unavailable
25
DAMPER, PLATE 2
5JW-2414J-00-00
Unavailable
26
DAMPER, PLATE 4
5JW-2414N-10-00
Unavailable
27
DAMPER, PLATE 5
5JW-2414P-10-00
Unavailable
28
DAMPER, PLATE 6
5JW-2414R-00-00
Unavailable
29
BRACKET, FUEL PUMP
5PW-24491-00-00
Unavailable
30
O-RING
19B-24486-01-00
Unavailable
31
PROTECTOR, PIPE
5JW-24327-00-00
Unavailable
32
SCREW, BINDING
98907-05008-00
Unavailable
33
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
34
CAP ASSY
39P-24602-00-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
36
BOLT, SOCKET
91317-05010-00
Unavailable
37
HOSE
90445-11018-00
Unavailable
38
CLIP
90467-100A1-00
Unavailable
39
HOSE
90445-11029-00
Unavailable
40
JOINT
4XY-14568-00-00
Unavailable
41
CLIP
90467-100A1-00
Unavailable
42
PIPE 3
5JW-24313-00-00
Unavailable
42
HOSE
90445-11018-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
HOLDER
5JW-2419A-01-00
Unavailable
45
COVER, SIDE 1
5JW-24129-00-00
Unavailable
46
COVER, SIDE 2
5JW-24139-00-00
Unavailable
47
NUT(1KT)
90179-05523-00
Unavailable
48
SCREW(3YF)
90149-05299-00
Unavailable
49
GROMMET(4FU)
90480-13567-00
Unavailable
50
RIVET(4PH)
90269-07077-00
Unavailable
51
PLUG
90338-08009-00
Unavailable
52
DAMPER
5DM-28371-00-00
Unavailable
53
DAMPER, SIDE COVER
15A-21717-00-00
Unavailable
54
FUEL PUMP COMP.
5JW-13907-15-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
CLAMP 1
5JW-24135-00-00
Unavailable
57
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
58
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
59
CLAMP
90464-15014-00
Unavailable
60
SCREW, PAN
98517-05012-00
Unavailable
61
WASHER(1RW)
92907-05600-00
Unavailable
62
HOSE (L120)
90445-113E8-00
Unavailable
63
CLIP
90467-100A1-00
Unavailable
64
CANISTER ASSY
5JW-24170-00-00
Unavailable
65
BRACKET, CANISTOR
5JW-2419F-00-00
Unavailable
66
BOLT, FLANGE
95817-06016-00
Unavailable
67
BOLT, FLANGE
95817-06010-00
Unavailable
68
HOSE
90445-13005-00
Unavailable
69
CLIP (4X4)
90467-12052-00
Unavailable
