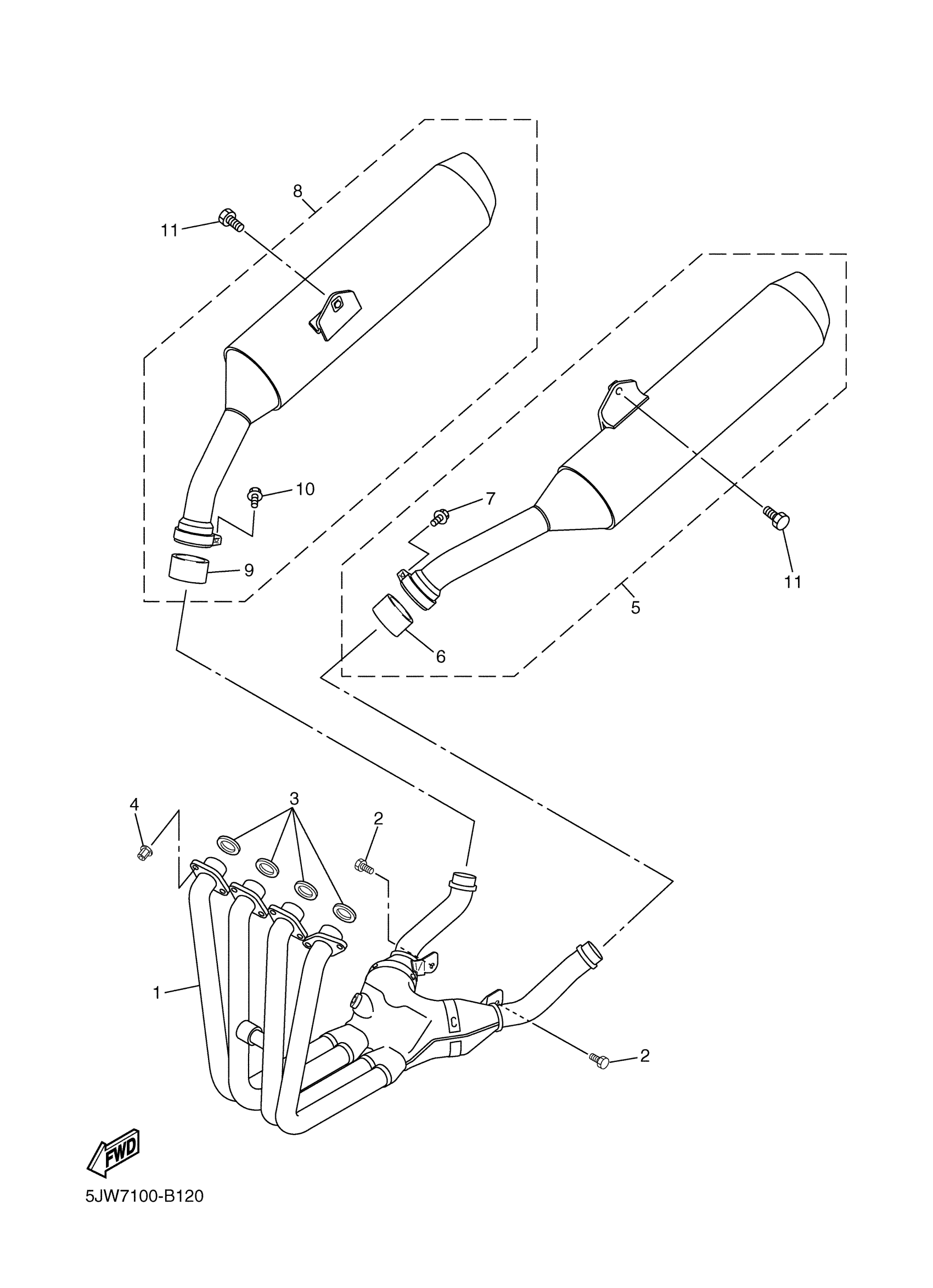

Yamaha FJR13TC (FJR1300 CA) 5JWL 2005 EXHAUST Diagram

#

Description

Price

1

EXHAUST PIPE COMP.

5JW-14602-11-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

$6.08

3

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

4

NUT(4KM)

90179-08673-00

Unavailable

5

MUFFLER ASSY 1

5JW-14710-11-00

Unavailable

6

GASKET, MUFFLER

3XW-14714-00-00

$30.08

7

BOLT, FLANGE(4PU)

95814-08025-00

$6.77

8

MUFFLER ASSY 2

5JW-14720-11-00

Unavailable

9

GASKET, MUFFLER

3XW-14714-00-00

$30.08

10

BOLT, FLANGE(4PU)

95814-08025-00

$6.77

11

BOLT, FLANGE

95814-10040-00

$3.43
