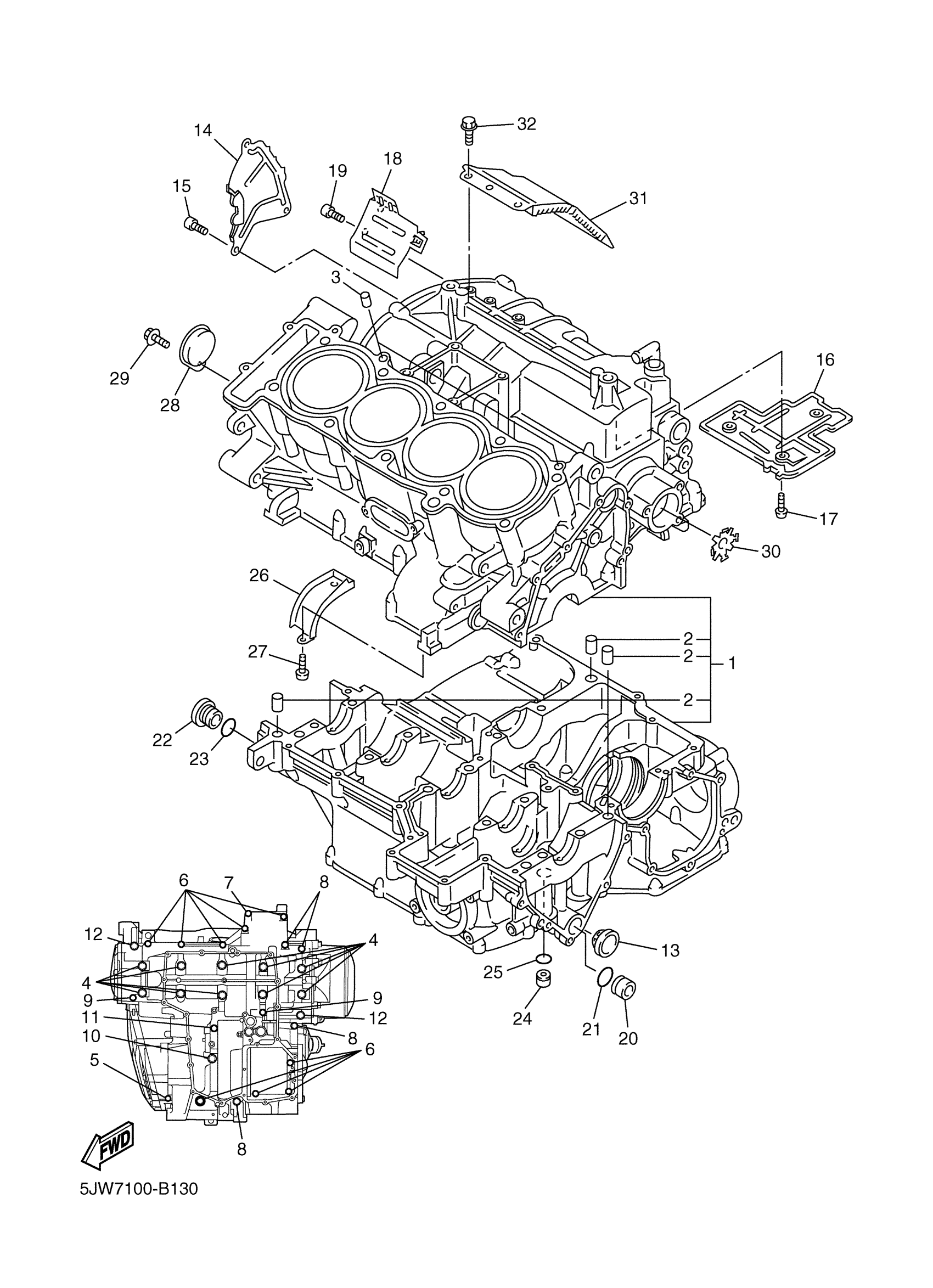

Yamaha FJR13TC (FJR1300 CA) 5JWL 2005 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
5JW-15100-01-00
Unavailable
1
CRANKCASE ASSY
5JW-15100-10-00
Unavailable
8
BOLT, FLANGE
95817-06065-00
Unavailable
14
PLATE, BREATHER
5JW-11165-01-00
Unavailable
15
BOLT,SOCKET
91317-06012-00
Unavailable
16
PLATE, BREATHER 2
5JW-11145-00-00
Unavailable
17
SCREW
90149-06030-00
Unavailable
18
COVER, OIL PUMP
5JW-15412-00-00
Unavailable
19
BOLT,SOCKET
91317-06012-00
Unavailable
20
PLUG
90338-20263-00
Unavailable
21
O-RING (1J7)
93210-16314-00
Unavailable
22
PLUG
4H7-15189-00-00
Unavailable
23
O-RING
93210-20802-00
Unavailable
24
PLUG
90338-16262-00
Unavailable
25
O-RING(3LD)
93210-12790-00
Unavailable
26
PLATE
5JW-15191-00-00
Unavailable
27
SCREW
90149-06030-00
Unavailable
28
PLUG
5JW-15189-00-00
Unavailable
29
BOLT, FLANGE
95817-06014-00
Unavailable
30
SHIM, KICK SHAFT
5JW-15645-00-00
Unavailable
31
PLATE
5JW-15113-00-00
Unavailable
32
BOLT, FLANGE
95817-06014-00
Unavailable
