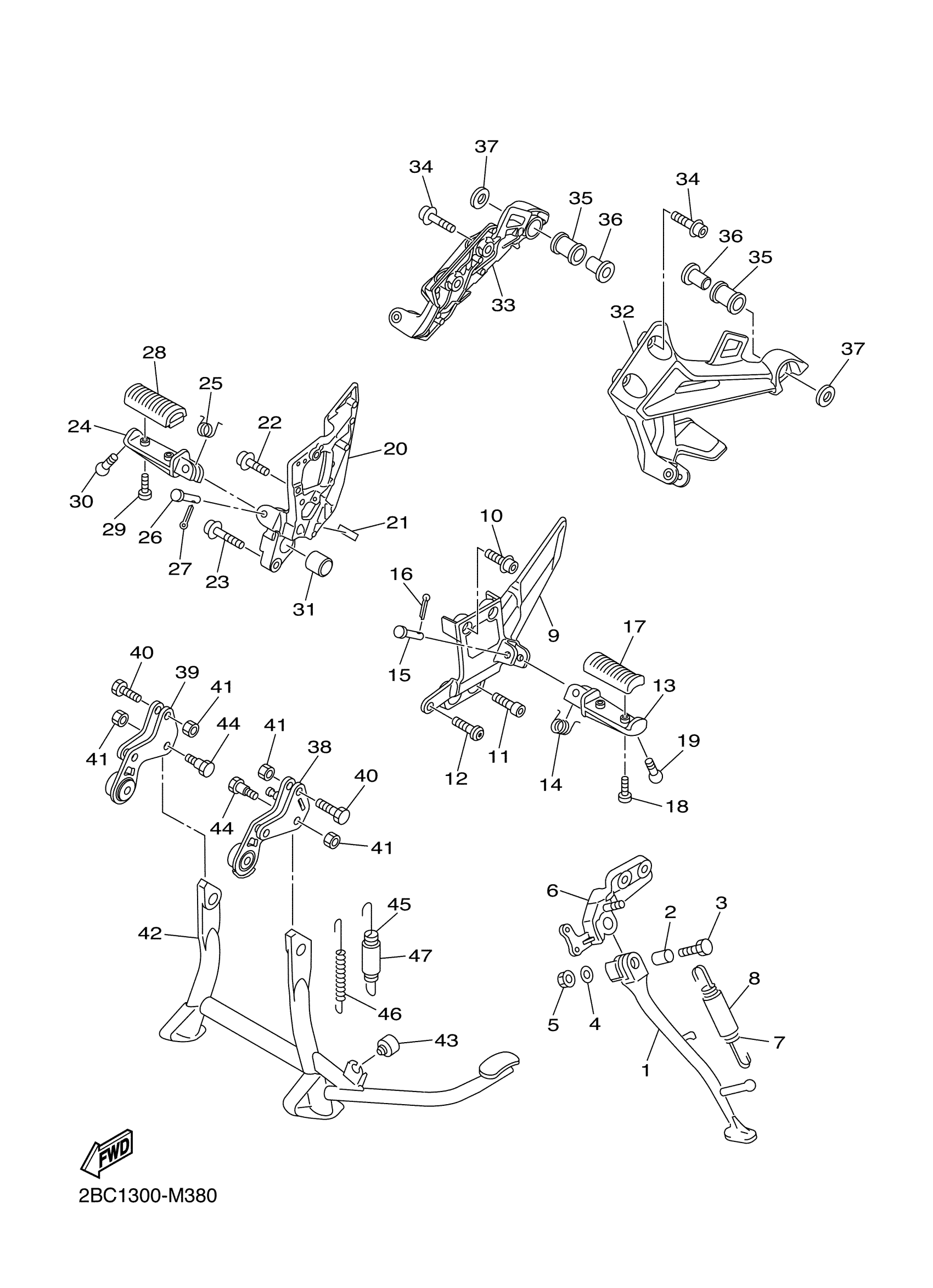

Yamaha FJR13PPW (FJR1300 POLICE) B9R6 2023 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5JW-27311-00-00

$190.99

2

COLLAR

90387-10007-00

$12.49

3

BOLT

90101-10025-00

$8.49

4

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

5

NUT, U FLANGE

95602-10100-00

$7.49

6

BRACKET, SIDE STAND

3P6-27321-00-00

$232.99

7

SPRING, TENSION

90506-20008-00

Unavailable

8

HOSE (L60)

90445-197J2-00

$4.61

9

BRACKET 2

1MC-27442-00-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-08097-00

$8.49

11

BOLT

90109-10058-00

$9.49

12

SCREW

90149-10001-00

Unavailable

13

FOOTREST

4BH-27451-01-00

$58.99

14

SPRING, TORSION

90508-183B9-00

$4.29

15

PIN, CLEVIS (565)

91701-08042-00

$3.61

16

PIN, COTTER

91490-25020-00

Unavailable

17

COVER, FOOTREST

4BP-27413-00-00

Unavailable

18

SCREW, PAN HEAD

98507-05014-00

Unavailable

19

BOLT

90109-08204-00

Unavailable

20

BRACKET 3

1MC-27443-00-00

Unavailable

21

LABEL

3TU-2178A-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-08108-00

Unavailable

24

FOOTREST

4BH-27461-01-00

Unavailable

25

SPRING, TORSION

90508-184B0-00

Unavailable

26

PIN, CLEVIS

91702-08040-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

COVER, FOOTREST

4BP-27413-00-00

Unavailable

29

SCREW, PAN HEAD

98507-05014-00

Unavailable

30

BOLT

90109-08204-00

Unavailable

31

BUSH, SOLID(3VD)

90380-20213-00

Unavailable

32

BRACKET 4

1MC-2741L-00-00

Unavailable

33

BRACKET 5

1MC-2742L-00-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

Unavailable

35

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

36

COLLAR

90387-10048-00

Unavailable

37

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

38

BRACKET, MAIN STAND

1MC-27151-00-00

Unavailable

39

BRACKET, MAIN STAND 2

1MC-27152-00-00

Unavailable

40

BOLT

90101-10004-00

Unavailable

41

NUT, S/L FLANGE

95602-10200-00

Unavailable

42

STAND, MAIN

5P5-27111-11-00

Unavailable

43

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

44

BOLT

90109-10029-00

Unavailable

45

SPRING, TENSION

90506-40001-00

Unavailable

46

SPRING, TENSION

90506-23001-00

Unavailable

47

HOSE (L0)

90445-170K9-00

Unavailable
