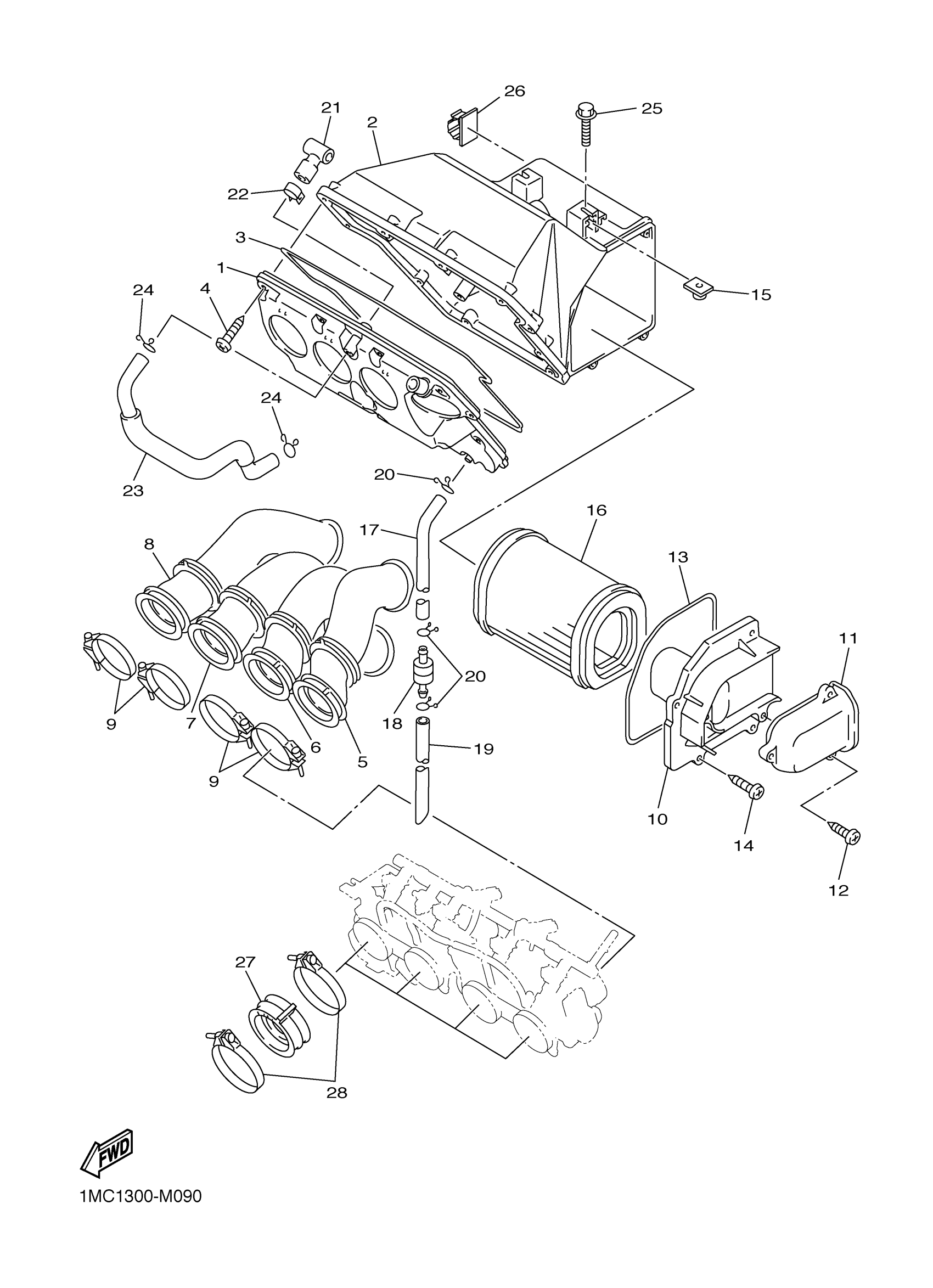

Yamaha FJR13PPW (FJR1300 POLICE) B9R6 2023 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
1MC-14411-00-00
Unavailable
2
CASE, AIR CLEANER 2
1MC-14421-00-00
Unavailable
5
JOINT, AIR CLEANER
1MC-14453-01-00
Unavailable
6
JOINT, AIR CLEANER
1MC-14463-01-00
Unavailable
7
JOINT
1MC-14454-01-00
Unavailable
8
JOINT
1MC-14568-01-00
Unavailable
10
CAP, CLEANER CASE 1
5JW-14412-10-00
Unavailable
11
DUCT
5JW-14437-00-00
Unavailable
15
PLATE
31A-14477-10-00
Unavailable
16
ELEMENT, AIR CLEANER
5JW-14451-00-00
Unavailable
17
HOSE (L198)
90445-11293-00
Unavailable
18
FILTER ASSY
4X7-2149Y-00-00
Unavailable
19
HOSE
90445-11094-00
Unavailable
20
CLIP
90467-100A1-00
Unavailable
21
PIPE
5JW-14419-00-00
Unavailable
22
CLIP
90468-08104-00
Unavailable
23
PIPE, BREATHER 1
1MC-11166-00-00
Unavailable
24
CLIP (371)
90467-14015-00
Unavailable
25
BOLT, FLANGE
95817-06020-00
Unavailable
26
CLAMP
90464-20014-00
Unavailable
27
JOINT, CARBURETOR 3
1MC-13597-00-00
Unavailable
28
HOSE CLAMP ASSY
90450-62004-00
Unavailable
