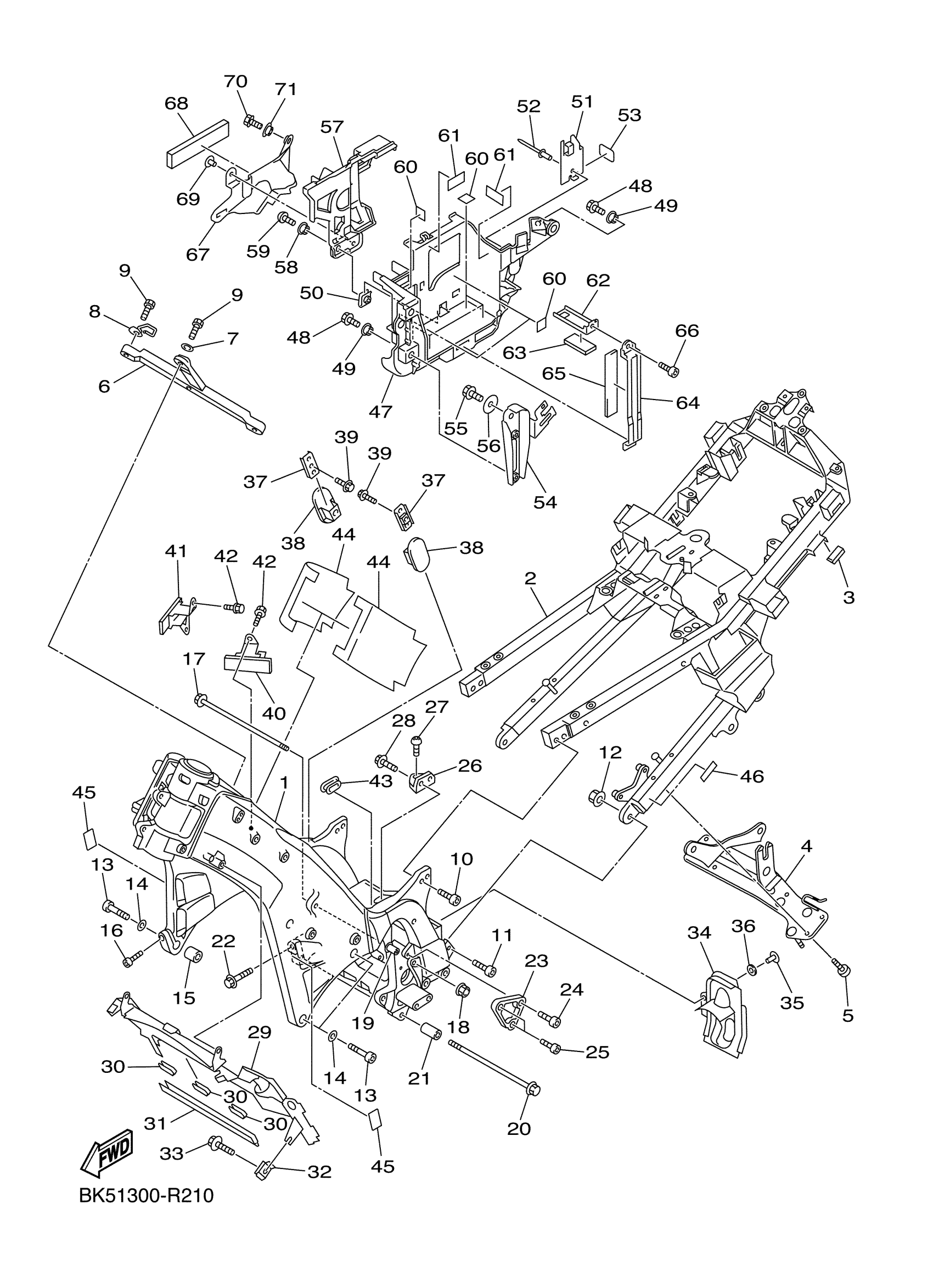

Yamaha FJR13PPW (FJR1300 POLICE) B9R6 2023 FRAME Diagram
#
1
FRAME COMP.
3P6-21110-02-00
Unavailable
2
REAR FRAME COMP.
2D2-21190-21-00
Unavailable
4
MEMBER 1
3P6-2115A-20-00
Unavailable
5
SCREW(4DN)
90149-06302-00
Unavailable
6
CROSS-TUBE
3P6-21119-00-00
Unavailable
8
GUIDE, WIRE
1MC-21339-00-00
Unavailable
16
91312-08030
91312-08030-00
Unavailable
17
BOLT, WASHER BASED(1UF)
90105-10416-00
Unavailable
18
NUT
90179-10025-00
Unavailable
19
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
20
BOLT, WASHER BASED(4KM)
90105-10781-00
Unavailable
21
SPACER(3LN)
90560-10364-00
Unavailable
22
BOLT, FLANGE
95022-08035-00
Unavailable
23
STAY, ENGINE 2
3P6-21315-00-00
Unavailable
24
BOLT
91312-10020-00
Unavailable
25
BOLT, SOCKET
91317-08016-00
Unavailable
26
STAY, ENGINE 3
5JW-21316-00-00
Unavailable
27
BOLT,HEX. SOCKET BUTTON
90111-10047-00
Unavailable
28
BOLT, FLANGE
90105-08282-00
Unavailable
29
GUIDE, AIR
3P6-2137Y-00-00
Unavailable
30
SEAL
3P6-21269-00-00
Unavailable
31
SEAL, AIR
3P6-21469-00-00
Unavailable
32
NUT, SPRING(4ES)
90183-06069-00
Unavailable
33
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
34
COVER, SHAFT 1
3P6-2147J-01-00
Unavailable
35
RIVET
90269-07008-00
Unavailable
36
WASHER, PLATE
90202-06058-00
Unavailable
37
BRACKET 3
5JW-2118U-00-00
Unavailable
38
BRACKET, INNER 1
5JW-2113N-00-00
Unavailable
39
BOLT, FLANGE
95022-06012-00
Unavailable
40
BRACKET, INNER 2
5JW-2113R-01-00
Unavailable
41
BRACKET, INNER 2
5JW-2113R-11-00
Unavailable
42
BOLT, FLANGE
95022-06012-00
Unavailable
43
CAP
5JW-2143A-00-00
Unavailable
44
DAMPER
5JW-21852-00-00
Unavailable
45
DAMPER 4
14B-28435-00-00
Unavailable
46
LABEL 1
5JW-2151A-02-00
Unavailable
47
STAY 1
1MC-28321-00-00
Unavailable
48
BOLT, FLANGE
95817-06014-00
Unavailable
49
COLLAR
90387-06107-00
Unavailable
50
NUT, SPRING
90183-050A6-00
Unavailable
51
STAY, GUIDE 1
1MC-2831E-00-00
Unavailable
52
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
53
SEAL 1
5YU-22358-00-00
Unavailable
54
PLATE 1
1MC-28396-00-00
Unavailable
55
BOLT, FLANGE
95817-06014-00
Unavailable
56
WASHER, PLATE
90201-06090-00
Unavailable
57
BRACKET 5
1MC-2836H-01-00
Unavailable
58
COLLAR
90387-05035-00
Unavailable
59
BOLT, BUTTON HEAD
92012-05012-00
Unavailable
60
DAMPER
13S-21649-00-00
Unavailable
61
DAMPER 2
3C5-21639-00-00
Unavailable
62
STAY 2
5JW-28357-01-00
Unavailable
63
DAMPER 3
5JW-28425-00-00
Unavailable
64
STAY 3
5JW-28358-00-00
Unavailable
65
DAMPER 4
5JW-28435-00-00
Unavailable
66
BOLT,SOCKET
91317-06012-00
Unavailable
67
GUIDE, AIR 3
1MC-2137K-01-00
Unavailable
68
DAMPER 4
3WF-15337-01-00
Unavailable
69
RIVET(4KM)
90269-05074-00
Unavailable
70
BOLT, FLANGE
95817-06014-00
Unavailable
71
COLLAR
90387-06066-00
Unavailable
