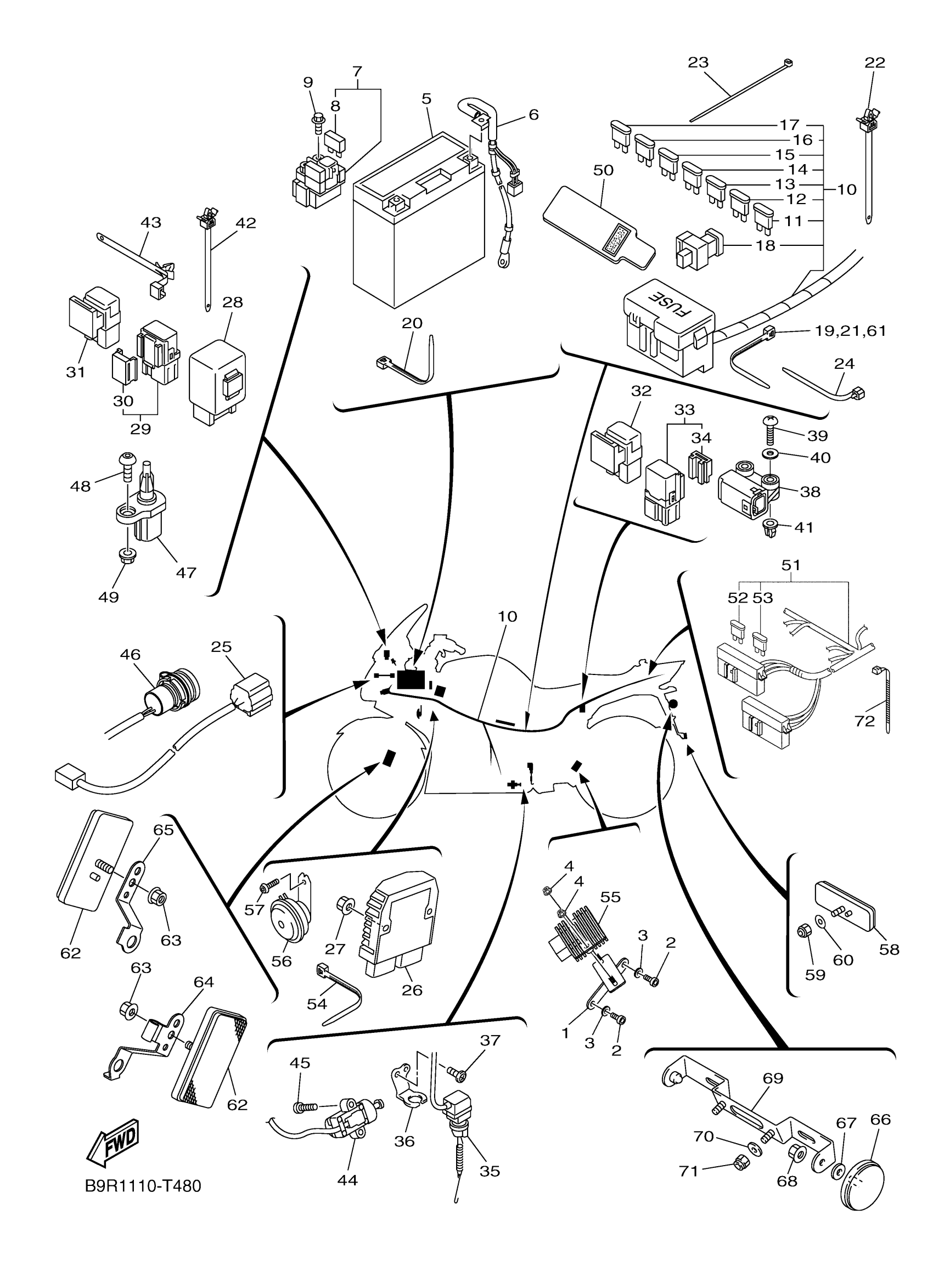

Yamaha FJR13PPW (FJR1300 POLICE) B9R6 2023 ELECTRICAL 2 Diagram

#

Description
Price

1

BRACKET, REGULATOR

5P5-21287-00-00

Unavailable

2

BOLT, SOCKET

91317-08016-00

$8.49

3

WASHER(6TA)

92907-08600-00

$3.03

4

NUT, FLANGE(4MV)

95707-06500-00

$1.23

5

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

6

WIRE, MINUS LEAD

1MC-82116-00-00

Unavailable

7

STARTER RELAY ASSY (RC19-076A)

3D7-81940-00-00

$98.99

8

FUSE (12V 30A)

1AE-82151-00-00

$7.99

9

BOLT, FLANGE

95022-06008-00

$8.49

10

WIRE HARNESS ASSY

B9R-82590-00-00

Unavailable

11

. FUSE (3A)

67F-82151-30-00

Unavailable

12

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

13

. FUSE (10A)

67F-82151-40-00

Unavailable

14

FUSE (15A)

67F-82151-50-00

Unavailable

15

FUSE

5JJ-82151-20-00

$7.99

16

FUSE

5JJ-82151-60-00

Unavailable

17

FUSE

1MC-82151-00-00

Unavailable

18

FUSE (50A)

5JW-82151-10-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable

22

CLAMP(2TV)

90464-10112-00

Unavailable

23

CLAMP

5Y9-12491-00-00

Unavailable

24

CLAMP(4FM)

90464-15195-00

Unavailable

25

WIRE, SUB LEAD

1MC-82509-00-00

Unavailable

26

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

27

NUT, U FLANGE

95604-06200-00

Unavailable

28

RELAY ASSY

5VK-81950-33-00

Unavailable

29

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

30

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

31

RELAY ASSY

5DM-81950-01-00

Unavailable

32

RELAY ASSY

5DM-81950-01-00

Unavailable

33

RELAY ASSY

1TP-81950-00-00

Unavailable

34

HOLDER,RELAY

5EA-81952-00-00

Unavailable

35

STOP SWITCH ASSY

1MC-82530-02-00

Unavailable

36

STAY, STOP SWITCH

1MC-2144G-00-00

Unavailable

37

SCREW, BIND

98902-05008-00

Unavailable

38

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

39

SCREW, TAPPING

97702-40025-00

Unavailable

40

WASHER, PLATE

90201-04030-00

Unavailable

41

NUT, ADJUSTING

4B4-84334-00-00

Unavailable

42

CLAMP(2TV)

90464-10112-00

Unavailable

43

CLAMP(4KJ)

90464-20213-00

Unavailable

44

SWITCH, SIDE STAND

1MC-82566-02-00

Unavailable

45

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

46

TERMINAL COMP.

3P6-8254B-00-00

Unavailable

47

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

48

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

49

NUT, FLANGE

95702-05500-00

Unavailable

50

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

51

WIRE, LEAD

2BC-82507-00-00

Unavailable

52

. FUSE (10A)

67F-82151-40-00

Unavailable

53

FUSE

5JJ-82151-60-00

Unavailable

54

BAND

1UA-82591-00-00

Unavailable

55

RECTIFIER ASSY

5P5-81970-00-00

Unavailable

56

HORN

B88-83371-00-00

Unavailable

57

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

58

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

59

NUT, U

95617-05100-00

Unavailable

60

WASHER, PLATE

90201-05043-00

Unavailable

61

BAND

1UA-82591-00-00

Unavailable

62

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

63

NUT, FLANGE

95702-05500-00

Unavailable

64

BRACKET, REFLECTOR 1

3P6-85112-10-00

Unavailable

65

BRACKET, REFLECTOR 2

3P6-85122-01-00

Unavailable

66

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

67

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

68

NUT, FLANGE

95702-05500-00

Unavailable

69

BRACKET, LICENSE

B88-84751-00-00

Unavailable

70

WASHER, PLATE

90201-06380-00

Unavailable

71

NUT, SELF-LOCKING

95617-06100-00

Unavailable

72

CLAMP

90464-25004-00

Unavailable
