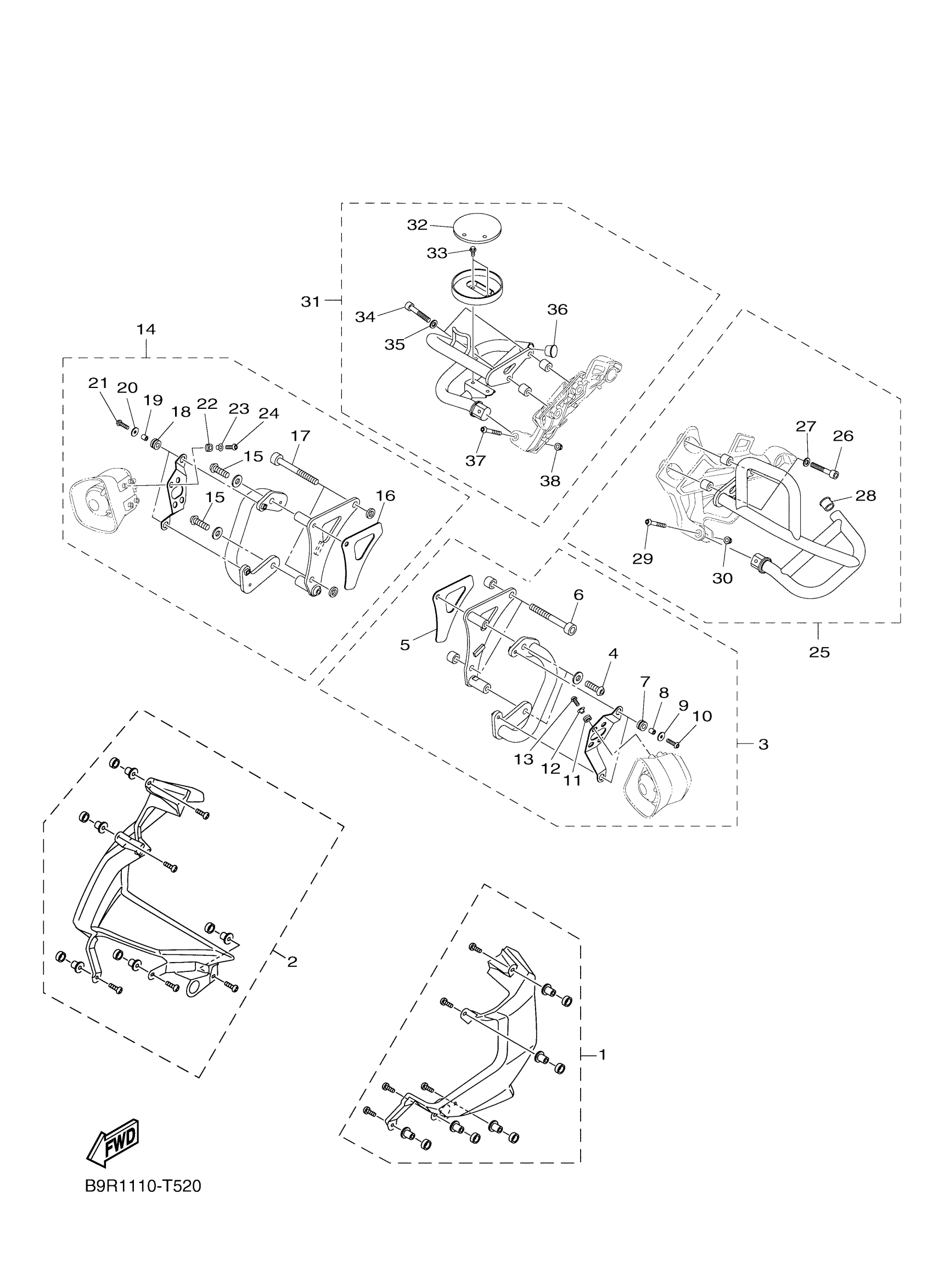

Yamaha FJR13PPW (FJR1300 POLICE) B9R6 2023 ALTERNATE 3 FOR CHASSIS Diagram

#

Description
Price

1

LEG SHIELD SET 1

2BC-W0745-10-UJ

$252.71

2

LEG SHIELD SET 2

2BC-W0745-20-UJ

$379.88

3

ENGINEGUARD SET

2BC-W0741-00-00

$792.99

4

BOLT, BUTTON

92017-10030-00

$4.70

5

DAMPER 1

2BC-28415-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

91314-12080-00

Unavailable

7

GROMMET

90480-14011-00

$5.15

8

COLLAR

90387-06131-00

$5.81

9

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

10

BOLT, BUTTON

92017-06030-00

$6.22

11

GROMMET (2T4)

90480-12237-00

$1.82

12

COLLAR(50M)

90387-087L0-00

$5.76

13

BOLT, BUTTON

92017-06020-00

$2.38

14

ENGINEGUARD SET

2BC-W0741-10-00

$792.99

15

BOLT, BUTTON

92017-10030-00

$4.70

16

DAMPER 2

2BC-28416-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

91314-12065-00

Unavailable

18

GROMMET

90480-14011-00

$5.15

19

COLLAR

90387-06131-00

$5.81

20

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

21

BOLT, BUTTON

92017-06030-00

$6.22

22

GROMMET (2T4)

90480-12237-00

$1.82

23

COLLAR(50M)

90387-087L0-00

$5.76

24

BOLT, BUTTON

92017-06020-00

$2.38

25

ENGINEGUARD SET

2BC-W0741-30-00

Unavailable

26

BOLT, SOCKET

91314-08050-00

Unavailable

27

WASHER, PLATE

90201-092U3-00

Unavailable

28

PLUG (5R2)

90338-18122-00

Unavailable

29

BOLT, BUTTON HEAD

92014-06040-00

Unavailable

30

NUT, U FLANGE

95604-06200-00

Unavailable

31

ENGINEGUARD SET

2BC-W0741-40-00

Unavailable

32

DAMPER 4

5P5-28435-00-00

Unavailable

33

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

34

BOLT, SOCKET

91314-08050-00

Unavailable

35

WASHER, PLATE

90201-092U3-00

Unavailable

36

PLUG (5R2)

90338-18122-00

Unavailable

37

BOLT, BUTTON HEAD

92014-06040-00

Unavailable

38

NUT, U FLANGE

95604-06200-00

Unavailable
