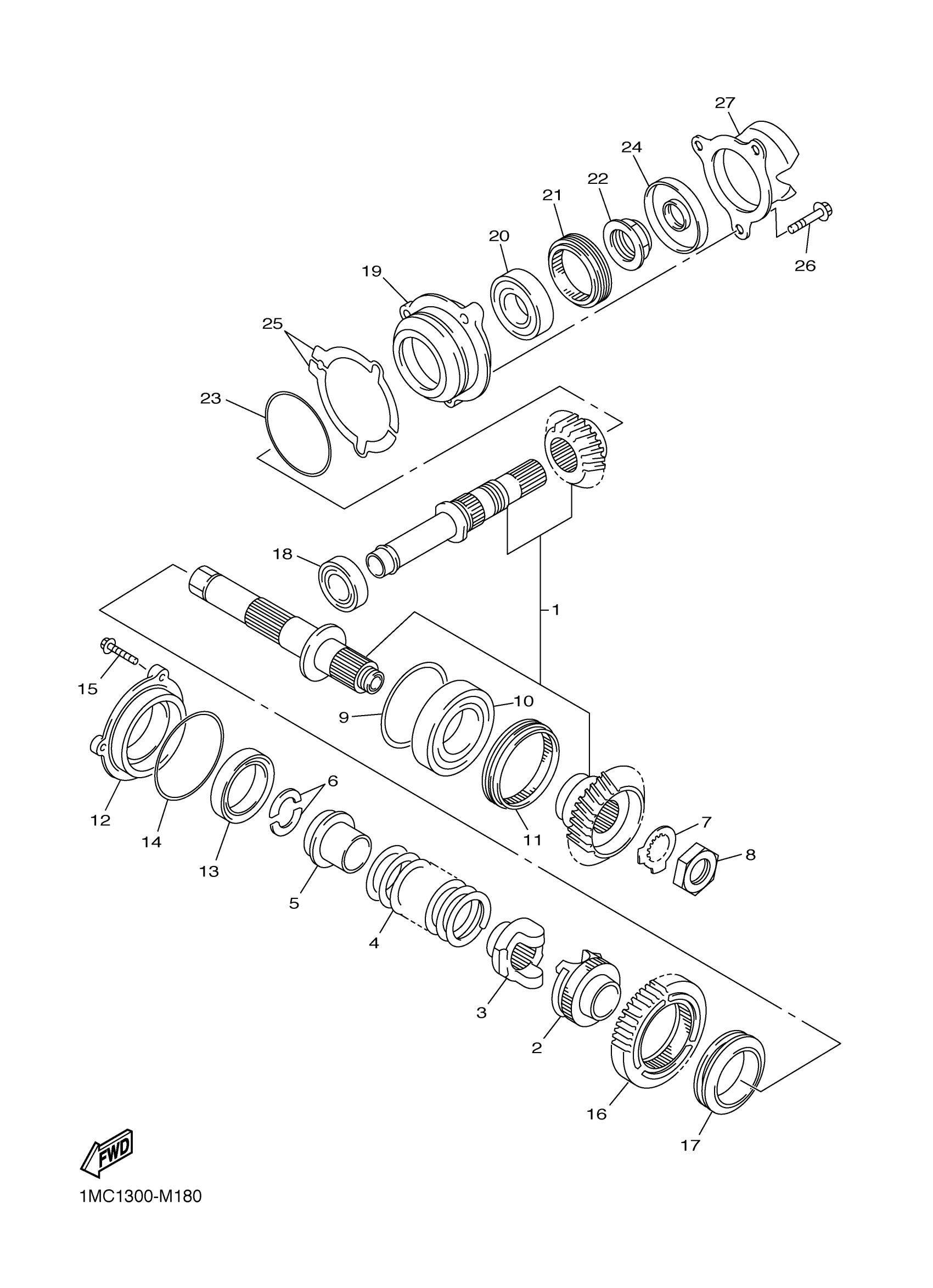

Yamaha FJR13PMW (FJR1300 POLICE) B9R4 2021 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GEAR COMP.

5JW-W1751-00-00

Unavailable

2

CAM, DRIVE

5JW-17526-00-00

Unavailable

3

CAM, DRIVEN

5JW-17527-00-00

Unavailable

4

SPRING, TRANSMISSI

3P6-17493-01-00

Unavailable

5

HOLDER

5JW-17524-00-00

Unavailable

6

WASHER(1FK)

90209-21281-00

$24.99

7

WASHER, LOCK

90215-27003-00

Unavailable

8

NUT

90179-22030-00

$23.99

9

SHIM, PINION

4X7-17531-00-15

$3.54

9

SHIM, PINION

4X7-17531-00-30

$4.94

9

SHIM, PINION

4X7-17531-00-40

$4.99

9

SHIM, PINION

4X7-17531-00-50

$4.78

10

BRG,R-B 6209RSH2-C2 85MM 412G

93306-20901-00

Unavailable

11

NUT (4X7)

90179-88336-00

Unavailable

12

HOUSING, BEARING

1MC-17521-00-00

Unavailable

13

BEARING

93306-90901-00

Unavailable

14

O-RING(4ES)

93210-84724-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

Unavailable

16

GEAR, MIDDLE DRIVEN

B88-17583-00-00

Unavailable

17

COLLAR

90387-53001-00

Unavailable

18

BEARING(1FF)

93306-00519-00

Unavailable

19

HOUSING, BEARING

5JW-17551-00-00

Unavailable

20

BEARING(1YW)

93306-20636-00

Unavailable

21

NUT

90179-68001-00

Unavailable

22

NUT

90179-28005-00

Unavailable

23

O-RING (722)

93210-76546-00

Unavailable

24

OIL SEAL

93102-25004-00

Unavailable

25

SHIM, PINION

5JW-17531-00-00

Unavailable

25

SHIM, PINION

5JW-17531-10-00

Unavailable

25

SHIM, PINION

5JW-17531-20-00

Unavailable

25

SHIM, PINION

5JW-17531-30-00

Unavailable

25

SHIM, PINION

5JW-17531-40-00

Unavailable

25

SHIM, PINION

5JW-17531-50-00

Unavailable

26

BOLT, FLANGE

95817-08035-00

Unavailable

27

CAP, HOUSING

1MC-17538-00-00

Unavailable
