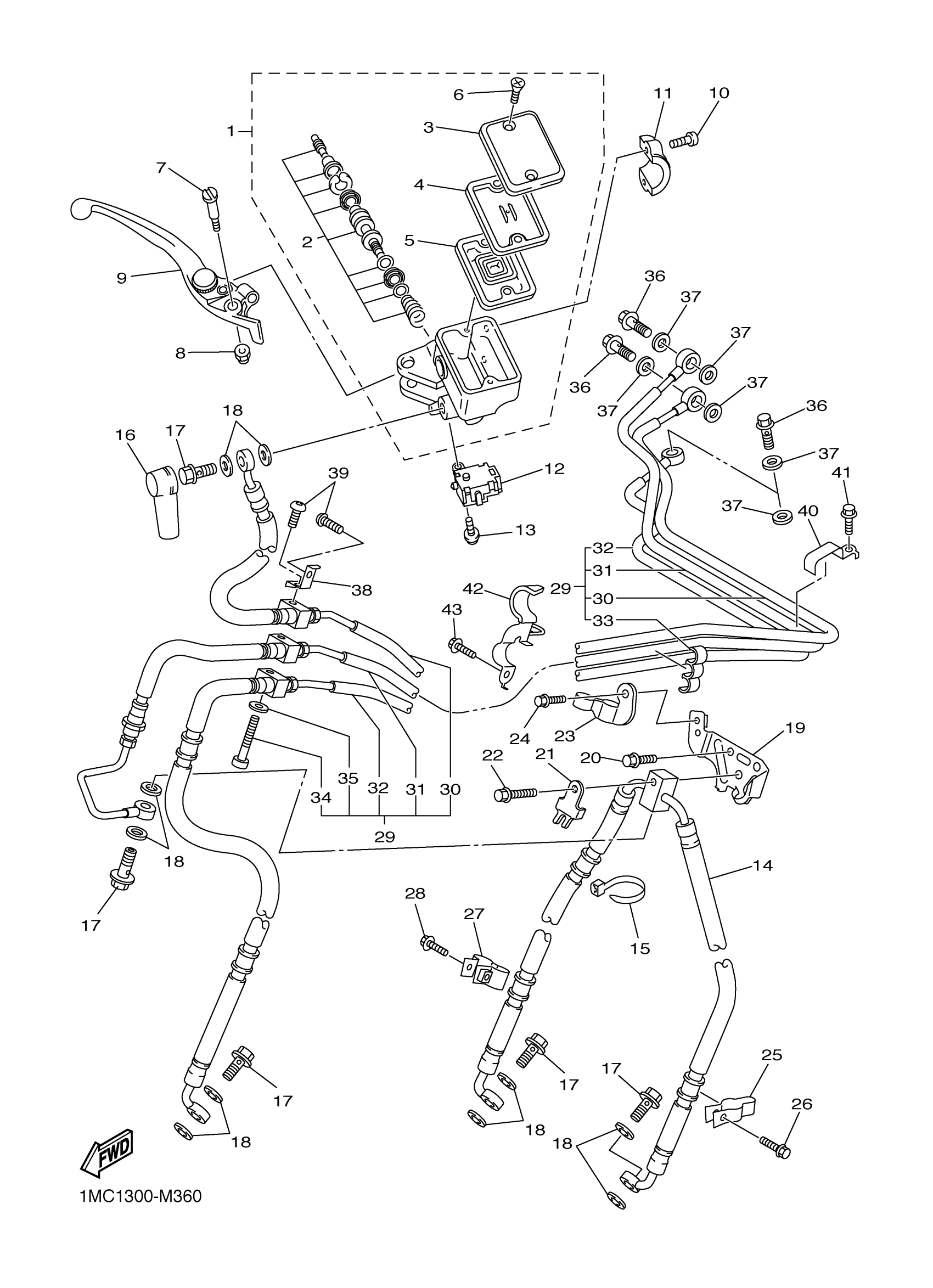

Yamaha FJR13PMW (FJR1300 POLICE) B9R4 2021 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

1MC-2580A-00-00

$183.99

2

CYLINDER KIT, MASTER

1MC-25807-00-00

$33.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

2D2-25867-00-00

$22.99

12

FRONT STOP SWITCH ASSY

1MC-83980-11-00

Unavailable

13

SCREW, PAN HEAD WITH WASHER

97602-04214-00

$5.60

14

HOSE, BRAKE 1

3P6-25872-20-00

Unavailable

15

BAND

1UA-82591-00-00

$4.78

16

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

17

BOLT, UNION

90401-10020-00

Unavailable

18

GASKET

90430-10005-00

Unavailable

19

HOLDER, BRAKE HOSE

3P6-25886-00-00

Unavailable

20

BOLT, FLANGE

95022-06010-00

Unavailable

21

SLEEVE, CALIPER

5VS-25843-00-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

HOLDER, BRAKE HOSE 4

3P6-2587A-01-00

Unavailable

24

BOLT, FLANGE

95022-06010-00

Unavailable

25

HOLDER, BRAKE HOSE

3P6-25887-00-00

Unavailable

26

BOLT, FLANGE

95022-06020-00

Unavailable

27

HOLDER, BRAKE HOSE 2

3P6-25876-00-00

Unavailable

28

BOLT, FLANGE

95022-06020-00

Unavailable

29

BRAKE HOSE ASSY

5P5-2584A-00-00

Unavailable

30

HOSE, BRAKE

5P5-2584B-00-00

Unavailable

31

HOSE, BRAKE

3P6-2584C-11-00

Unavailable

32

HOSE, BRAKE

3P6-2584D-11-00

Unavailable

33

CLAMP

90464-07003-00

Unavailable

34

BOLT,SOCKET

91317-06040-00

Unavailable

35

WASHER(6TA)

92907-06600-00

Unavailable

36

BOLT, UNION

90401-10020-00

Unavailable

37

GASKET

90430-10005-00

Unavailable

38

HOLDER, BRAKE HOSE 1

3P6-25875-10-00

Unavailable

39

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

40

HOLDER 2

3P6-2639F-00-00

Unavailable

41

BOLT, FLANGE

95022-06010-00

Unavailable

42

HOLDER

3P6-26393-00-00

Unavailable

43

BOLT, FLANGE

95022-06010-00

Unavailable
